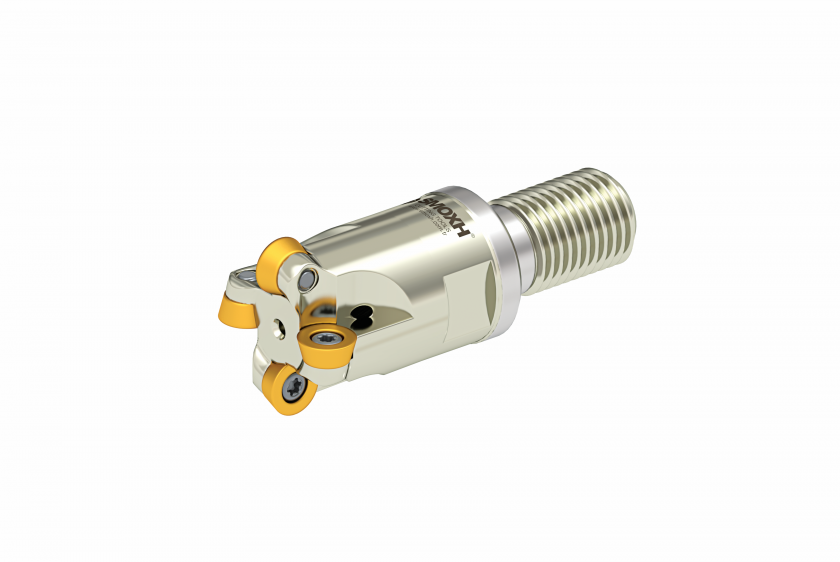

Modular Milling Tools - MT RD.. 0702.. / 0803.. / 1003.. / 12T3..
Home
Products
Milling Tools
Modular Mills
Modular Milling Tools
MT RD.. 0702.. / 0803.. / 1003.. / 12T3..
Modular Milling Tools
Technical
Specifications
Ordering Code
Item Designation
Dimensions
Master Insert
Barcode

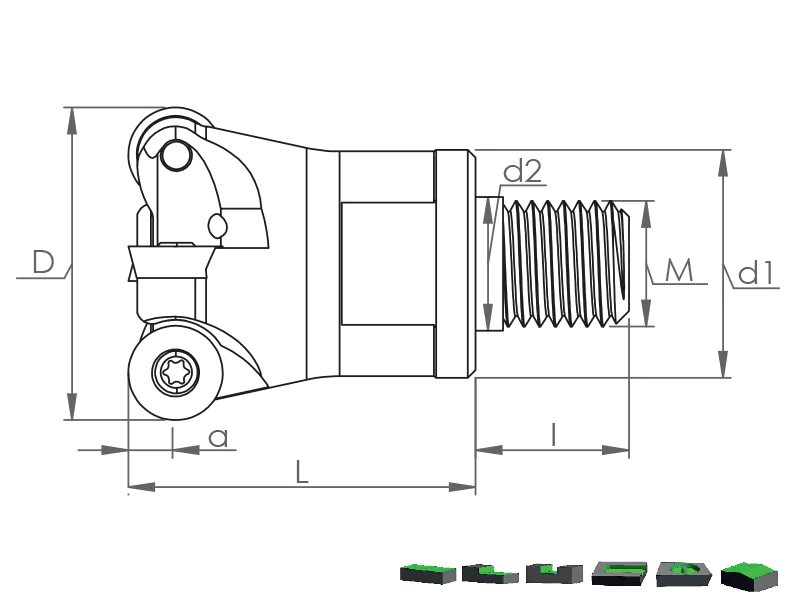

MT RD.. 0702.. / 0803.. / 1003.. / 12T3..
DiamondBrand
D
Z
d1
d2
L
I
M
a
SM56602
MT RD0702 D16 M08 L25 Z02-H
ISO
16
2
15
8.5
25
17
8
3.5
RDKW 0702..
8681408056602
SM56619
MT RD0702 D20 M10 L30 Z02-H
ISO
20
3
18
10.5
30
19
10
3.5
RDKW 0702..
8681408056619
SM56626
MT RD0702 D25 M12 L35 Z04-H
ISO
25
4
21
12.5
35
23
12
3.5
RDKW 0702..
8681408056626
SM25783
MT RD0803 D16 M08 L25 Z02-H
ISO
16
2
15
8.5
25
17
8
4
RD.. 0803..
8681408025783
SM39544
MT RD0803 D20 M10 L30 Z02-H
ISO
20
2
18
10.5
30
19
10
4
RD.. 0803..
8681408039544
SM23970
MT RD0803 D20 M10 L30 Z03-H
ISO
20
3
18
10.5
30
19
10
4
RD.. 0803..
8681408023970
SM39551
MT RD0803 D25 M12 L35 Z03-H
ISO
25
3
21
12.5
35
23
12
4
RD.. 0803..
8681408039551
SM23987
MT RD0803 D25 M12 L35 Z04-H
ISO
25
4
21
12.5
35
23
12
4
RD.. 0803..
8681408023987
SM39537
MT RD0803 D35 M16 L43 Z04-H
ISO
35
4
29
17
43
23
16
4
RD.. 0803..
8681408039537
SM15654
MT RD1003 D20 M10 L30 Z02-H
ISO
20
2
18
10.5
30
19
10
5
RD.. 1003..
8681408015654
SM15661
MT RD1003 D25 M12 L35 Z03-H
ISO
25
3
21
12.5
35
23
12
5
RD.. 1003..
8681408015661
SM15678
MT RD1003 D30 M16 L43 Z03-H
ISO
30
3
29
17
43
23
16
5
RD.. 1003..
8681408015678
SM15685
MT RD1003 D32 M16 L43 Z04-H
ISO
32
4
29
17
43
23
16
5
RD.. 1003..
8681408015685
SM15692
MT RD1003 D35 M16 L43 Z04-H
ISO
35
4
29
17
43
23
16
5
RD.. 1003..
8681408015692
SM15647
MT RD1003 D40 M16 L43 Z04-H
ISO
40
4
29
17
43
23
16
5
RD.. 1003..
8681408015647
SM15708
MT RD1003 D42 M16 L43 Z05-H
ISO
42
5
29
17
43
23
16
5
RD.. 1003..
8681408015708
SM15715
MT RD12T3 D24 M12 L35 Z02-H
ISO
24
2
21
12.5
35
23
12
6
RD.. 12T3..
8681408015715
SM15722
MT RD12T3 D25 M12 L35 Z02-H
ISO
25
2
21
12.5
35
23
12
6
RD.. 12T3..
8681408015722
SM15739
MT RD12T3 D32 M16 L43 Z03-H
ISO
32
3
29
17
43
23
16
6
RD.. 12T3..
8681408015739
SM15746
MT RD12T3 D35 M16 L43 Z03-H
ISO
35
3
29
17
43
23
16
6
RD.. 12T3..
8681408015746
SM15753
MT RD12T3 D40 M16 L43 Z04-H
ISO
40
4
29
17
43
23
16
6
RD.. 12T3..
8681408015753
SM15760
MT RD12T3 D42 M16 L43 Z04-H
ISO
42
4
29
17
43
23
16
6
RD.. 12T3..
8681408015760
