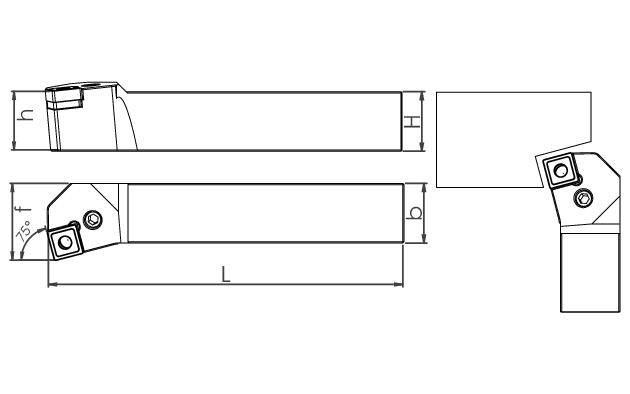

P System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	PSKNR/L (75)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM26025	PSKNR 2020 K12	ISO	75°	R	20	20	125	26	0.43	SNM.1204..	8681408026025
SM26018	PSKNL 2020 K12	ISO	75°	L	20	20	125	26	0.43	SNM.1204..	8681408026018

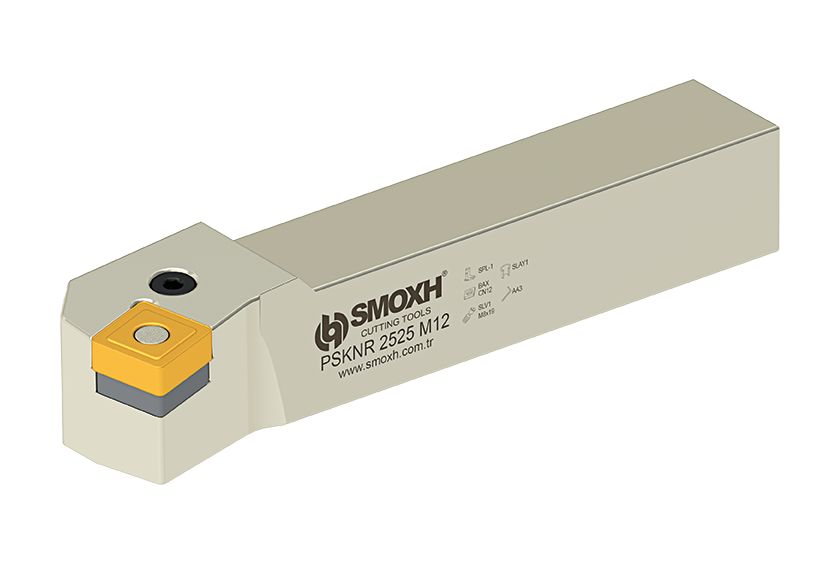

SM22386	PSKNR 2525 M12	ISO	75°	R	25	25	150	32	0.79	SNM.1204..	8681408022386
SM22393	PSKNL 2525 M12	ISO	75°	L	25	25	150	32	0.79	SNM.1204..	8681408022393
SM26001	PSKNR 3232 P12	ISO	75°	R	32	32	170	38	1.33	SNM.1204..	8681408026001
SM25998	PSKNL 3232 P12	ISO	75°	L	32	32	170	38	1.33	SNM.1204..	8681408025998
SM22461	PSKNR 2525 M15	ISO	75°	R	25	25	150	32	0.79	SNM.1506..	8681408022461
SM22478	PSKNL 2525 M15	ISO	75°	L	25	25	150	32	0.79	SNM.1506..	8681408022478
SM25981	PSKNR 3232 P15	ISO	75°	R	32	32	170	38	1.33	SNM.1506..	8681408025981
SM25974	PSKNL 3232 P15	ISO	75°	L	32	32	170	38	1.33	SNM.1506..	8681408025974
SM37564	PSKNR 3232 P19	ISO	75°	R	32	32	170	38	1.33	SNM.1906..	8681408037564
SM37557	PSKNL 3232 P19	ISO	75°	L	32	32	170	38	1.33	SNM.1906..	8681408037557
SM37571	PSKNR 4040 S19	ISO	75°	R	40	40	250	47	3	SNM.1906..	8681408037571
SM37540	PSKNL 4040 S19	ISO	75°	L	40	40	250	47	3	SNM.1906..	8681408037540

P System External Diameter Turning Tool - PSKNR/L (75)
