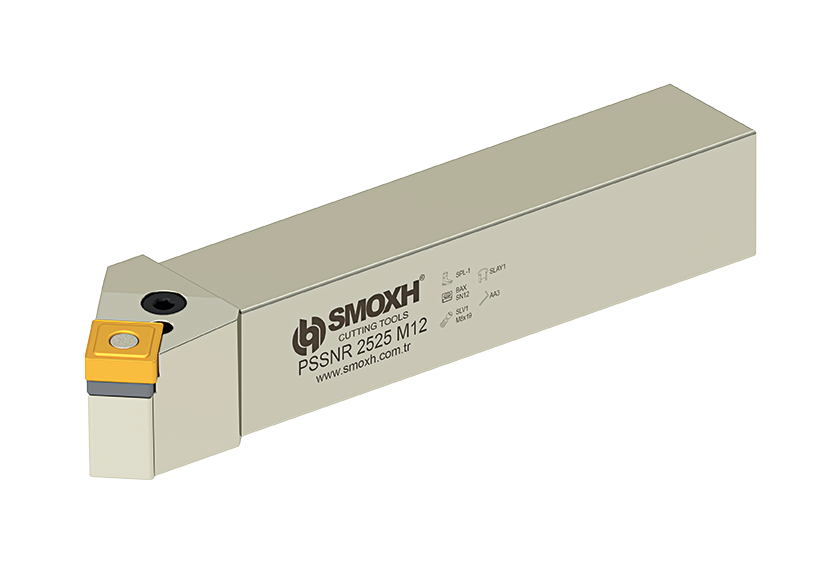

P System External Diameter Turning Tool

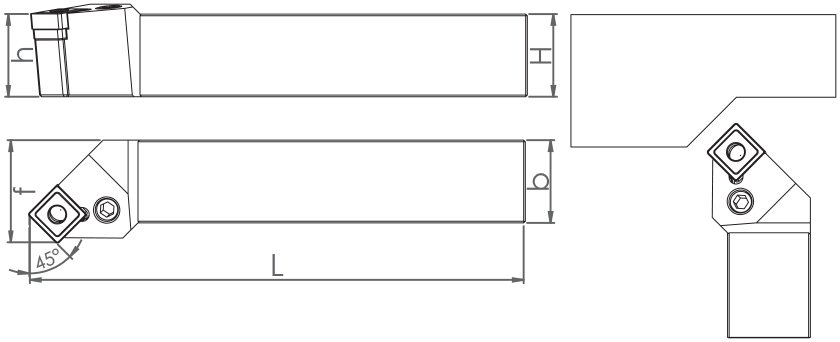

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	PSSNR/L (45)	Insert Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM01855	PSSNR 2020 K12	ISO	45°	R	20	20	125	26	0.43	SNM.1204..	8681408001855
SM01862	PSSNL 2020 K12	ISO	45°	L	20	20	125	26	0.43	SNM.1204..	8681408001862
SM01886	PSSNR 2525 M12	ISO	45°	R	25	25	150	32	0.79	SNM.1204..	8681408001886
SM01893	PSSNL 2525 M12	ISO	45°	L	25	25	150	32	0.79	SNM.1204..	8681408001893
SM01916	PSSNR 3232 P12	ISO	45°	R	32	32	170	38	1.33	SNM.1204..	8681408001916
SM01923	PSSNL 3232 P12	ISO	45°	L	32	32	170	38	1.33	SNM.1204..	8681408001923
SM49215	PSSNR 2525 M15	ISO	45°	R	25	25	150	32	0.79	SNM.1506..	8681408049215
SM49222	PSSNL 2525 M15	ISO	45°	L	25	25	150	32	0.79	SNM.1506..	8681408049222
SM01954	PSSNR 3232 P15	ISO	45°	R	32	32	170	38	1.33	SNM.1506..	8681408001954
SM01961	PSSNL 3232 P15	ISO	45°	L	32	32	170	38	1.33	SNM.1506..	8681408001961
SM34136	PSSNR 3232 P19	ISO	45°	R	32	32	170	38	1.33	SNM.1906..	8681408034136
SM34143	PSSNL 3232 P19	ISO	45°	L	32	32	170	38	1.33	SNM.1906..	8681408034143
SM34150	PSSNR 4040 S19	ISO	45°	R	40	40	250	47	3	SNM.1906..	8681408034150
SM34167	PSSNL 4040 S19	ISO	45°	L	40	40	250	47	3	SNM.1906..	8681408034167

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

✅ Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

✅ Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

✅ Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

✅ Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

✅ Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

✅ Negative Rake Angle Design
Ensures durability under high cutting forces.

P System External Diameter Turning Tool - PSSNR/L (45)
