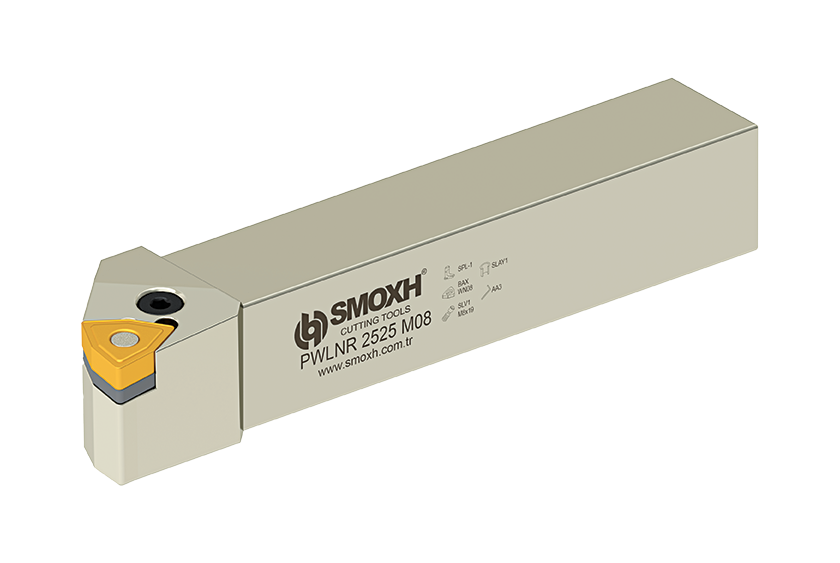

P System External Diameter Turning Tool - PWLNR/L (95)

PWLNR/L (95)

P System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

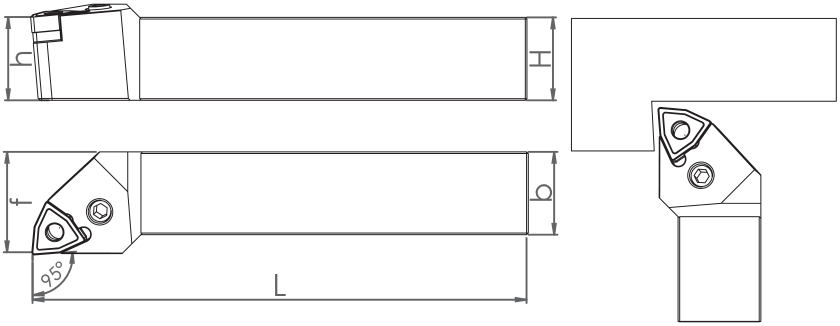

Ordering Code Item Designation Dimensions Master Insert Barcode
  PWLNR/L (95) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
P System External Diameter Turning Tool
SM01985 PWLNR 2020 K08 ISO 95° R 20 20 125 26 0.43 WNM.0804.. 8681408001985
SM01992 PWLNL 2020 K08 ISO 95° L 20 20 125 26 0.43 WNM.0804.. 8681408001992
SM02005 PWLNR 2525 M08 ISO 95° R 25 25 150 32 0.79 WNM.0804.. 8681408002005
SM02012 PWLNL 2525 M08 ISO 95° L 25 25 150 32 0.79 WNM.0804.. 8681408002012
SM02029 PWLNR 3232 P08 ISO 95° R 32 32 170 38 1.33 WNM.0804.. 8681408002029
SM02036 PWLNL 3232 P08 ISO 95° L 32 32 170 38 1.33 WNM.0804.. 8681408002036
SM25929 PWLNR 4040 S08 ISO 95° R 40 40 250 47 3 WNM.0804.. 8681408025929
SM25912 PWLNL 4040 S08 ISO 95° L 40 40 250 47 3 WNM.0804.. 8681408025912
