Advantages of Face Milling Heads
High Material Removal Capacity
Large cutting diameters allow rapid removal of material from wide surfaces—reducing machining
time and increasing productivity.
Superior Surface Finish
Optimal cutter placement and effective lead angles deliver smooth surface finishes, minimizing the
need for secondary operations such as grinding.
Replaceable Insert System
Indexable inserts are easy to replace, extending tool life and reducing downtime.
Offers flexible use with insert options tailored to various materials.
Stable and Vibration-Free Machining
Rigid and heavy-duty construction minimizes vibration during operation, improving tool and machine
lifespan while enhancing surface accuracy.
Wide Material Compatibility
Performs reliably on cast iron, alloy steel, stainless steel, aluminum, and more.
Suitable for a wide range of industries with the right cutting parameters.
Modular Design & Flexibility
Different body and insert combinations can be configured based on tool diameter and workpiece size.
Enables cost-efficiency by using the same head with various insert types.
Industrial Compatibility & Automation Ready
Fully compatible with CNC machining centers and adaptable to automatic tool change systems for
seamless integration into automated production lines.
Ordering Code | Item Designation | Dimensions | Master Insert | Barcode | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TK45 SN.. 1206.. |
|
Direction | Diamond Brand |

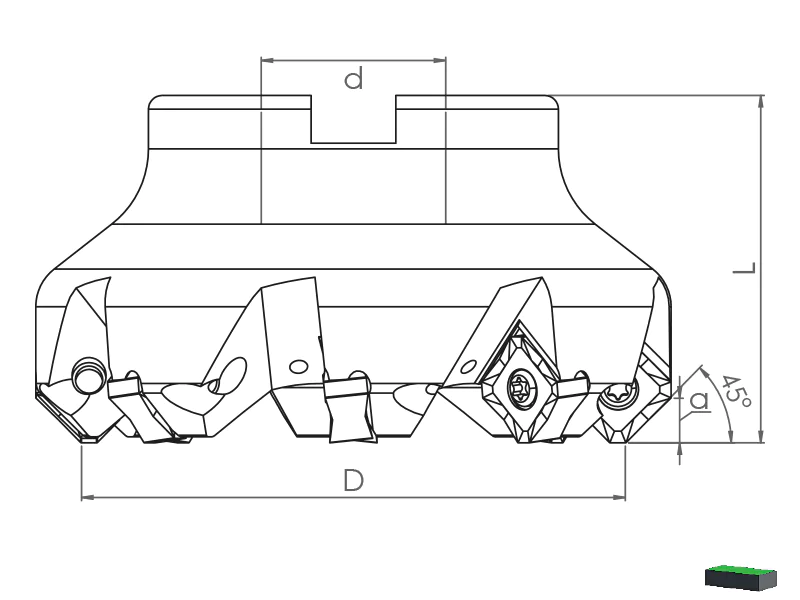

D | Z | d | L | a | Weight (Kg) |
![]() |
Ordering Code | Item Designation | Dimensions | Master Insert | Barcode | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TK45 SN.. 1206.. |
|
Direction | Diamond Brand |
D | Z | d | L | a | Weight (Kg) |
![]() |
|||
SM29071 | TK45 SN12 D50 A22 Z05-H | R | ISO | 50 | 5 | 22 | 40 | 6 | 0.51 | SN.. 1206.. | 8681408029071 | ||
SM14824 | TK45 SN12 D50 A22 Z05 | R | ISO | 50 | 5 | 22 | 40 | 6 | 0.51 | SN.. 1206.. | 8681408014824 | ||
SM49628 | TK45L SN12 D50 A22 Z05-H | L | ISO | 50 | 5 | 22 | 40 | 6 | 0.51 | SN.. 1206.. | 8681408049628 | ||

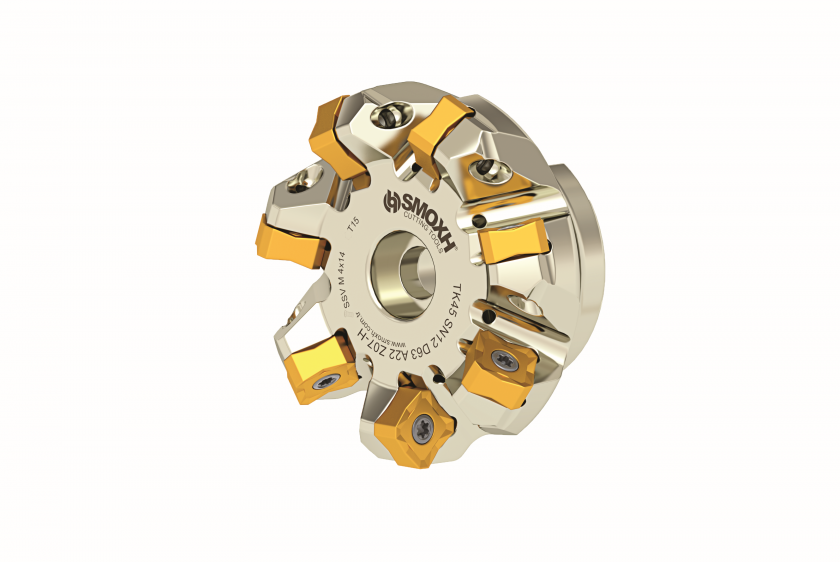

SM29064 | TK45 SN12 D63 A22 Z07-H | R | ISO | 63 | 7 | 22 | 40 | 6 | 0.74 | SN.. 1206.. | 8681408029064 | ||
SM14831 | TK45 SN12 D63 A22 Z07 | R | ISO | 63 | 7 | 22 | 40 | 6 | 0.74 | SN.. 1206.. | 8681408014831 | ||
SM49635 | TK45L SN12 D63 A22 Z07-H | L | ISO | 63 | 7 | 22 | 40 | 6 | 0.74 | SN.. 1206.. | 8681408049635 | ||
SM29040 | TK45 SN12 D80 A27 Z08-H | R | ISO | 80 | 8 | 27 | 50 | 6 | 1.57 | SN.. 1206.. | 8681408029040 | ||
SM14848 | TK45 SN12 D80 A27 Z08 | R | ISO | 80 | 8 | 27 | 50 | 6 | 1.57 | SN.. 1206.. | 8681408014848 | ||
SM49642 | TK45L SN12 D80 A27 Z08-H | L | ISO | 80 | 8 | 27 | 50 | 6 | 1.57 | SN.. 1206.. | 8681408049642 | ||
SM29033 | TK45 SN12 D100 A32 Z10-H | R | ISO | 100 | 10 | 32 | 50 | 6 | 2.12 | SN.. 1206.. | 8681408029033 | ||
SM14855 | TK45 SN12 D100 A32 Z10 | R | ISO | 100 | 10 | 32 | 50 | 6 | 2.12 | SN.. 1206.. | 8681408014855 | ||
SM14862 | TK45 SN12 D125 B40 Z11 | R | ISO | 125 | 11 | 40 | 63 | 6 | 3.49 | SN.. 1206.. | 8681408014862 | ||
SM14879 | TK45 SN12 D160 C40 Z12 | R | ISO | 160 | 12 | 40 | 63 | 6 | 5.45 | SN.. 1206.. | 8681408014879 | ||
SM25226 | TK45 SN12 D200 C60 Z14 | R | ISO | 200 | 14 | 60 | 63 | 6 | 6.7 | SN.. 1206.. | 8681408025226 | ||
SM38424 | TK45 SN12 D315 D60 Z20 | R | ISO | 315 | 20 | 60 | 63 | 6 | SN.. 1206.. | 8681408038424 |
