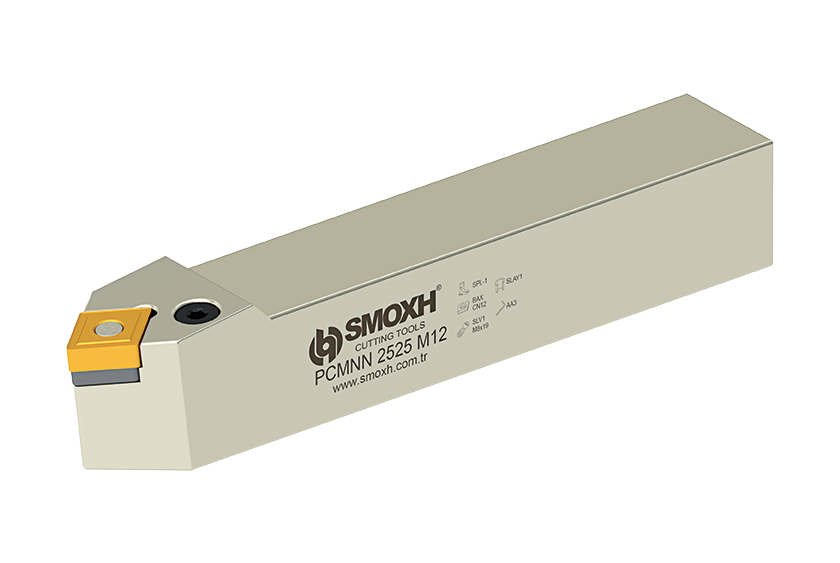

P System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

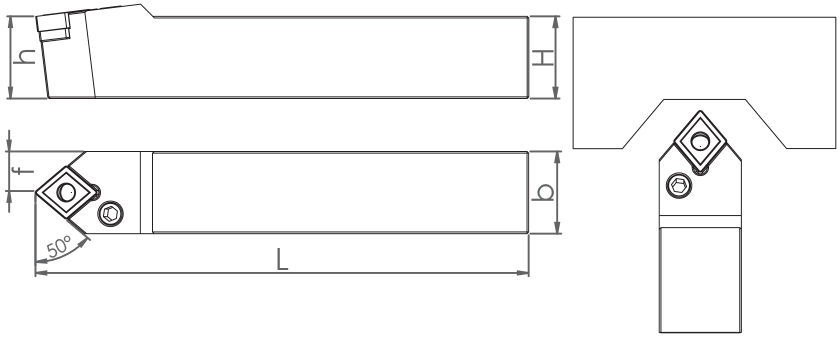

	PCMNN (50)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM01633	PCMNN 2020 K12	ISO	50°	N	20	20	125	10	0.43	CNM.1204..	8681408001633
SM01664	PCMNN 2525 M12	ISO	50°	N	25	25	150	12.5	0.79	CNM.1204..	8681408001664
SM01695	PCMNN 3232 P12	ISO	50°	N	32	32	170	16	1.33	CNM.1204..	8681408001695
SM01725	PCMNN 2525 M16	ISO	50°	N	25	25	150	12.5	0.79	CNM.1606..	8681408001725
SM01756	PCMNN 3232 P16	ISO	50°	N	32	32	170	16	1.33	CNM.1606..	8681408001756
SM01787	PCMNN 3232 P19	ISO	50°	N	32	32	170	16	1.33	CNM.1909..	8681408001787
SM34129	PCMNN 4040 S19	ISO	50°	N	40	40	250	20	3	CNM.1909..	8681408034129

P System External Diameter Turning Tool - PCMNN (50)
