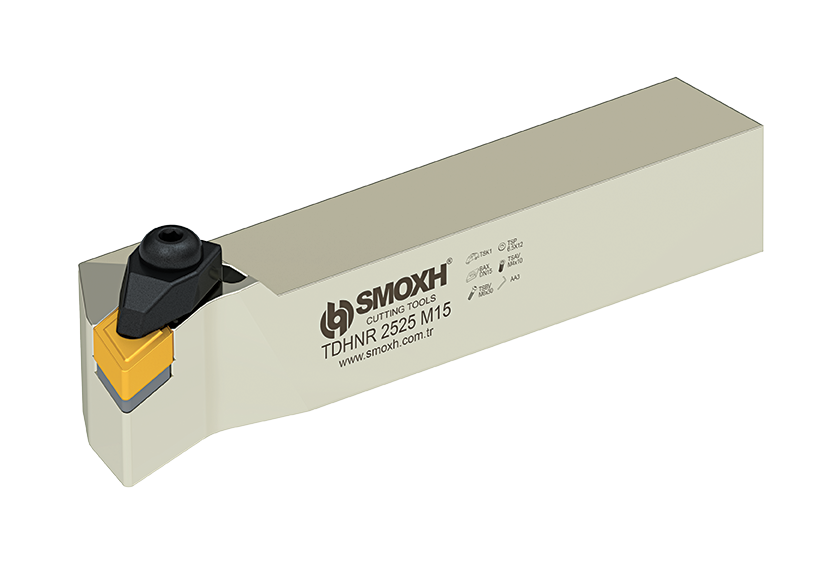

T System External Diameter Turning Tool - TDHNR/L (107.5)

TDHNR/L (107.5)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

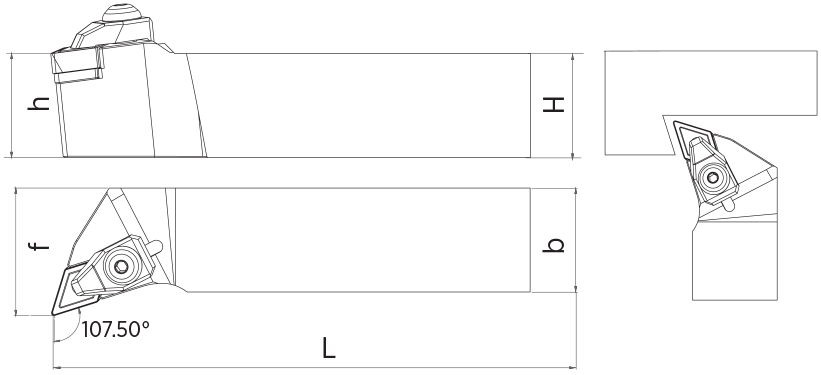

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TDHNR/L (107.5) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM38783 TDHNR 2020 K15 ISO 107.5° R 20 20 125 26 0.46 DNM.1506.. 8681408038783
SM38776 TDHNL 2020 K15 ISO 107.5° L 32 32 170 38 0.46 DNM.1506.. 8681408038776
SM26544 TDHNR 2525 M15 ISO 107.5° R 25 25 150 32 0.79 DNM.1506.. 8681408026544
SM26926 TDHNL 2525 M15 ISO 107.5° L 20 20 125 26 0.79 DNM.1506.. 8681408026926
SM26919 TDHNR 3232 P15 ISO 107.5° R 32 32 170 38 1.38 DNM.1506.. 8681408026919
SM26933 TDHNL 3232 P15 ISO 107.5° L 25 25 150 32 1.38 DNM.1506.. 8681408026933
SM34044 TDHNR 2525 M1504 ISO 107.5° R 25 25 150 32 0.79 DNM.1504.. 8681408034044
SM34075 TDHNL 2525 M1504 ISO 107.5° L 32 32 170 38 0.79 DNM.1504.. 8681408034075
SM34051 TDHNR 3232 P1504 ISO 107.5° R 32 32 170 38 1.38 DNM.1504.. 8681408034051
SM34068 TDHNL 3232 P1504 ISO 107.5° L 25 25 150 32 1.38 DNM.1504.. 8681408034068
