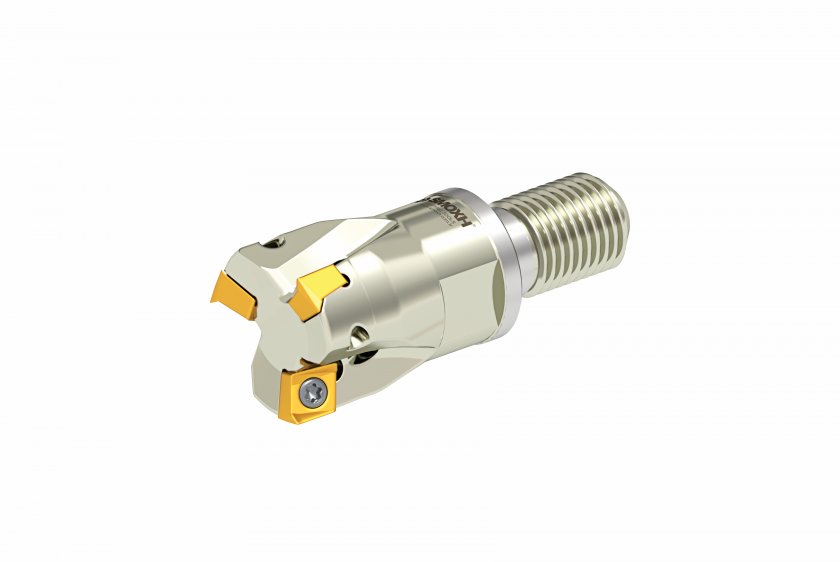

Modular Milling Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

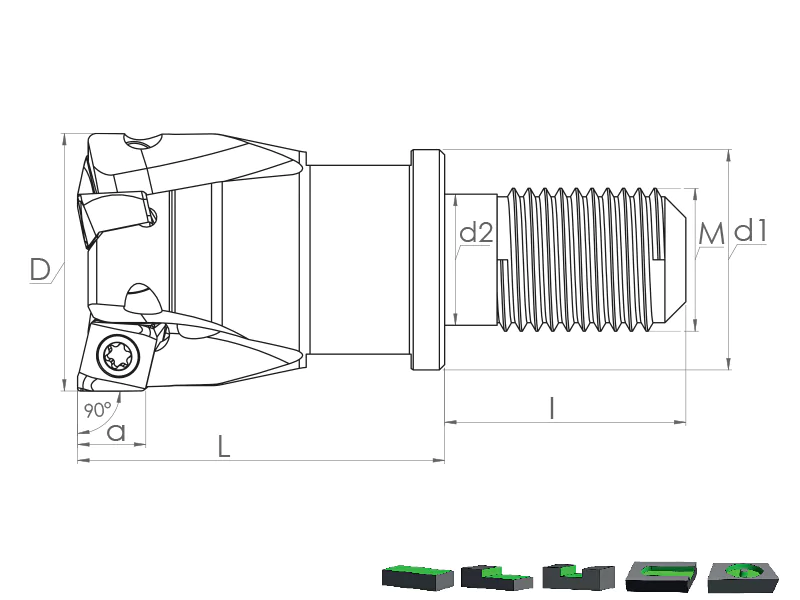

	MT90 4NKT 0603..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM53748	MT90 4N06 D16 M08 L25 Z02-H	TGTC	16	2	15	8.5	25	17	8	6	0.061	4NKT 0603..	8681408053748
SM53762	MT90 4N06 D20 M10 L30 Z03-H	TGTC	20	3	18	10.5	30	19	10	6	0.082	4NKT 0603..	8681408053762
SM53786	MT90 4N06 D25 M12 L35 Z03-H	TGTC	25	3	21	12.5	35	23	12	6	0.125	4NKT 0603..	8681408053786
SM53809	MT90 4N06 D32 M16 L43 Z04-H	TGTC	32	4	29	17	43	23	16	6	0.249	4NKT 0603..	8681408053809
SM53816	MT90 4N06 D35 M16 L43 Z05-H	TGTC	35	5	29	17	43	23	16	6	0.255	4NKT 0603..	8681408053816
SM53823	MT90 4N06 D40 M16 L43 Z05-H	TGTC	40	5	29	17	43	23	16	6	0.316	4NKT 0603..	8681408053823
SM53830	MT90 4N06 D42 M16 L43 Z05-H	TGTC	42	5	29	17	43	23	16	6	0.335	4NKT 0603..	8681408053830

Modular Milling Tools - MT90 4NKT 0603..
