P System External Diameter Turning Tool - PCLNR/L (95)

PCLNR/L (95)

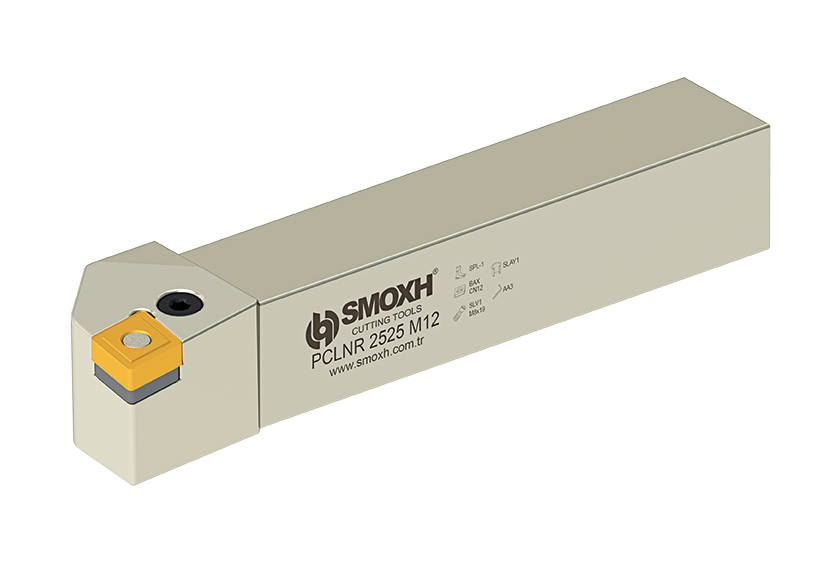

P System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

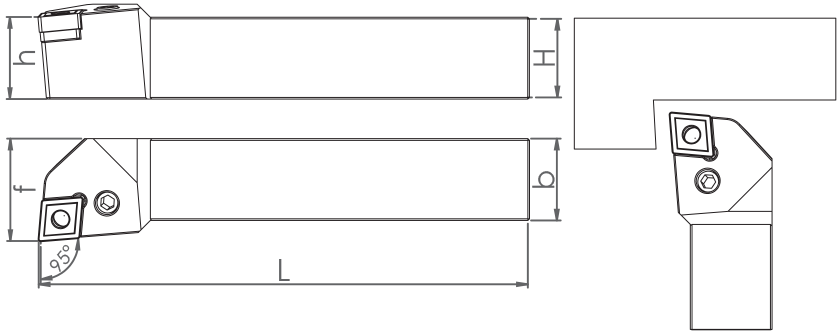

Ordering Code Item Designation Dimensions Master Insert Barcode
  PCLNR/L (95) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
P System External Diameter Turning Tool
SM01619 PCLNR 2020 K12 ISO 95° R 20 20 125 26 0.43 CNM.1204.. 8681408001619
SM01626 PCLNL 2020 K12 ISO 95° L 20 20 125 26 0.43 CNM.1204.. 8681408001626
SM01640 PCLNR 2525 M12 ISO 95° R 25 25 150 32 0.79 CNM.1204.. 8681408001640
SM01657 PCLNL 2525 M12 ISO 95° L 25 25 150 32 0.79 CNM.1204.. 8681408001657
SM01671 PCLNR 3232 P12 ISO 95° R 32 32 170 38 1.33 CNM.1204.. 8681408001671
SM01688 PCLNL 3232 P12 ISO 95° L 32 32 170 38 1.33 CNM.1204.. 8681408001688
SM01701 PCLNR 2525 M16 ISO 95° R 25 25 150 32 0.79 CNM.1606.. 8681408001701
SM01718 PCLNL 2525 M16 ISO 95° L 25 25 150 32 0.79 CNM.1606.. 8681408001718
SM01732 PCLNR 3232 P16 ISO 95° R 32 32 170 38 1.33 CNM.1606.. 8681408001732
SM01749 PCLNL 3232 P16 ISO 95° L 32 32 170 38 1.33 CNM.1606.. 8681408001749
SM01763 PCLNR 3232 P19 ISO 95° R 32 32 170 38 1.33 CNM.1909.. 8681408001763
SM01770 PCLNL 3232 P19 ISO 95° L 32 32 170 38 1.33 CNM.1909.. 8681408001770
SM25905 PCLNR 4040 S19 ISO 95° R 40 40 250 47 3 CNM.1909.. 8681408025905
SM25899 PCLNL 4040 S19 ISO 95° L 40 40 250 47 3 CNM.1909.. 8681408025899
