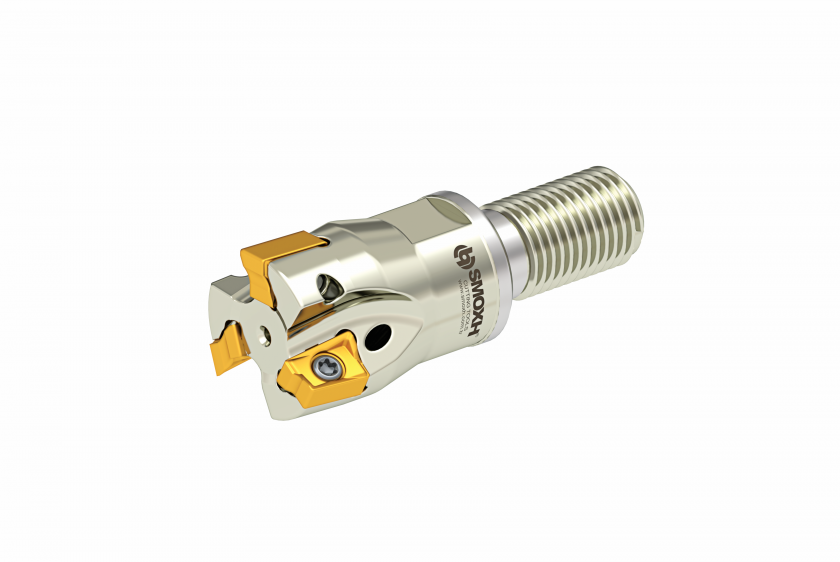

MT90 LN.X 1006..

Modular Milling Tools

Modular Milling Tools

Technical Specifications

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

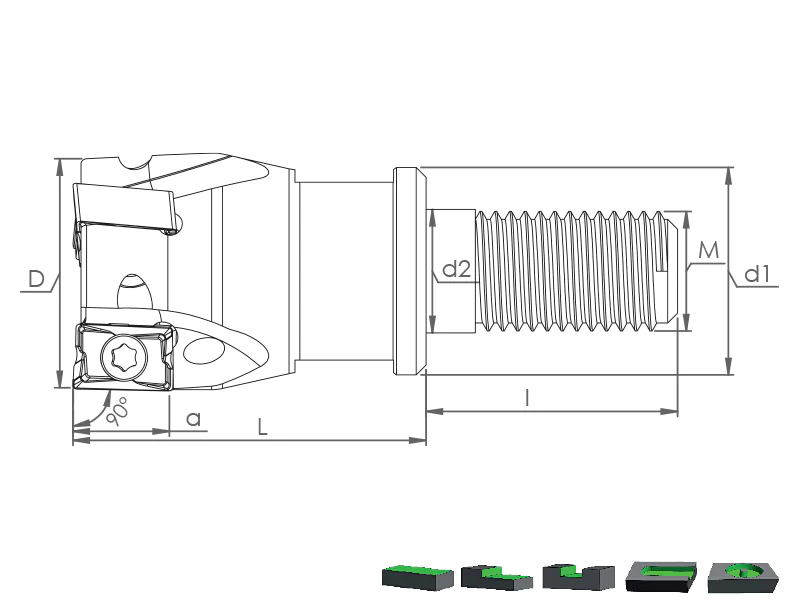

	MT90 LN.X 1006..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM47549	MT90 LN10 D20 M10 L30 Z02-H	KRLY	20	2	18	10.5	30	19	10	9	0.082	LN.X 1006..	8681408047549
SM47556	MT90 LN10 D25 M12 L35 Z03-H	KRLY	25	3	21	12.5	35	23	12	9	0.125	LN.X 1006..	8681408047556
SM47563	MT90 LN10 D32 M16 L43 Z04-H	KRLY	32	4	29	17	43	23	16	9	0.249	LN.X 1006..	8681408047563
