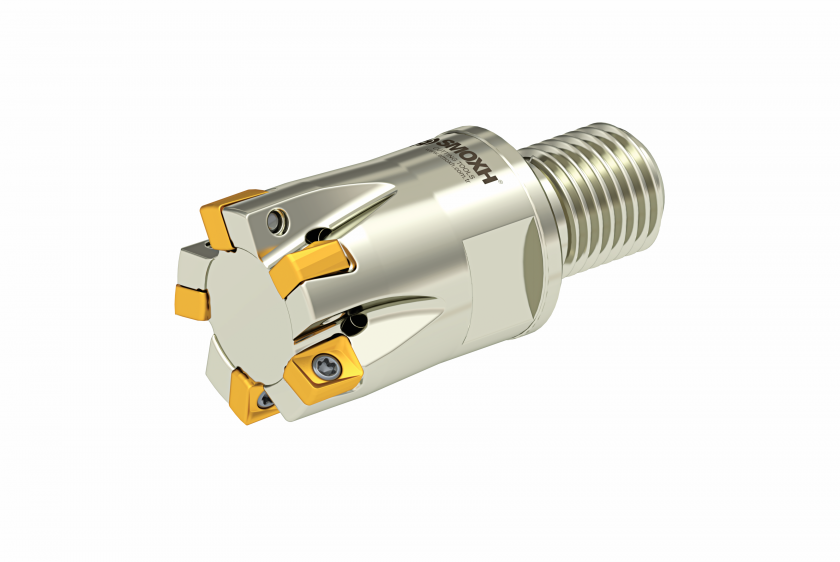

Modular Milling Tools - MT90 ANKX / ANCX 0904..
Home
Products
Milling Tools
Modular Mills
Modular Milling Tools
MT90 ANKX / ANCX 0904..
Modular Milling Tools
Technical
Specifications
Ordering Code
Item Designation

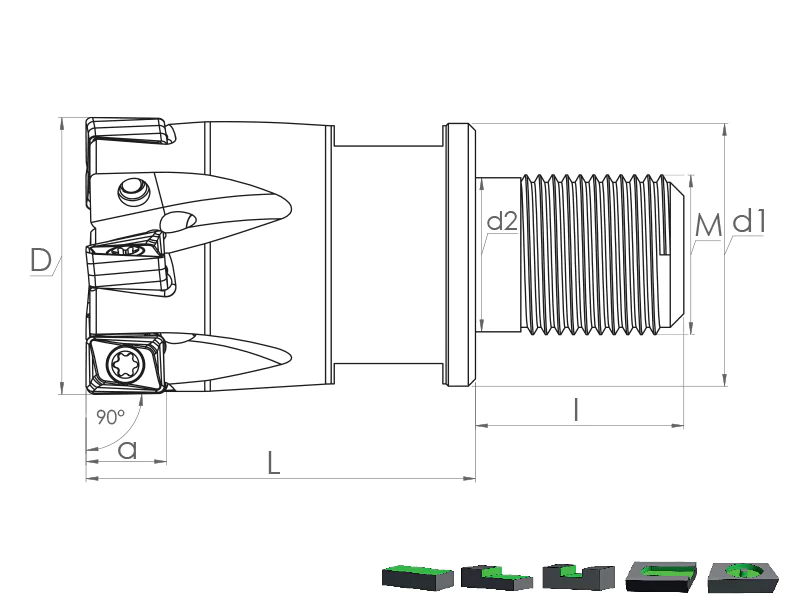

Dimensions
Master Insert
Barcode
MT90 ANKX / ANCX 0904..
DiamondBrand
D
Z
d1
d2
L
I
M
a
Weight(Kg)
SM58552
MT90 AN09 D20 M10 L30 Z03-H
ISCR
20
3
18
10.5
30
19
10
8
0.082
AN.X 0904..
8681408058552
SM58569
MT90 AN09 D25 M12 L35 Z04-H
ISCR
25
4
21
12.5
35
23
12
8
0.125
AN.X 0904..
8681408058569
SM58576
MT90 AN09 D32 M16 L43 Z05-H
ISCR
32
5
29
17
43
23
16
8
0.249
AN.X 0904..
8681408058576
