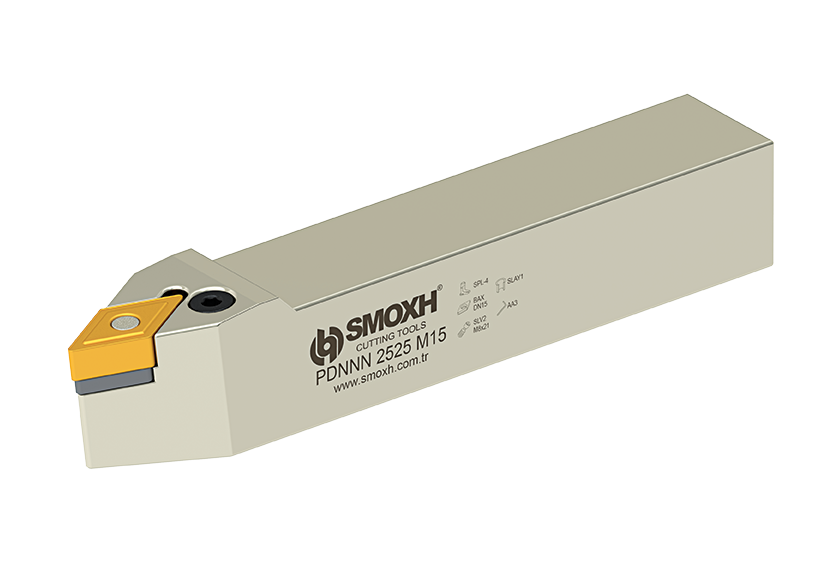

P System External Diameter Turning Tool - PDNNN (62.5)

PDNNN (62.5)

P System External Diameter Turning Tool

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  PDNNN (62.5) Insert
Brand
Approach
Angle

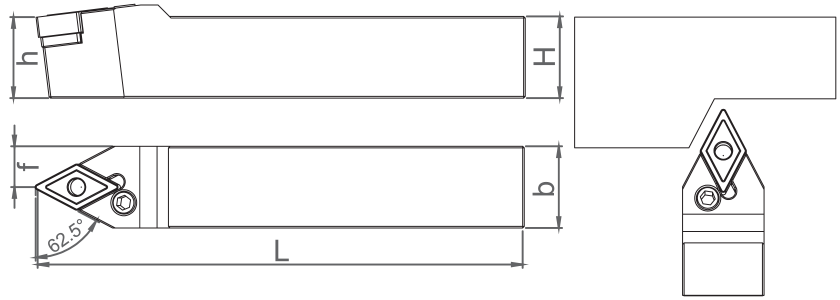

Direction h=H b L f Weight
(Kg)
P System External Diameter Turning Tool
SM25943 PDNNN 2020 K15 ISO 62.5° N 20 20 125 10 0.43 DNM.1506.. 8681408025943
SM22409 PDNNN 2525 M15 ISO 62.5° N 25 25 150 12.5 0.79 DNM.1506.. 8681408022409
SM25936 PDNNN 3232 P15 ISO 62.5° N 32 32 170 16 1.33 DNM.1506.. 8681408025936
SM34297 PDNNN 4040 S15 ISO 62.5° N 40 40 250 20 3 DNM.1506.. 8681408034297

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

✅ Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

✅ Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

✅ Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

✅ Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

✅ Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

✅ Negative Rake Angle Design
Ensures durability under high cutting forces.
