MT90 LOEX 0804..

Modular Milling Tools

Modular Milling Tools

Technical Specifications

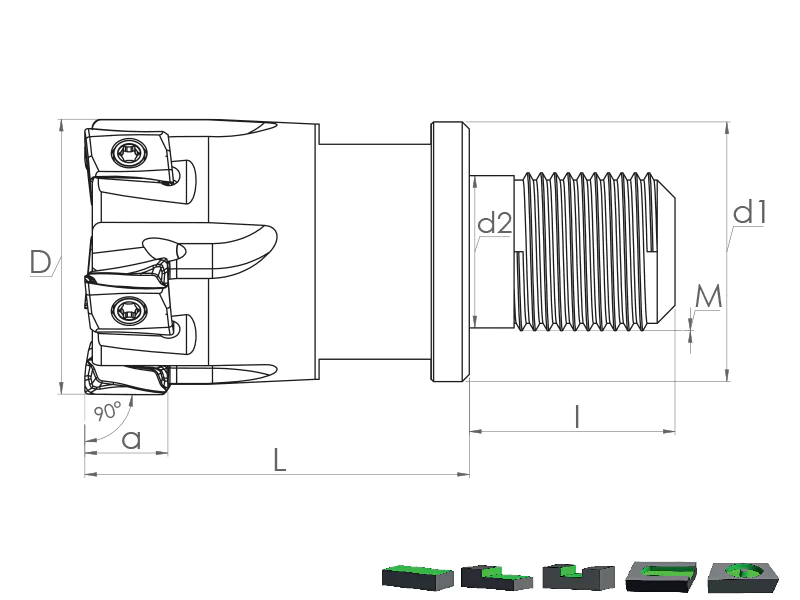

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode
	MT90 LOEX 0804..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM58699	MT90 LO08 D20 M10 L30 Z03-H	SECO	20	3	18	10.5	30	19	10	8	0.082	LOEX 0804..	8681408058699
SM58705	MT90 LO08 D25 M12 L35 Z04-H	SECO	25	4	21	12.5	35	23	12	8	0.125	LOEX 0804..	8681408058705
SM58712	MT90 LO08 D32 M16 L43 Z05-H	SECO	32	5	29	17	43	23	16	8	0.249	LOEX 0804..	8681408058712
