P System External Diameter Turning Tool - PDJNR/L (93)

PDJNR/L (93)

P System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

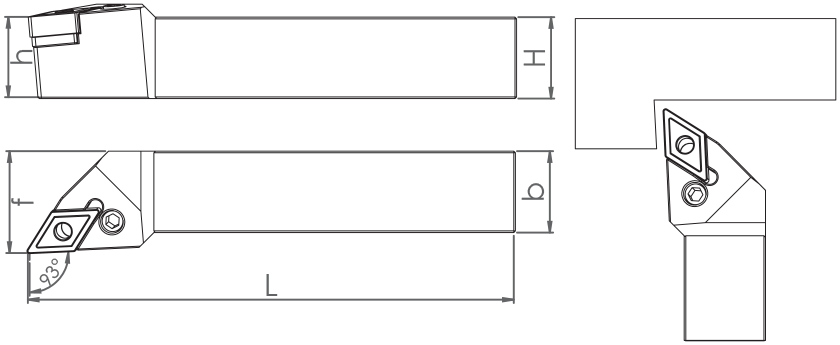

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  PDJNR/L (93) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
P System External Diameter Turning Tool
SM01794 PDJNR 2020 K15 ISO 93° R 20 20 125 26 0.43 DNM.1506.. 8681408001794
SM01800 PDJNL 2020 K15 ISO 93° L 20 20 125 26 0.43 DNM.1506.. 8681408001800
SM01817 PDJNR 2525 M15 ISO 93° R 25 25 150 32 0.79 DNM.1506.. 8681408001817
SM01824 PDJNL 2525 M15 ISO 93° L 25 25 150 32 0.79 DNM.1506.. 8681408001824
SM01831 PDJNR 3232 P15 ISO 93° R 32 32 170 38 1.33 DNM.1506.. 8681408001831
SM01848 PDJNL 3232 P15 ISO 93° L 32 32 170 38 1.33 DNM.1506.. 8681408001848
SM25967 PDJNR 4040 S15 ISO 93° R 40 40 250 47 3 DNM.1506.. 8681408025967
SM25950 PDJNL 4040 S15 ISO 93° L 40 40 250 47 3 DNM.1506.. 8681408025950
