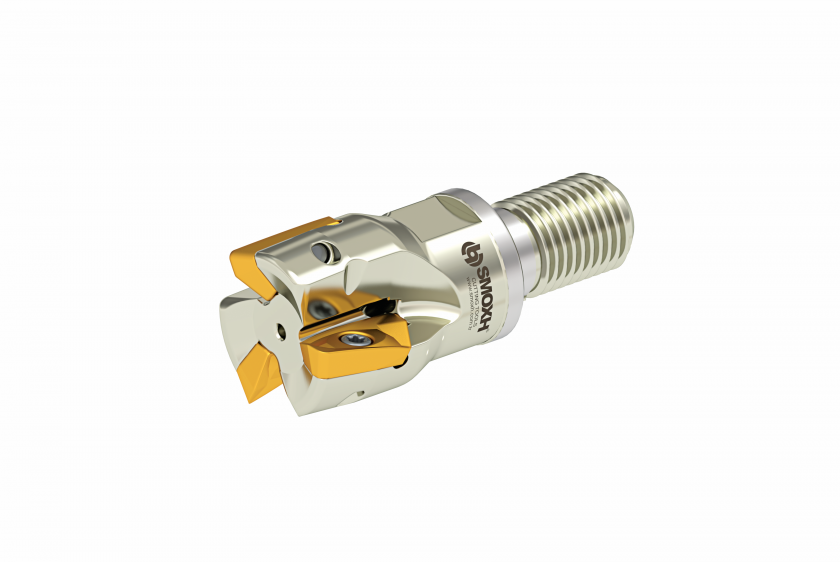

Modular Milling Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

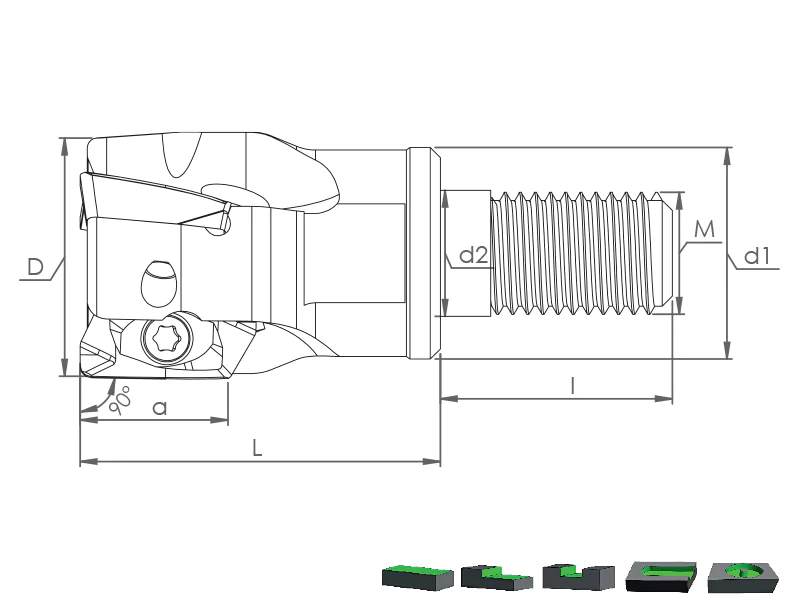

	MT90 EDPT 10T3.. / 1404..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM43848	MT90 ED10 D16 M08 L25 Z02-H	KNMTL	16	2	15	8.5	25	17	8	10	0.061	EDPT 10T3..	8681408043848
SM43855	MT90 ED10 D20 M10 L30 Z03-H	KNMTL	20	3	18	10.5	30	19	10	10	0.082	EDPT 10T3..	8681408043855
SM43862	MT90 ED10 D25 M12 L35 Z04-H	KNMTL	25	4	21	12.5	35	23	12	10	0.125	EDPT 10T3..	8681408043862
SM56558	MT90 ED10 D32 M16 L43 Z05-H	KNMTL	32	5	29	17	43	23	16	10	0.249	EDPT 10T3..	8681408056558
SM43879	MT90 ED14 D20 M10 L30 Z02-H	KNMTL	20	2	18	10.5	30	19	10	14	0.082	EDPT 1404..	8681408043879
SM43886	MT90 ED14 D25 M12 L35 Z03-H	KNMTL	25	3	21	12.5	35	23	12	14	0.125	EDPT 1404..	8681408043886
SM43893	MT90 ED14 D32 M16 L43 Z04-H	KNMTL	32	4	29	17	43	23	16	14	0.249	EDPT 1404..	8681408043893

Modular Milling Tools - MT90 EDPT 10T3.. / 1404..
