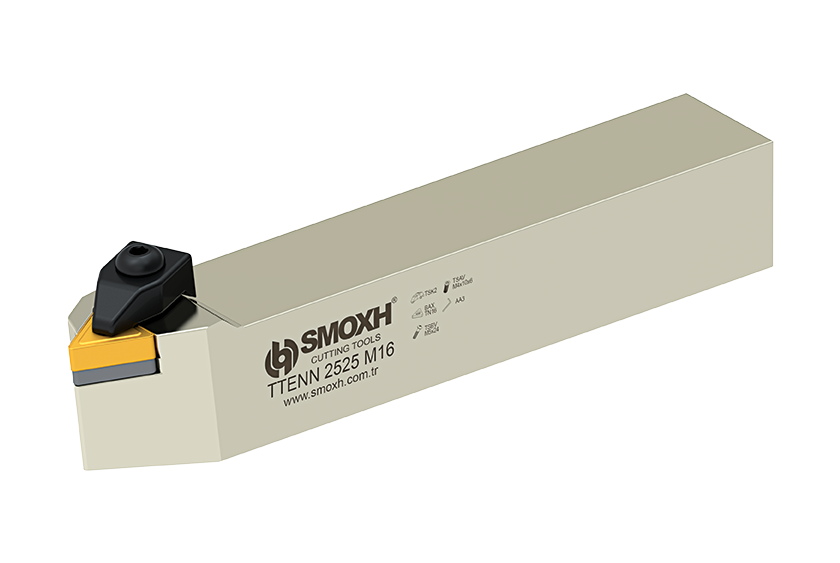

T System External Diameter Turning Tool

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode

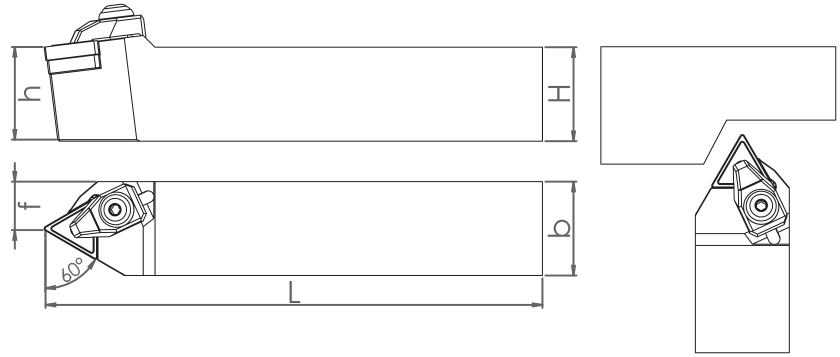

	TTENN (60)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM00841	TTENN 2020 K16	ISO	60°	N	20	20	125	10	0.46	TNM.1604..	8681408000841
SM00872	TTENN 2525 M16	ISO	60°	N	25	25	150	12.5	0.79	TNM.1604..	8681408000872
SM00902	TTENN 3232 P16	ISO	60°	N	32	32	170	16	1.38	TNM.1604..	8681408000902
SM00933	TTENN 2525 M22	ISO	60°	N	25	25	150	12.5	0.79	TNM.2204..	8681408000933
SM00964	TTENN 3232 P22	ISO	60°	N	32	32	170	16	1.38	TNM.2204..	8681408000964
SM00995	TTENN 4040 S22	ISO	60°	N	40	40	250	20	3.12	TNM.2204..	8681408000995

T System External Diameter Turning Tool - TTENN (60)
