Modular Milling Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

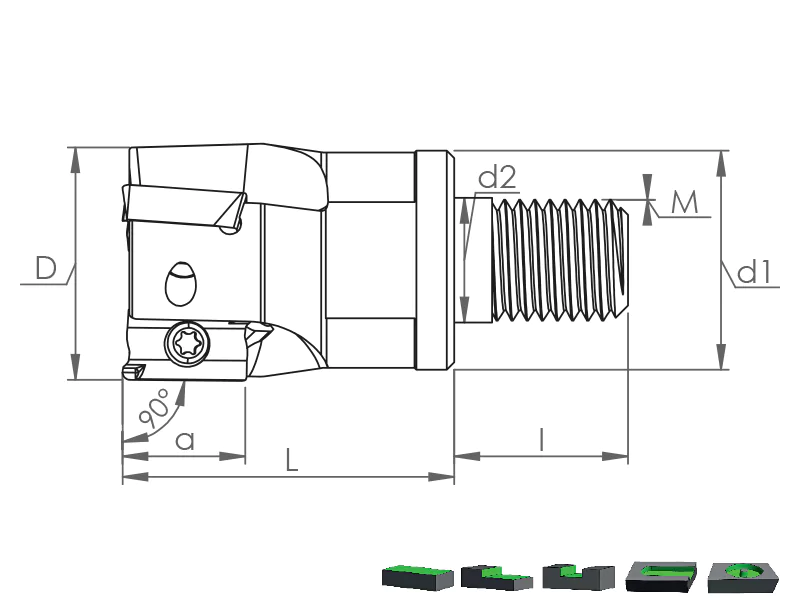

	MT90 AXMT 1235.. / 1705..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM23994	MT90 AX12 D16 M08 L25 Z02-H	SMTM	16	2	15	8.5	25	17	8	10	0.061	AXMT 1235..	8681408023994
SM24007	MT90 AX12 D20 M10 L30 Z03-H	SMTM	20	3	18	10.5	30	19	10	10	0.082	AXMT 1235..	8681408024007
SM24014	MT90 AX12 D25 M12 L35 Z04-H	SMTM	25	4	21	12.5	35	23	12	10	0.125	AXMT 1235..	8681408024014
SM56466	MT90 AX17 D32 M16 L43 Z03-H	SMTM	32	3	29	17	43	23	16	14	0.249	AXMT 1705..	8681408056466
SM56473	MT90 AX17 D40 M16 L43 Z04-H	SMTM	40	4	29	17	43	23	16	10.5	0.316	AXMT 1705..	8681408056473

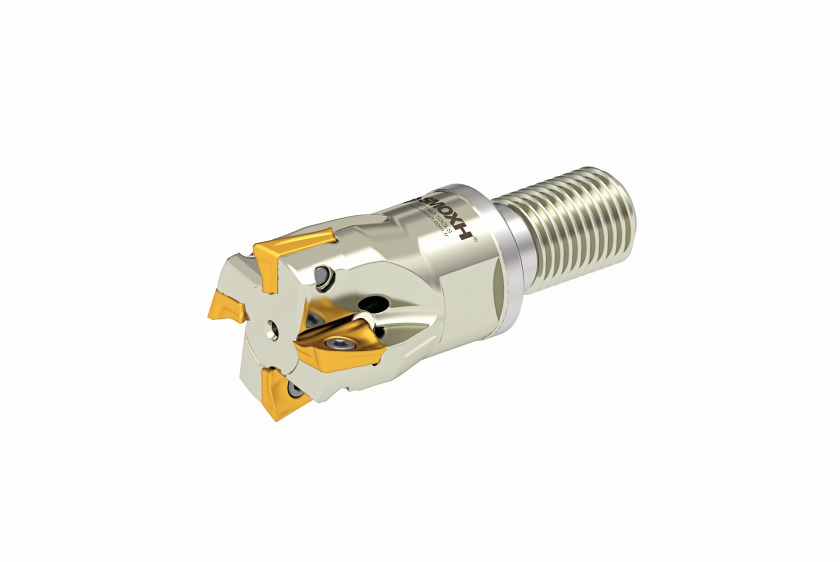

Modular Milling Tools - MT90 AXMT 1235.. / 1705..
