Modular Milling Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

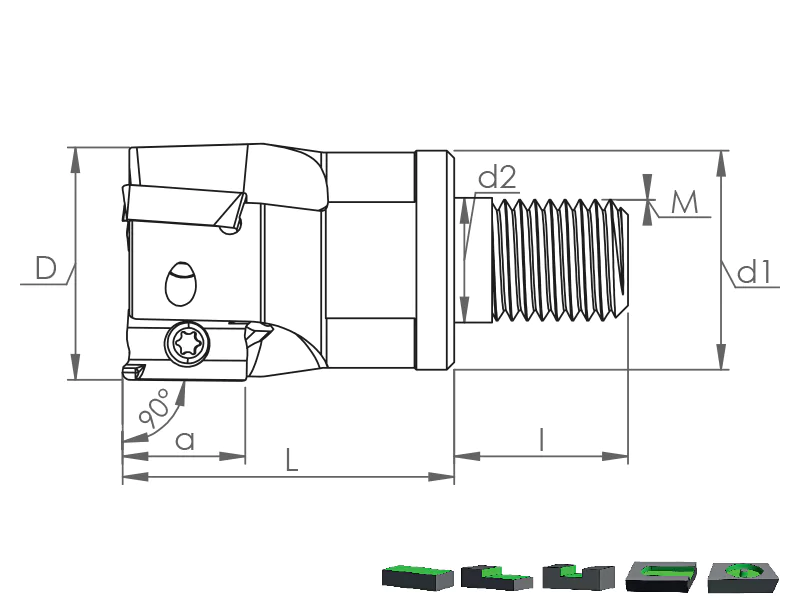

	MT90 BDMT / BDGT 11T3..	Diamond Brand	D	Z	d1	d2	L	I	M	a	Weight (Kg)
SM36543	MT90 BD11 D16 M08 L25 Z02-H	KYCR	16	2	15	8.5	25	17	8	10	0.061	BD..11T3..	8681408036543
SM36550	MT90 BD11 D20 M10 L30 Z03-H	KYCR	20	3	18	10.5	30	19	10	10	0.082	BD..11T3..	8681408036550
SM36567	MT90 BD11 D25 M12 L35 Z04-H	KYCR	25	4	21	12.5	35	23	12	10	0.125	BD..11T3..	8681408036567
SM36574	MT90 BD11 D32 M16 L43 Z05-H	KYCR	32	5	29	17	43	23	16	10	0.249	BD..11T3..	8681408036574

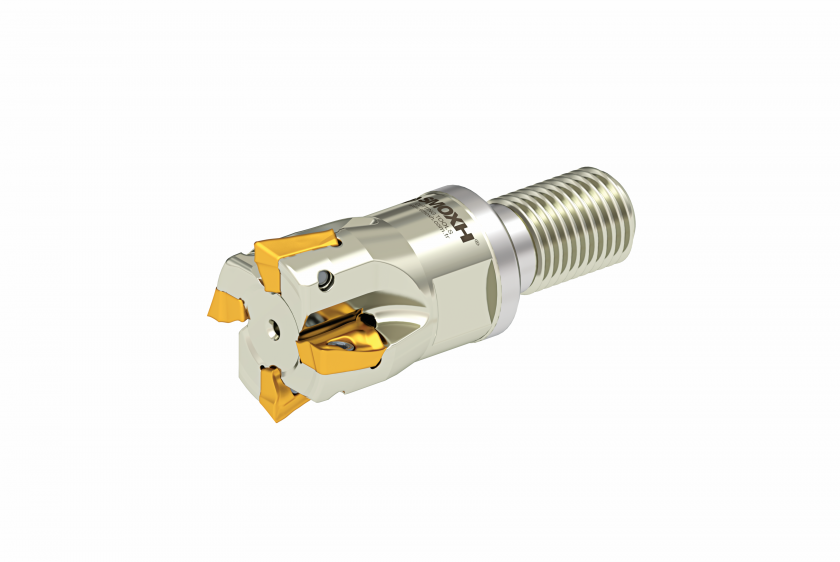

Modular Milling Tools - MT90 BDMT / BDGT 11T3..
