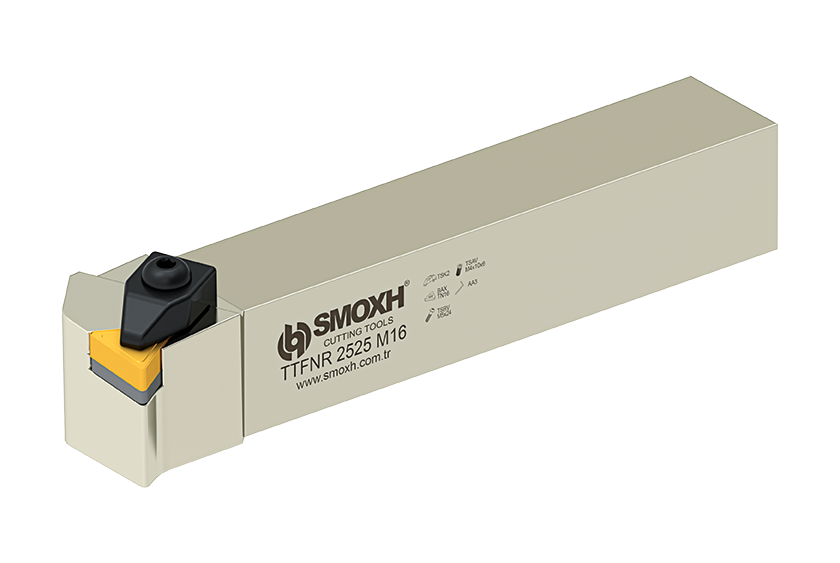

T System External Diameter Turning Tool - TTFNR/L (90)

TTFNR/L (90)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

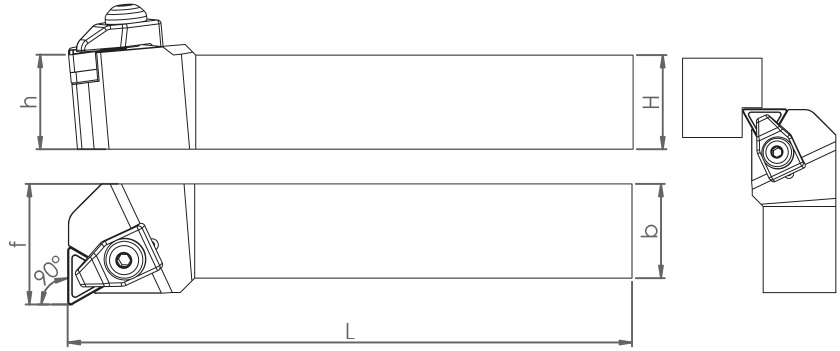

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TTFNR/L (90) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM44524 TTFNR 2020 K16 ISO 90° R 20 20 125 26 0.46 TNM.1604.. 8681408044524
SM44531 TTFNL 2020 K16 ISO 90° L 20 20 125 26 0.46 TNM.1604.. 8681408044531
SM44548 TTFNR 2525 M16 ISO 90° R 25 25 150 32 0.79 TNM.1604.. 8681408044548
SM44555 TTFNL 2525 M16 ISO 90° L 25 25 150 32 0.79 TNM.1604.. 8681408044555
SM49154 TTFNR 3232 P16 ISO 90° R 32 32 170 38 1.38 TNM.1604.. 8681408049154
SM49161 TTFNL 3232 P16 ISO 90° L 32 32 170 38 1.38 TNM.1604.. 8681408049161
SM44562 TTFNR 2525 M22 ISO 90° R 25 25 150 32 0.79 TNM.2204.. 8681408044562
SM44579 TTFNL 2525 M22 ISO 90° L 25 25 150 32 0.79 TNM.2204.. 8681408044579
SM44586 TTFNR 3232 P22 ISO 90° R 32 32 170 38 1.38 TNM.2204.. 8681408044586
SM44593 TTFNL 3232 P22 ISO 90° L 32 32 170 38 1.38 TNM.2204.. 8681408044593
SM49178 TTFNR 4040 S22 ISO 90° R 40 40 250 47 3.12 TNM.2204.. 8681408049178
SM49185 TTFNL 4040 S22 ISO 90° L 40 40 250 47 3.12 TNM.2204.. 8681408049185
