T System External Diameter Turning Tool

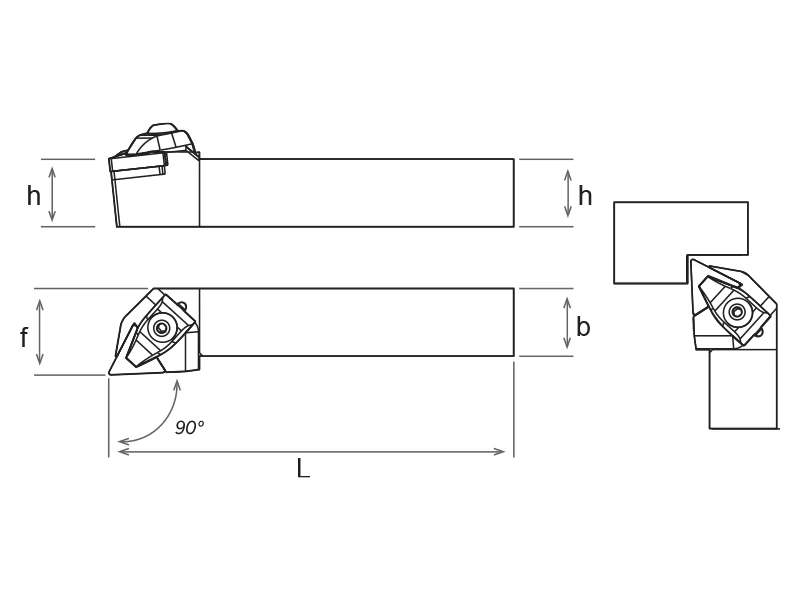

Ordering Code	Item Designation	Dimensions								Master Insert	Barcode
	TTGNR/L (90)	Diamond Brand	Approach Angle	Direction	h=H	b	L	f	Weight (Kg)
SM44449	TTGNR 2020 K16	ISO	90°	R	20	20	125	26	0.46	TNM.1604..	8681408044449
SM44456	TTGNL 2020 K16	ISO	90°	L	20	20	125	26	0.46	TNM.1604..	8681408044456

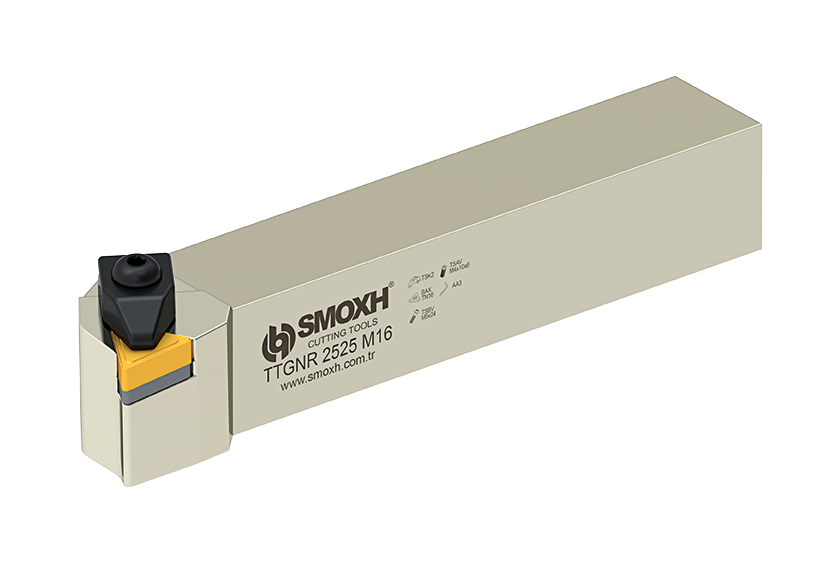

SM44463	TTGNR 2525 M16	ISO	90°	R	25	25	150	32	0.79	TNM.1604..	8681408044463
SM44470	TTGNL 2525 M16	ISO	90°	L	25	25	150	32	0.79	TNM.1604..	8681408044470
SM49116	TTGNR 3232 P16	ISO	90°	R	32	32	170	38	1.38	TNM.1604..	8681408049116
SM49123	TTGNL 3232 P16	ISO	90°	L	32	32	170	38	1.38	TNM.1604..	8681408049123
SM44487	TTGNR 2525 M22	ISO	90°	R	25	25	150	32	0.79	TNM.2204..	8681408044487
SM44494	TTGNL 2525 M22	ISO	90°	L	25	25	150	32	0.79	TNM.2204..	8681408044494
SM44500	TTGNR 3232 P22	ISO	90°	R	32	32	170	38	1.38	TNM.2204..	8681408044500
SM44517	TTGNL 3232 P22	ISO	90°	L	32	32	170	38	1.38	TNM.2204..	8681408044517
SM49130	TTGNR 4040 S22	ISO	90°	R	40	40	250	47	3.12	TNM.2204..	8681408049130
SM51409	TTGNL 4040 S22	ISO	90°	L	40	40	250	47	3.12	TNM.2204..	8681408051409

T System External Diameter Turning Tool - TTGNR/L (90)
