T System External Diameter Turning Tool - TTJNR/L (93)

TTJNR/L (93)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

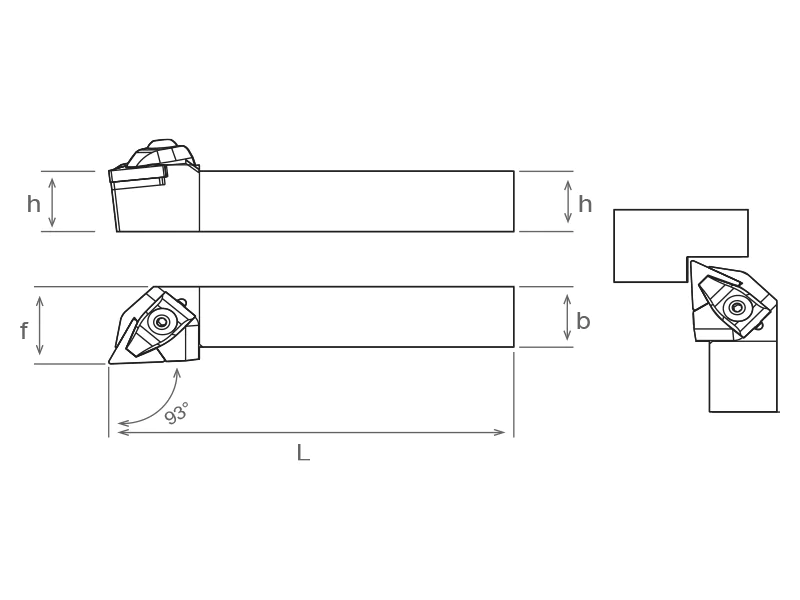

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TTJNR/L (93) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00827 TTJNR 2020 K16 ISO 93° R 20 20 125 26 0.46 TNM.1604.. 8681408000827
SM00834 TTJNL 2020 K16 ISO 93° L 20 20 125 26 0.46 TNM.1604.. 8681408000834

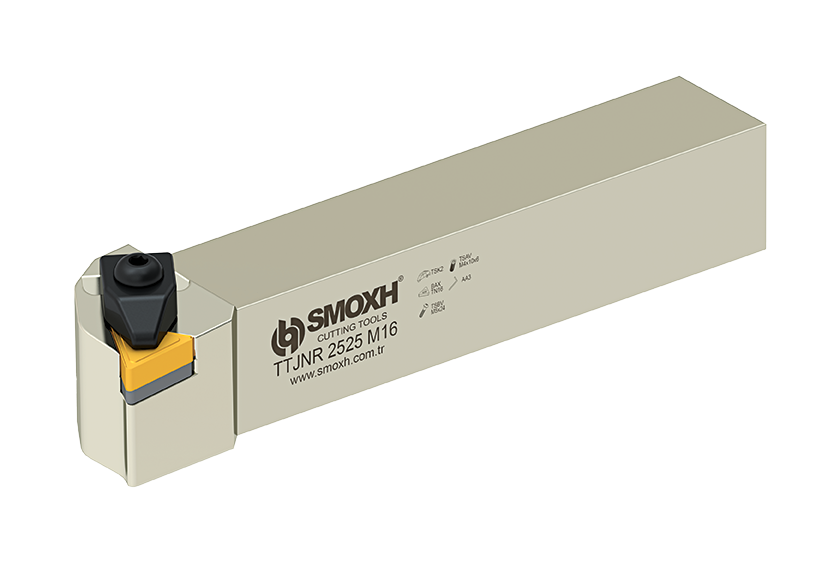

SM00858 TTJNR 2525 M16 ISO 93° R 25 25 150 32 0.79 TNM.1604.. 8681408000858
SM00865 TTJNL 2525 M16 ISO 93° L 25 25 150 32 0.79 TNM.1604.. 8681408000865
SM00889 TTJNR 3232 P16 ISO 93° R 32 32 170 38 1.38 TNM.1604.. 8681408000889
SM00896 TTJNL 3232 P16 ISO 93° L 32 32 170 38 1.38 TNM.1604.. 8681408000896
SM00919 TTJNR 2525 M22 ISO 93° R 25 25 150 32 0.79 TNM.2204.. 8681408000919
SM00926 TTJNL 2525 M22 ISO 93° L 25 25 150 32 0.79 TNM.2204.. 8681408000926
SM00940 TTJNR 3232 P22 ISO 93° R 32 32 170 38 1.38 TNM.2204.. 8681408000940
SM00957 TTJNL 3232 P22 ISO 93° L 32 32 170 38 1.38 TNM.2204.. 8681408000957
SM00971 TTJNR 4040 S22 ISO 93° R 40 40 250 47 3.12 TNM.2204.. 8681408000971
SM00988 TTJNL 4040 S22 ISO 93° L 40 40 250 47 3.12 TNM.2204.. 8681408000988
