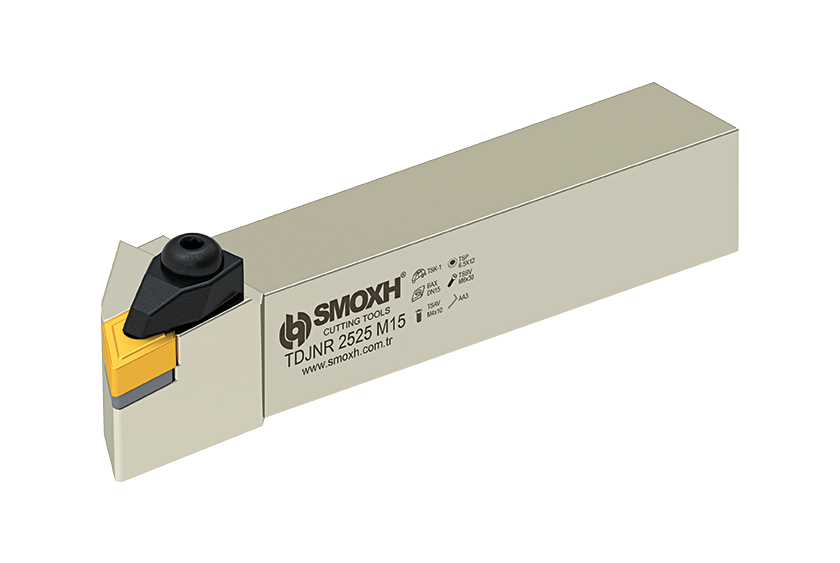

T System External Diameter Turning Tool - TDJNR/L (93)

TDJNR/L (93)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

Technical Specifications

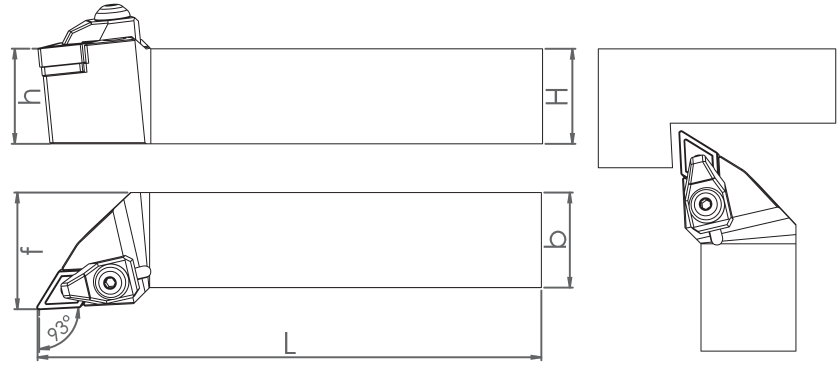

Ordering Code Item Designation Dimensions Master Insert Barcode
  TDJNR/L (93) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM26766 TDJNR 1616 H11 ISO 93° R 16 16 100 20 0.26 DNM.1104.. 8681408026766
SM00407 TDJNL 1616 H11 ISO 93° L 16 16 100 20 0.26 DNM.1104.. 8681408000407
SM00353 TDJNR 2020 K11 ISO 93° R 20 20 125 26 0.46 DNM.1104.. 8681408000353
SM00360 TDJNL 2020 K11 ISO 93° L 20 20 125 26 0.46 DNM.1104.. 8681408000360
SM00346 TDJNR 2525 M11 ISO 93° R 25 25 150 32 0.79 DNM.1104.. 8681408000346
SM00377 TDJNL 2525 M11 ISO 93° L 25 25 150 32 0.79 DNM.1104.. 8681408000377
SM00421 TDJNR 2020 K15 ISO 93° R 20 20 125 26 0.46 DNM.1506.. 8681408000421
SM00469 TDJNL 2020 K15 ISO 93° L 20 20 125 26 0.46 DNM.1506.. 8681408000469
SM00438 TDJNR 2525 M15 ISO 93° R 25 25 150 32 0.79 DNM.1506.. 8681408000438
SM00483 TDJNL 2525 M15 ISO 93° L 25 25 150 32 0.79 DNM.1506.. 8681408000483
SM00506 TDJNR 3232 P15 ISO 93° R 32 32 170 38 1.38 DNM.1506.. 8681408000506
SM00490 TDJNL 3232 P15 ISO 93° L 32 32 170 38 1.38 DNM.1506.. 8681408000490
SM00520 TDJNR 4040 S15 ISO 93° R 40 40 250 47 3.12 DNM.1506.. 8681408000520
SM00513 TDJNL 4040 S15 ISO 93° L 40 40 250 47 3.12 DNM.1506.. 8681408000513
SM29675 TDJNR 2020 K1504 ISO 93° R 20 20 125 26 0.46 DNM.1504.. 8681408029675
SM34006 TDJNL 2020 K1504 ISO 93° L 20 20 125 26 0.46 DNM.1504.. 8681408034006
SM29682 TDJNR 2525 M1504 ISO 93° R 25 25 150 32 0.79 DNM.1504.. 8681408029682
SM33993 TDJNL 2525 M1504 ISO 93° L 25 25 150 32 0.79 DNM.1504.. 8681408033993
SM33948 TDJNR 3232 P1504 ISO 93° R 32 32 170 38 1.38 DNM.1504.. 8681408033948
SM33986 TDJNL 3232 P1504 ISO 93° L 32 32 170 38 1.38 DNM.1504.. 8681408033986
SM73685 TDJNR 5050 S15 DNM.1506..
