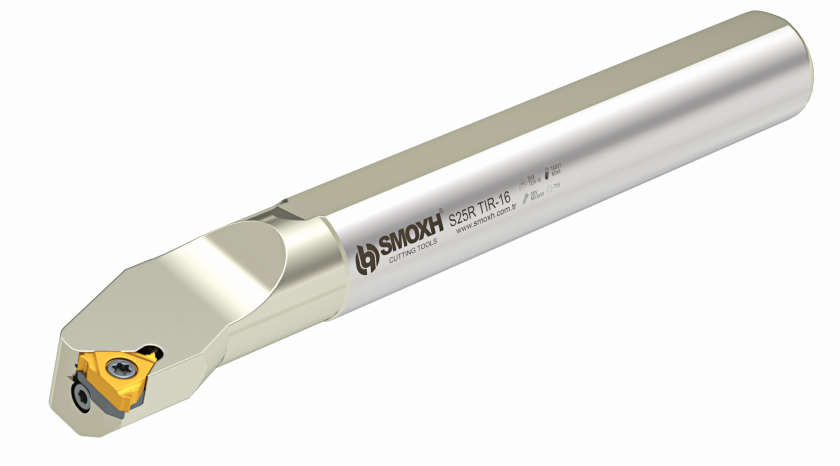

Internal Diameter Threading Tools - TIR/L

TIR/L

Internal Diameter Threading Tools

Product Description

Advantages of Internal Threading Tools

Internal threading tools are engineered for precision and performance, even in challenging

applications involving small diameters and deep bores. Key advantages include:

High Precision in Confined Spaces

Delivers stable and accurate threading performance, even in small-diameter internal holes.

Vibration Damping Capability

Minimizes vibration in deep hole operations, resulting in improved surface finish and tool

stability.

Advanced Chip Control

Optimized cutting inserts reduce the risk of chip jamming and clogging for smoother operation.

Versatility Across Materials

Delivers reliable results on a wide range of materials including steel, stainless steel, cast iron,

and aluminum.

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TIR/L Insert
Brand

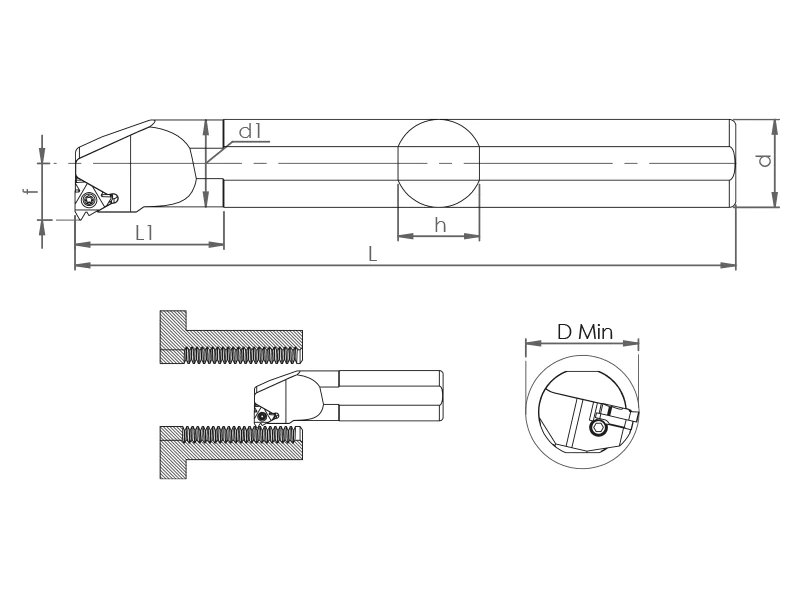

d d1 h L f L1 D Min Direction Weight
(Kg)
Internal Diameter Threading Tools
SM44685 S25R TIR-16 ISO 25 25 23 200 16.5 - 29 Sağ 16 IR (0.35-3) 8681408044685
SM44692 S25R TIL-16 ISO 25 25 23 200 16.5 - 29 Sol 16 IL (0.35-3) 8681408044692
SM44708 S32S TIR-16 ISO 32 32 30 250 20 - 36 Sağ 16 IR (0.35-3) 8681408044708
SM44715 S32S TIL-16 ISO 32 32 30 250 20 - 36 Sol 16 IL (0.35-3) 8681408044715
SM44722 S40T TIR-16 ISO 40 40 37 300 24 - 44 Sağ 2.8 16 IR (0.35-3) 8681408044722
SM44739 S40T TIL-16 ISO 40 40 37 300 24 - 44 Sol 2.8 16 IL (0.35-3) 8681408044739
SM44746 S25R TIR-22 ISO 25 25 23 200 16.5 - 29 Sağ 22 IR (3.5-4.5) 8681408044746
SM44753 S25R TIL-22 ISO 25 25 23 200 16.5 - 29 Sol 22 IL (3.5-4.5) 8681408044753
SM44760 S32S TIR-22 ISO 32 32 30 250 20 - 38 Sağ 22 IR (3.5-4.5) 8681408044760
SM44777 S32S TIL-22 ISO 32 32 30 250 20 - 38 Sol 22 IL (3.5-4.5) 8681408044777
SM44784 S40T TIR-22 ISO 40 40 37 300 24 - 46 Sağ 2.8 22 IR (3.5-4.5) 8681408044784
SM44791 S40T TIL-22 ISO 40 40 37 300 24 - 46 Sol 2.8 22 IL (3.5-4.5) 8681408044791
SM51010 S32S TIR-27 ISO 32 32 30 250 20 - 38 Sağ 27 IR 8681408051010
SM51027 S32S TIL-27 ISO 32 32 30 250 20 - 38 Sol 27 IL 8681408051027
SM51034 S40T TIR-27 ISO 40 40 37 300 24 - 46 Sağ 2.8 27 IR 8681408051034
SM51041 S40T TIL-27 ISO 40 40 37 300 24 - 46 Sol 2.8 27 IL 8681408051041
