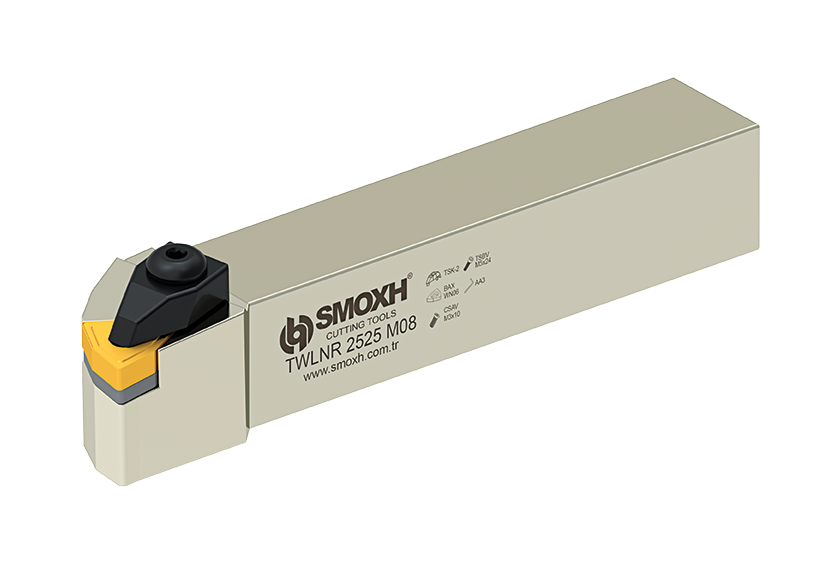

T System External Diameter Turning Tool - TWLNR/L (95)

TWLNR/L (95)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

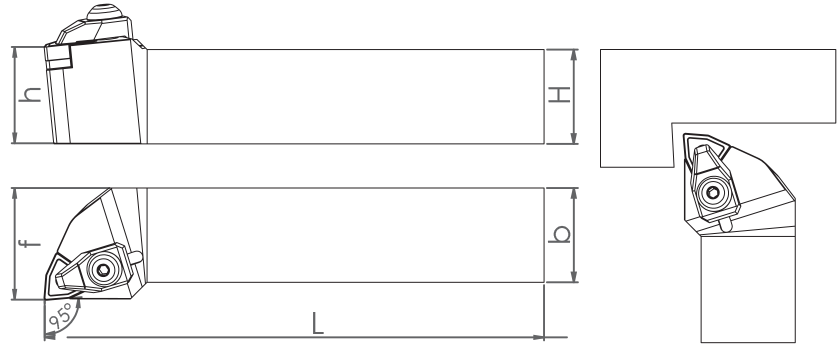

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TWLNR/L (95) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM01107 TWLNR 1616 H06 ISO 95° R 16 16 100 20 0.26 WNM.0604.. 8681408001107
SM01114 TWLNL 1616 H06 ISO 95° L 16 16 100 20 0.26 WNM.0604.. 8681408001114
SM01121 TWLNR 2020 K06 ISO 95° R 20 20 125 26 0.46 WNM.0604.. 8681408001121
SM01138 TWLNL 2020 K06 ISO 95° L 20 20 125 26 0.46 WNM.0604.. 8681408001138
SM01145 TWLNR 2525 M06 ISO 95° R 25 25 150 32 0.79 WNM.0604.. 8681408001145
SM01152 TWLNL 2525 M06 ISO 95° L 25 25 150 32 0.79 WNM.0604.. 8681408001152
SM01176 TWLNR 2020 K08 ISO 95° R 20 20 125 25 0.46 WNM.0804.. 8681408001176
SM01169 TWLNL 2020 K08 ISO 95° L 20 20 125 25 0.46 WNM.0804.. 8681408001169
SM01206 TWLNR 2525 M08 ISO 95° R 25 25 150 32 0.79 WNM.0804.. 8681408001206
SM01183 TWLNL 2525 M08 ISO 95° L 25 25 150 32 0.79 WNM.0804.. 8681408001183
SM01213 TWLNR 3232 P08 ISO 95° R 32 32 170 38 1.38 WNM.0804.. 8681408001213
SM01190 TWLNL 3232 P08 ISO 95° L 32 32 170 38 1.38 WNM.0804.. 8681408001190
SM01220 TWLNR 4040 S08 ISO 95° R 40 40 250 47 3.12 WNM.0804.. 8681408001220
SM01237 TWLNL 4040 S08 ISO 95° L 40 40 250 47 3.12 WNM.0804.. 8681408001237
