A TYPE FACE GROOVING BDKT-A GRIP

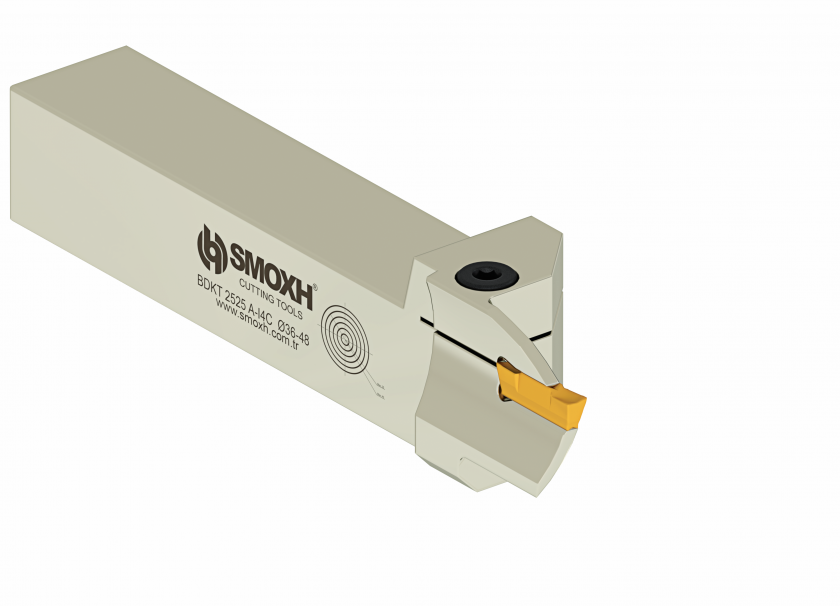

External Diameter Face Grooving Tools

External Diameter Face Grooving Tools

Technical Specifications

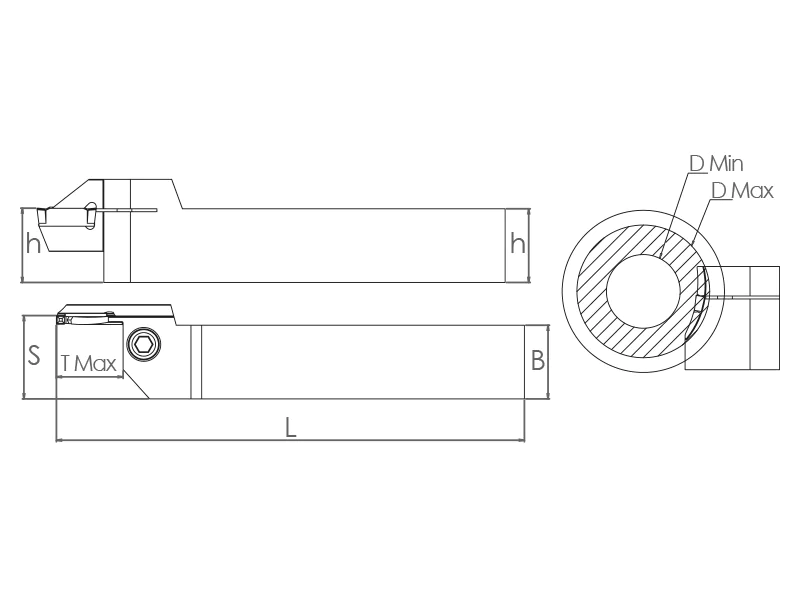

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode
	A TYPE FACE GROOVING BDKT-A GRIP	Diamond Brand	h	B	L	S	t Max	ØD Min	ØD Max	Direction
SM10505	2525 BDKT-A I4C (Ø24-36) t.max:22	ISCR	25	25	150	26.5	22	24	36	Sağ	DGN. 4C	8681408010505
SM63020	2525 BDKT/L-A I4C (Ø24-36) t.max:22	ISCR	25	25	150	26.5	22	24	36	Sol	DGN. 4C	8681408063020
SM10468	2525 BDKT-A I4C (Ø36-48) t max:22	ISCR	25	25	150	26.5	22	36	48	Sağ	DGN. 4C	8681408010468
SM62856	2525 BDKT/L-A I4C (Ø36-48) t max:22	ISCR	25	25	150	26.5	22	36	48	Sol	DGN. 4C	8681408062856
SM10475	2525 BDKT-A I4C (Ø48-70) t.max:22	ISCR	25	25	150	26.5	22	48	70	Sağ	DGN. 4C	8681408010475
SM62993	2525 BDKT/L-A I4C (Ø48-70) t.max:22	ISCR	25	25	150	26.5	22	48	70	Sol	DGN. 4C	8681408062993
SM10482	2525 BDKT-A I4C (Ø70-110) t.max:22	ISCR	25	25	150	26.5	22	70	110	Sağ	DGN. 4C	8681408010482
SM63006	2525 BDKT/L-A I4C (Ø70-110) t.max:22	ISCR	25	25	150	26.5	22	70	110	Sol	DGN. 4C	8681408063006
SM10499	2525 BDKT-A I4C (Ø100-150) t.max:22	ISCR	25	25	150	26.5	22	100	150	Sağ	DGN. 4C	8681408010499
SM63013	2525 BDKT/L-A I4C (Ø100-150) t.max:22	ISCR	25	25	150	26.5	22	100	150	Sol	DGN. 4C	8681408063013
SM10451	2525 BDKT-A I4C (Ø150-200) t.max:22	ISCR	25	25	150	26.5	22	150	200	Sağ	DGN. 4C	8681408010451
SM62849	2525 BDKT/L-A I4C (Ø150-200) t.max:22	ISCR	25	25	150	26.5	22	150	200	Sol	DGN. 4C	8681408062849
SM39704	2525 BDKT-A I4C (Ø200-350) t.max:22	ISCR	25	25	150	26.5	22	200	350	Sağ	DGN. 4C	8681408039704
SM63259	2525 BDKT/L-A I4C (Ø200-350) t.max:22	ISCR	25	25	150	26.5	22	200	350	Sol	DGN. 4C	8681408063259
SM39711	2525 BDKT-A I4C (Ø300-500) t.max:22	ISCR	25	25	150	26.5	22	300	500	Sağ	DGN. 4C	8681408039711
SM63266	2525 BDKT/L-A I4C (Ø300-500) t.max:22	ISCR	25	25	150	26.5	22	300	500	Sol	DGN. 4C	8681408063266
