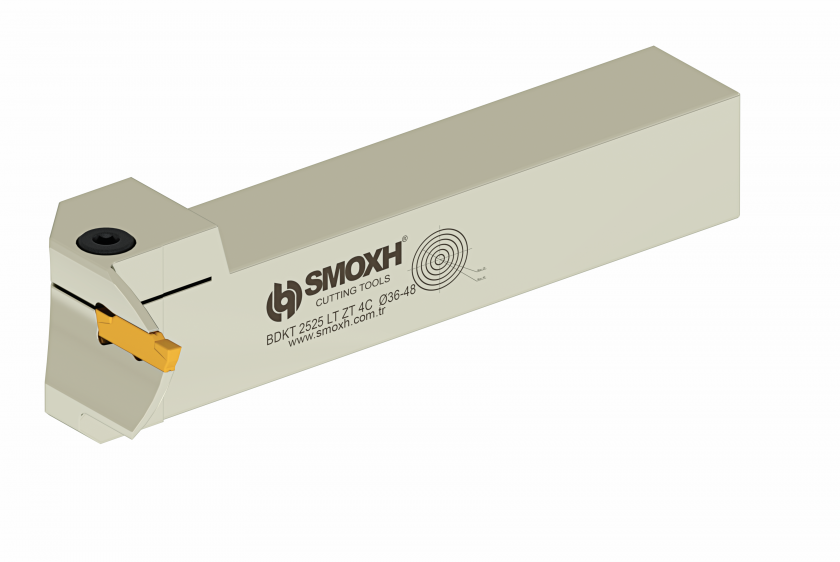

L TYPE FACE GROOVING BDKT-LT ZT. ZCC-CT

External Diameter Face Grooving Tools

External Diameter Face Grooving Tools

Technical Specifications

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

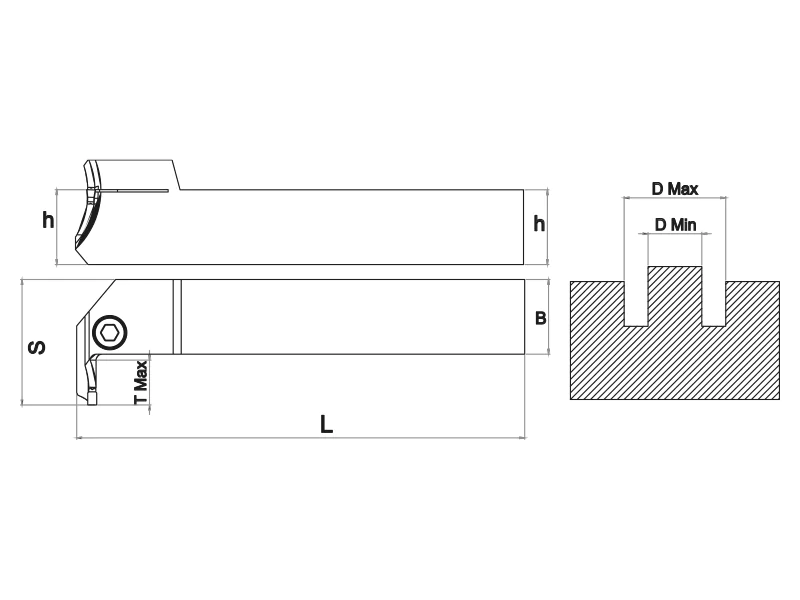

	L TYPE FACE GROOVING BDKT-LT ZT. ZCC-CT	Diamond Brand	h	B	L	S	t Max	ØD Min	ØD Max	Direction
SM34518	2525 BDKT-LT ZT3C (Ø24-36) t.max:17	ZCC-CT	25	25	150	26.5	17	24	36	Sağ	ZTFD 3C	8681408034518
SM34525	2525 BDKT-LT ZT3C (Ø36-48) t.max:17	ZCC-CT	25	25	150	26.5	17	36	48	Sağ	ZTFD 3C	8681408034525
SM34532	2525 BDKT-LT ZT3C (Ø48-70) t.max:17	ZCC-CT	25	25	150	26.5	17	48	70	Sağ	ZTFD 3C	8681408034532
SM34549	2525 BDKT-LT ZT3C (Ø70-110) t.max:17	ZCC-CT	25	25	150	26.5	17	70	110	Sağ	ZTFD 3C	8681408034549
SM34556	2525 BDKT-LT ZT3C (Ø100-150) t.max:17	ZCC-CT	25	25	150	26.5	17	100	150	Sağ	ZTFD 3C	8681408034556
SM34563	2525 BDKT-LT ZT3C (Ø150-200) t.max:17	ZCC-CT	25	25	150	26.5	17	150	200	Sağ	ZTFD 3C	8681408034563
SM39728	2525 BDKT-LT ZT3C (Ø200-350) t.max:17	ZCC-CT	25	25	150	26.5	17	200	350	Sağ	ZTFD 3C	8681408039728
SM39735	2525 BDKT-LT ZT3C (Ø300-500) t.max:17	ZCC-CT	25	25	150	26.5	17	300	500	Sağ	ZTFD 3C	8681408039735
SM34570	2525 BDKT-LT ZT4C (Ø36-48) t.max:20	ZCC-CT	25	25	150	26.5	20	36	48	Sağ	ZTGD. 4C	8681408034570
SM34587	2525 BDKT-LT ZT4C (Ø48-70) t.max:20	ZCC-CT	25	25	150	26.5	20	48	70	Sağ	ZTGD. 4C	8681408034587
SM34594	2525 BDKT-LT ZT4C (Ø70-110) t.max:20	ZCC-CT	25	25	150	26.5	20	70	110	Sağ	ZTGD. 4C	8681408034594
SM34600	2525 BDKT-LT ZT4C (Ø100-150) t.max:20	ZCC-CT	25	25	150	26.5	20	100	150	Sağ	ZTGD. 4C	8681408034600
SM34617	2525 BDKT-LT ZT4C (Ø150-200) t.max:20	ZCC-CT	25	25	150	26.5	20	150	200	Sağ	ZTGD. 4C	8681408034617
SM39742	2525 BDKT-LT ZT4C (Ø200-350) t.max:20	ZCC-CT	25	25	150	26.5	20	200	350	Sağ	ZTGD. 4C	8681408039742
SM39759	2525 BDKT-LT ZT4C (Ø300-500) t.max:20	ZCC-CT	25	25	150	26.5	20	300	500	Sağ	ZTGD. 4C	8681408039759
