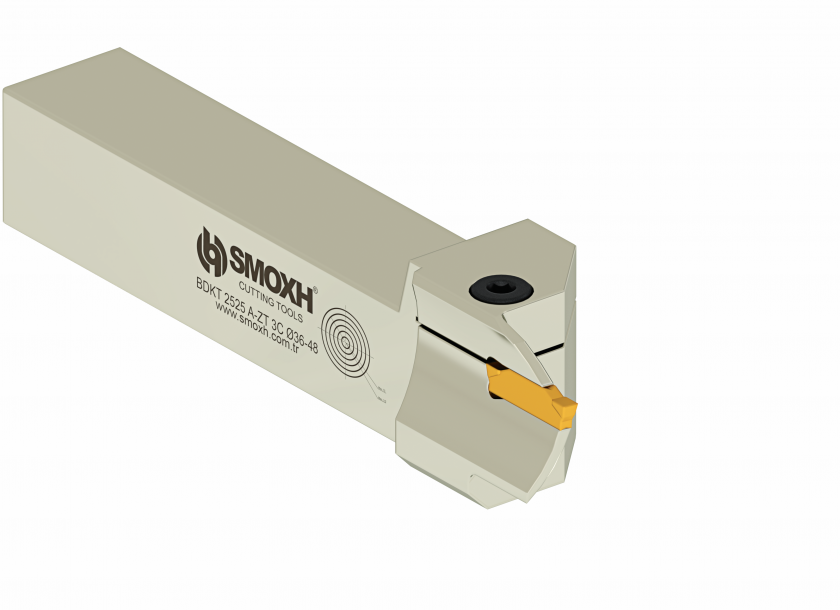

    External Diameter Face Grooving Tools - A TYPE FACE GROOVING BDKT-A ZT.. ZCC-CT

    A TYPE FACE GROOVING BDKT-A ZT.. ZCC-CT

    External Diameter Face Grooving Tools

    External Diameter Face Grooving Tools

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      A TYPE FACE GROOVING BDKT-A ZT.. ZCC-CT Diamond

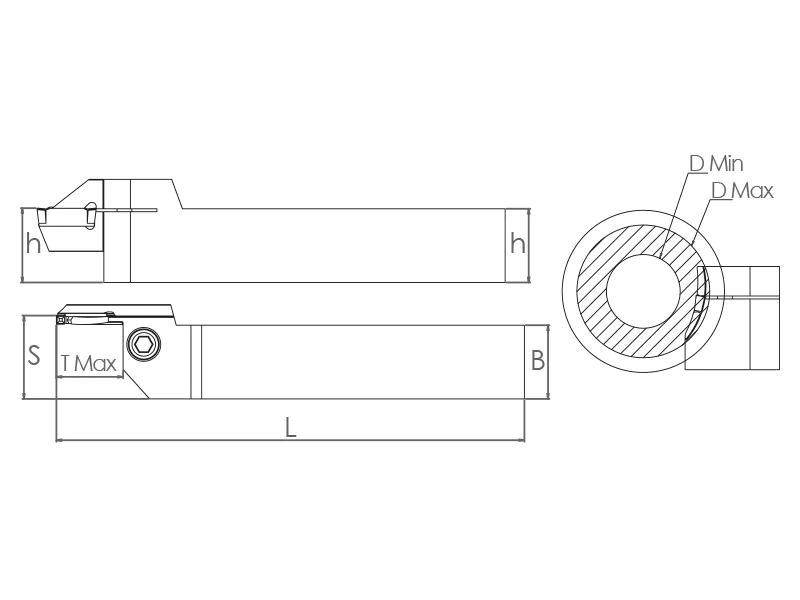

    Brand    		 h B L S t Max ØD Min ØD Max Direction External Diameter Face Grooving Tools
    SM34402 2525 BDKT-A ZT3C (Ø24-36) t max:17 ZCC-CT 25 25 150 26.5 17 24 36 Sağ ZTFD 3C 8681408034402
    SM62924 2525 BDKT/L-A ZT3C (Ø24-36) t max:17 new ZCC-CT 25 25 150 26.5 17 24 36 Sol ZTFD 3C 8681408062924
    SM34419 2525 BDKT-A ZT3C (Ø36-48) t max:17 ZCC-CT 25 25 150 26.5 17 36 48 Sağ ZTFD 3C 8681408034419
    SM63143 2525 BDKT/L-A ZT3C (Ø36-48) t max:17 new ZCC-CT 25 25 150 26.5 17 36 48 Sol ZTFD 3C 8681408063143
    SM34426 2525 BDKT-A ZT3C (Ø48-70) t max:17 ZCC-CT 25 25 150 26.5 17 48 70 Sağ ZTFD 3C 8681408034426
    SM63150 2525 BDKT/L-A ZT3C (Ø48-70) t max:17 new ZCC-CT 25 25 150 26.5 17 48 70 Sol ZTFD 3C 8681408063150
    SM34433 2525 BDKT-A ZT3C (Ø70-110) t max:17 ZCC-CT 25 25 150 26.5 17 70 110 Sağ ZTFD 3C 8681408034433
    SM63167 2525 BDKT/L-A ZT3C (Ø70-110) t max:17 new ZCC-CT 25 25 150 26.5 17 70 110 Sol ZTFD 3C 8681408063167
    SM34440 2525 BDKT-A ZT3C (Ø100-150) t max:17 ZCC-CT 25 25 150 26.5 17 100 150 Sağ ZTFD 3C 8681408034440
    SM63174 2525 BDKT/L-A ZT3C (Ø100-150) t max:17 new ZCC-CT 25 25 150 26.5 17 100 150 Sol ZTFD 3C 8681408063174
    SM34457 2525 BDKT-A ZT3C (Ø150-200) t max:17 ZCC-CT 25 25 150 26.5 17 150 200 Sağ ZTFD 3C 8681408034457
    SM62931 2525 BDKT/L-A ZT3C (Ø150-200) t max:17 new ZCC-CT 25 25 150 26.5 17 150 200 Sol ZTFD 3C 8681408062931
    SM39810 2525 BDKT-A ZT3C (Ø200-350) t max:17 ZCC-CT 25 25 150 26.5 17 200 350 Sağ ZTFD 3C 8681408039810
    SM62986 2525 BDKT/L-A ZT3C (Ø200-350) t max:17 new ZCC-CT 25 25 150 26.5 17 200 350 Sol ZTFD 3C 8681408062986
    SM39827 2525 BDKT-A ZT3C (Ø300-500) t max:17 ZCC-CT 25 25 150 26.5 17 300 500 Sağ ZTFD 3C 8681408039827
    SM63273 2525 BDKT/L-A ZT3C (Ø300-500) t max:17 new ZCC-CT 25 25 150 26.5 17 300 500 Sol ZTFD 3C 8681408063273
    SM34464 2525 BDKT-A ZT4C (Ø36-48) t max:22 ZCC-CT 25 25 150 26.5 22 36 48 Sağ ZTGD. 4C 8681408034464
    SM62948 2525 BDKT/L-A ZT4C (Ø36-48) t max:22 new ZCC-CT 25 25 150 26.5 22 36 48 Sol ZTGD. 4C 8681408062948
    SM34471 2525 BDKT-A ZT4C (Ø48-70) T.max:22 ZCC-CT 25 25 150 26.5 22 48 70 Sağ ZTGD. 4C 8681408034471
    SM63181 2525 BDKT/L-A ZT4C (Ø48-70) T.max:22 new ZCC-CT 25 25 150 26.5 22 48 70 Sol ZTGD. 4C 8681408063181
    SM34488 2525 BDKT-A ZT4C (Ø70-110) t max:22 ZCC-CT 25 25 150 26.5 22 70 110 Sağ ZTGD. 4C 8681408034488
    SM63198 2525 BDKT/L-A ZT4C (Ø70-110) t max:22 new ZCC-CT 25 25 150 26.5 22 70 110 Sol ZTGD. 4C 8681408063198
    SM34495 2525 BDKT-A ZT4C (Ø100-150) t.max:22 ZCC-CT 25 25 150 26.5 22 100 150 Sağ ZTGD. 4C 8681408034495
    SM63204 2525 BDKT/L-A ZT4C (Ø100-150) t.max:22 new ZCC-CT 25 25 150 26.5 22 100 150 Sol ZTGD. 4C 8681408063204
    SM34501 2525 BDKT-A ZT4C (Ø150-200) t max:22 ZCC-CT 25 25 150 26.5 22 150 200 Sağ ZTGD. 4C 8681408034501
    SM63211 2525 BDKT/L-A ZT4C (Ø150-200) t max:22 new ZCC-CT 25 25 150 26.5 22 150 200 Sol ZTGD. 4C 8681408063211
    SM39834 2525 BDKT-A ZT4C (Ø200-350) t max:22 ZCC-CT 25 25 150 26.5 22 200 350 Sağ ZTGD. 4C 8681408039834
    SM63280 2525 BDKT/L-A ZT4C (Ø200-350) t max:22 new ZCC-CT 25 25 150 26.5 22 200 350 Sol ZTGD. 4C 8681408063280
    SM39841 2525 BDKT-A ZT4C (Ø300-500) t max:22 ZCC-CT 25 25 150 26.5 22 300 500 Sağ ZTGD. 4C 8681408039841
    SM63297 2525 BDKT/L-A ZT4C (Ø300-500) t max:22 new ZCC-CT 25 25 150 26.5 22 300 500 Sol ZTGD. 4C 8681408063297
