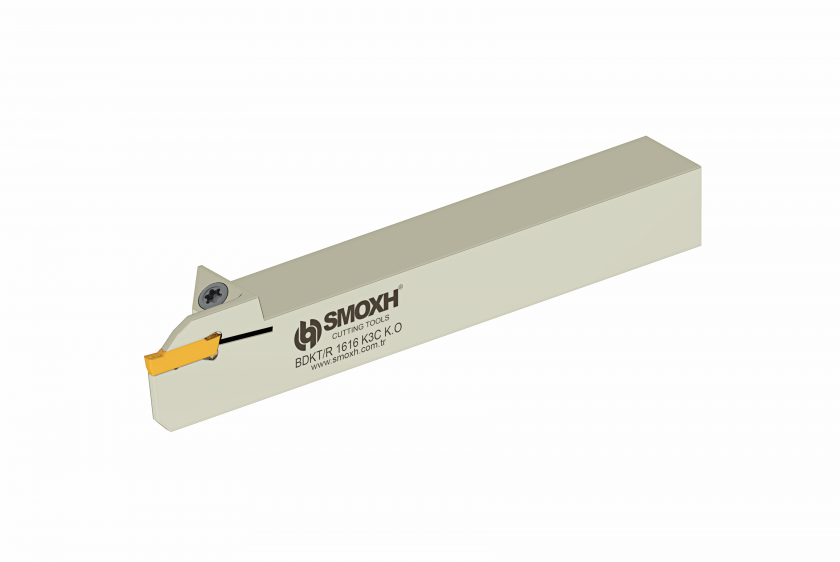

Swiss Type External Diameter Grooving Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

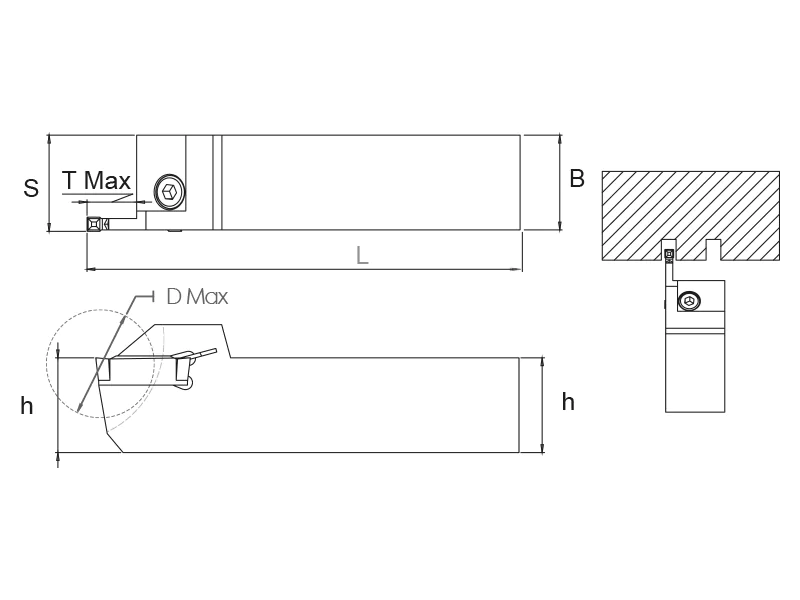

	BDKT R/L KRLY MGM. SWISS TYPE	Diamond Brand	h	B	L	S	t Max	D Max	Direction	Weight (Kg)
SM48317	1010 BDKT/R K2C K.O t max:10	KRLY	10	10	120	10.2	10	24	Sağ	0.14	MGM. 2C	8681408048317
SM48324	1010 BDKT/L K2C K.O t max:10	KRLY	10	10	120	10.2	10	24	Sol	0.14	MGM. 2C	8681408048324
SM48331	1212 BDKT/R K2C K.O t max:10	KRLY	12	12	120	12.2	10	34	Sağ	0.14	MGM. 2C	8681408048331
SM48348	1212 BDKT/L K2C K.O t max:10	KRLY	12	12	120	12.2	10	34	Sol	0.14	MGM. 2C	8681408048348
SM48362	1616 BDKT/R K2C K.O t max:16	KRLY	16	16	120	16.2	16	36	Sağ	0.31	MGM. 2C	8681408048362
SM48355	1616 BDKT/L K2C K.O t max:16	KRLY	16	16	120	16.2	16	36	Sol	0.31	MGM. 2C	8681408048355
SM48386	1010 BDKT/R K3C K.O t max:10	KRLY	10	10	120	10.2	10	24	Sağ	0.14	MGM. 3C	8681408048386
SM48379	1010 BDKT/L K3C K.O t max:10	KRLY	10	10	120	10.2	10	24	Sol	0.14	MGM. 3C	8681408048379
SM48393	1212 BDKT/R K3C K.O t max:10	KRLY	12	12	120	12.2	10	34	Sağ	0.14	MGM. 3C	8681408048393
SM48409	1212 BDKT/L K3C K.O t max:10	KRLY	12	12	120	12.2	10	34	Sol	0.14	MGM. 3C	8681408048409
SM48416	1616 BDKT/R K3C K.O t max:16	KRLY	16	16	120	16.2	16	36	Sağ	0.31	MGM. 3C	8681408048416
SM48423	1616 BDKT/L K3C K.O t max:16	KRLY	16	16	120	16.2	16	36	Sol	0.31	MGM. 3C	8681408048423

Swiss Type External Diameter Grooving Tools - BDKT R/L KRLY MGM. SWISS TYPE
