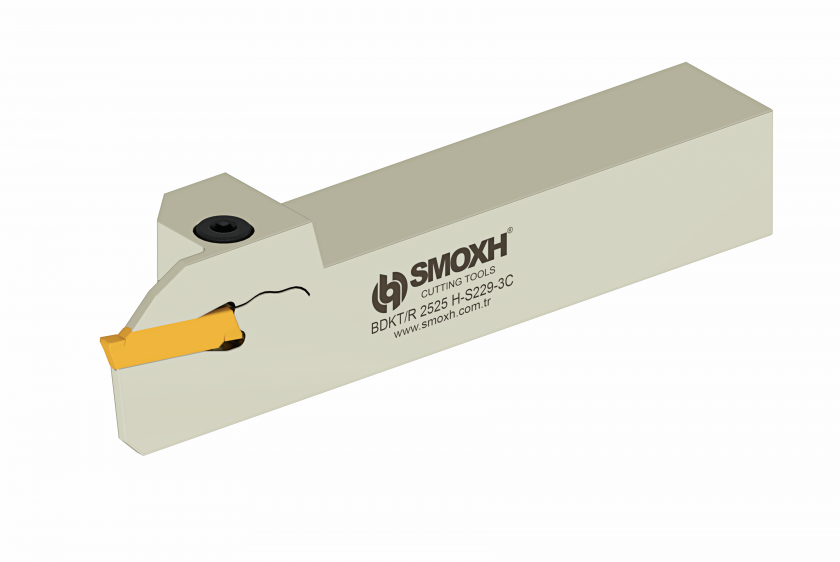

External Diameter Grooving Tools (HRN)

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

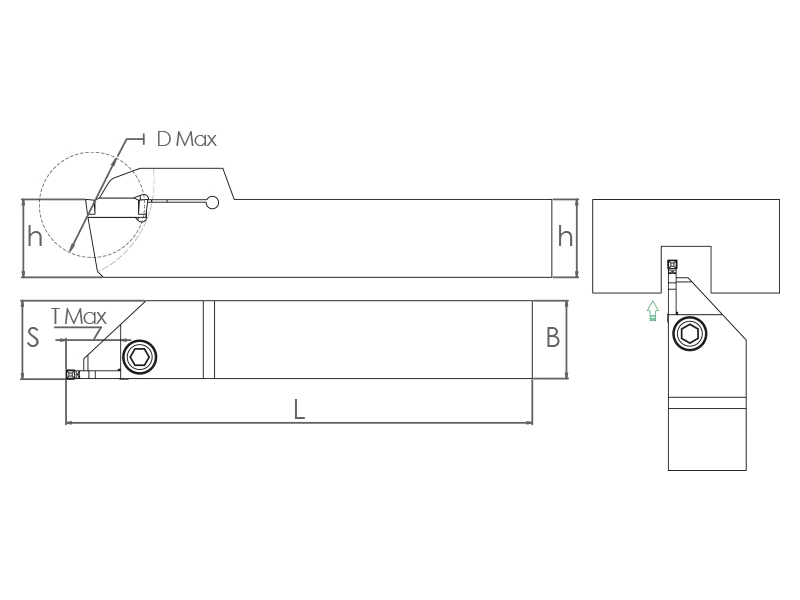

	BDKT R/L HRN S229	Diamond Brand	h	B	L	S	t Max	D Max	Direction	Weight (Kg)
SM08878	2020 BDKT/R H2C-S229-T18	HORN	20	20	125	20.5	18	40	Sağ	0.42	S229-2C	8681408008878
SM08953	2020 BDKT/L H2C-S229-T18	HORN	20	20	125	20.5	18	40	Sol	0.42	S229-2C	8681408008953
SM08885	2525 BDKT/R H2C-S229-T18	HORN	25	25	150	25.5	18	46	Sağ	0.73	S229-2C	8681408008885
SM08960	2525 BDKT/L H2C-S229-T18	HORN	25	25	150	25.5	18	46	Sol	0.73	S229-2C	8681408008960
SM08892	2020 BDKT/R H3C-S229-T20	HORN	20	20	125	20.5	20	44	Sağ	0.42	S229-3C	8681408008892
SM08977	2020 BDKT/L H3C-S229-T20	HORN	20	20	125	20.5	20	44	Sol	0.42	S229-3C	8681408008977
SM08908	2525 BDKT/R H3C-S229-T22	HORN	25	25	150	25.5	22	50	Sağ	0.73	S229-3C	8681408008908
SM08984	2525 BDKT/L H3C-S229-T22	HORN	25	25	150	25.5	22	50	Sol	0.73	S229-3C	8681408008984
SM08915	2020 BDKT/R H4C-S229-T20	HORN	20	20	125	20.5	20	44	Sağ	0.42	S229-4C	8681408008915
SM08991	2020 BDKT/L H4C-S229-T20	HORN	20	20	125	20.5	20	44	Sol	0.42	S229-4C	8681408008991
SM08922	2525 BDKT/R H4C-S229-T22	HORN	25	25	150	25.5	22	50	Sağ	0.73	S229-4C	8681408008922
SM09004	2525 BDKT/L H4C-S229-T22	HORN	25	25	150	25.5	22	50	Sol	0.73	S229-4C	8681408009004
SM08946	2020 BDKT/R H5C-S229-T20	HORN	20	20	125	20.5	20	44	Sağ	0.42	S229-5C	8681408008946
SM09011	2020 BDKT/L H5C-S229-T20	HORN	20	20	125	20.5	20	44	Sol	0.42	S229-5C	8681408009011
SM08939	2525 BDKT/R H5C-S229-T25	HORN	25	25	150	25.5	25	54	Sağ	0.73	S229-5C	8681408008939
SM09028	2525 BDKT/L H5C-S229-T25	HORN	25	25	150	25.5	25	54	Sol	0.73	S229-5C	8681408009028

External Diameter Grooving Tools (HRN) - BDKT R/L HRN S229
