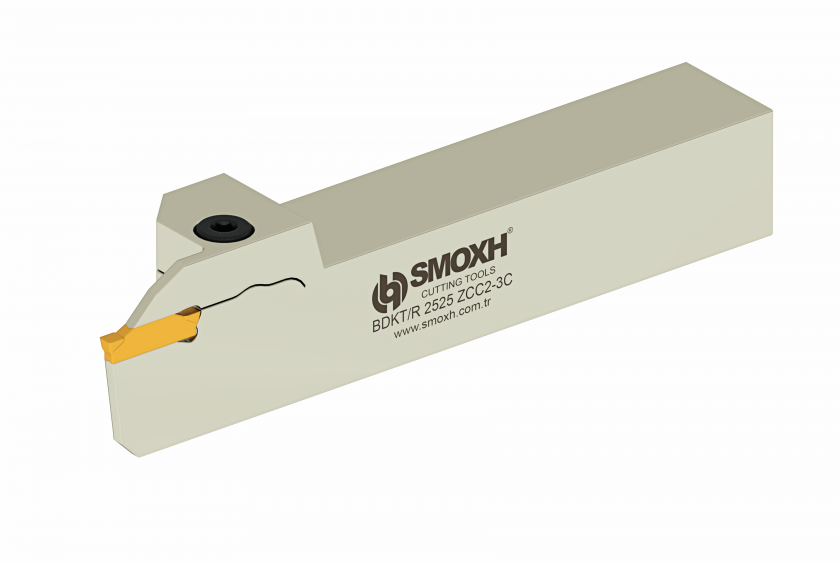

    External Diameter Grooving Tools - BDKT-R/L ZCC-CT ZT..

    BDKT-R/L ZCC-CT ZT..

    External Diameter Grooving Tools

    External Diameter Grooving Tools

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      BDKT-R/L ZCC-CT ZT.. Diamond

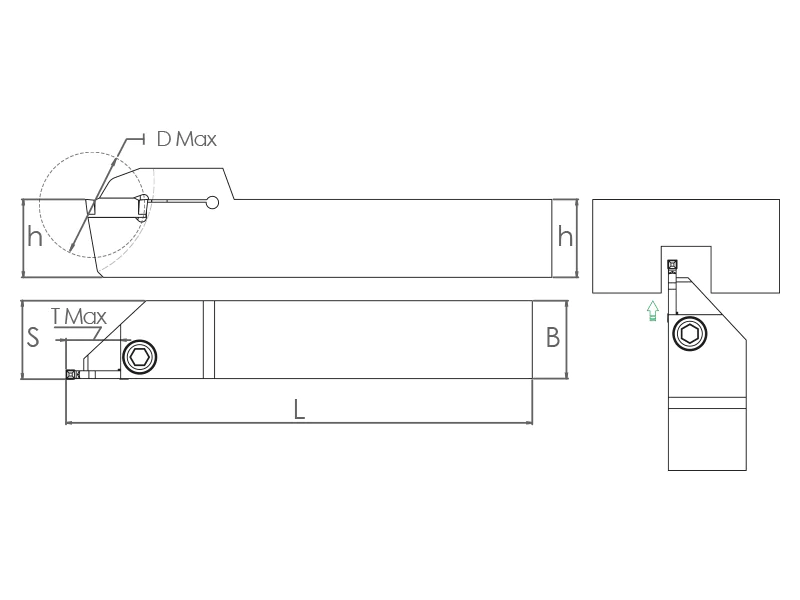

    Brand    		 h B L S t Max D Max Direction Weight
    (Kg)    		 External Diameter Grooving Tools
    SM10277 1616 BDKT/R ZCC2-2C-T18 ZCC-CT 16 16 125 16.3 18 40 Sağ 0.31 ZTDB 2C 8681408010277
    SM10376 1616 BDKT/L ZCC2-2C-T18 ZCC-CT 16 16 125 16.3 18 40 Sol 0.31 ZTDB 2C 8681408010376
    SM10253 2020 BDKT/R ZCC2-2C-T18 ZCC-CT 20 20 125 20.3 18 40 Sağ 0.42 ZTDB 2C 8681408010253
    SM10352 2020 BDKT/L ZCC2-2C-T18 ZCC-CT 20 20 125 20.3 18 40 Sol 0.42 ZTDB 2C 8681408010352
    SM10260 2525 BDKT/R ZCC2-2C-T18 ZCC-CT 25 25 150 25.3 18 46 Sağ 0.73 ZTDB 2C 8681408010260
    SM10369 2525 BDKT/L ZCC2-2C-T18 ZCC-CT 25 25 150 25.3 18 46 Sol 0.73 ZTDB 2C 8681408010369
    SM10307 1616 BDKT/R ZCC2-3C-T18 ZCC-CT 16 16 125 16.5 18 40 Sağ 0.31 ZTFD 3C 8681408010307
    SM10406 1616 BDKT/L ZCC2-3C-T18 ZCC-CT 16 16 125 16.5 18 40 Sol 0.31 ZTFD 3C 8681408010406
    SM10284 2020 BDKT/R ZCC2-3C-T20 ZCC-CT 20 20 125 20.3 20 44 Sağ 0.42 ZTFD 3C 8681408010284
    SM10383 2020 BDKT/L ZCC2-3C-T20 ZCC-CT 20 20 125 20.3 20 44 Sol 0.42 ZTFD 3C 8681408010383
    SM10291 2525 BDKT/R ZCC2-3C-T22 ZCC-CT 25 25 150 25.3 22 50 Sağ 0.73 ZTFD 3C 8681408010291
    SM10390 2525 BDKT/L ZCC2-3C-T22 ZCC-CT 25 25 150 25.3 22 50 Sol 0.73 ZTFD 3C 8681408010390
    SM10314 2020 BDKT/R ZCC2-4C-T20 ZCC-CT 20 20 125 20.5 20 44 Sağ 0.42 ZTGD 4C 8681408010314
    SM10413 2020 BDKT/L ZCC2-4C-T20 ZCC-CT 20 20 125 20.5 20 44 Sol 0.42 ZTGD 4C 8681408010413
    SM10321 2525 BDKT/R ZCC2-4C-T22 ZCC-CT 25 25 150 25.5 22 50 Sağ 0.73 ZTGD 4C 8681408010321
    SM10420 2525 BDKT/L ZCC2-4C-T22 ZCC-CT 25 25 150 25.5 22 50 Sol 0.73 ZTGD 4C 8681408010420
    SM10338 2020 BDKT/R ZCC2-5C-T22 ZCC-CT 20 20 125 20.5 22 50 Sağ 0.42 ZTHD 5C 8681408010338
    SM10437 2020 BDKT/L ZCC2-5C-T22 ZCC-CT 20 20 125 20.5 22 50 Sol 0.42 ZTHD 5C 8681408010437
    SM10345 2525 BDKT/R ZCC2-5C-T25 ZCC-CT 25 25 150 25.5 25 84 Sağ 0.73 ZTHD 5C 8681408010345
    SM10444 2525 BDKT/L ZCC2-5C-T25 ZCC-CT 25 25 150 25.5 25 84 Sol 0.73 ZTHD 5C 8681408010444
