Smoxh Cutting Tools

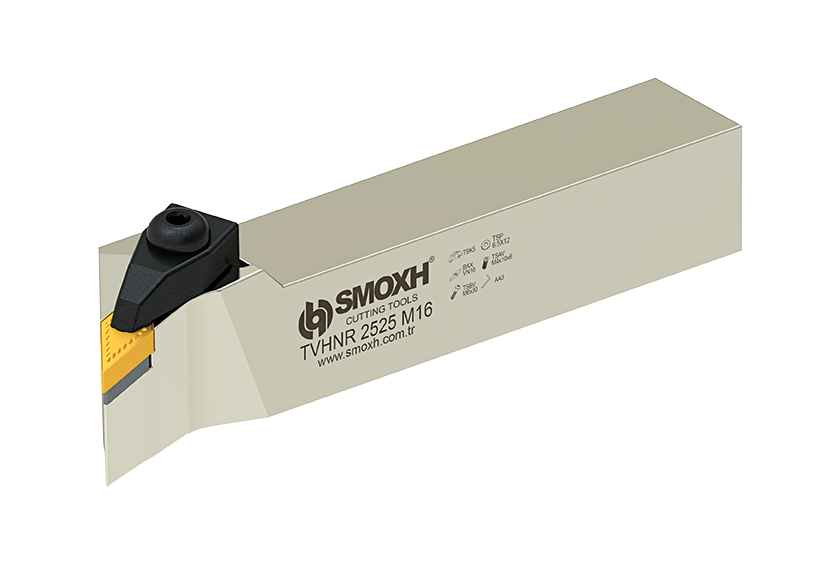

T System External Diameter Turning Tool - TVHNR/L (107.5)

TVHNR/L (107.5)

T System External Diameter Turning Tool

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TVHNR/L (107.5) Insert
Brand
Approach
Angle

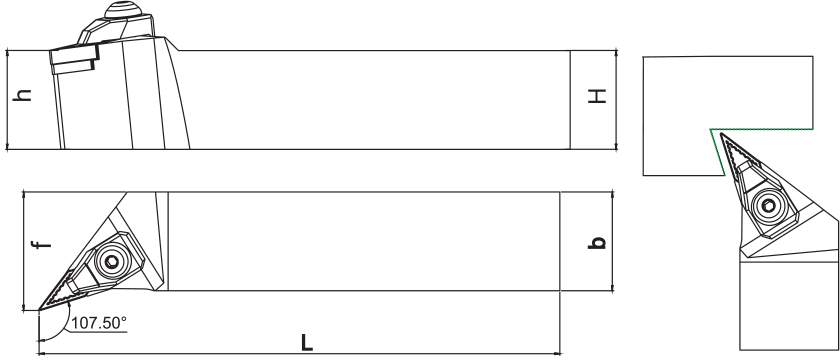

Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM23796 TVHNR 2020 K16 ISO 107.5° R 20 20 125 26 0.46 VNM.1604.. 8681408023796
SM23819 TVHNR 2525 M16 ISO 107.5° R 25 25 150 32 0.79 VNM.1604.. 8681408023819
SM27114 TVHNR 3232 P16 ISO 107.5° R 32 32 170 47 1.38 VNM.1604.. 8681408027114
SM23802 TVHNL 2020 K16 ISO 107.5° L 20 20 125 26 0.46 VNM.1604.. 8681408023802
SM23826 TVHNL 2525 M16 ISO 107.5° L 25 25 150 32 0.79 VNM.1604.. 8681408023826
SM27121 TVHNL 3232 P16 ISO 107.5° L 32 32 170 47 1.38 VNM.1604.. 8681408027121

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

✅ Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

✅ Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

✅ Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

✅ Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

✅ Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

✅ Negative Rake Angle Design
Ensures durability under high cutting forces.


Need More Information? Contact Us
