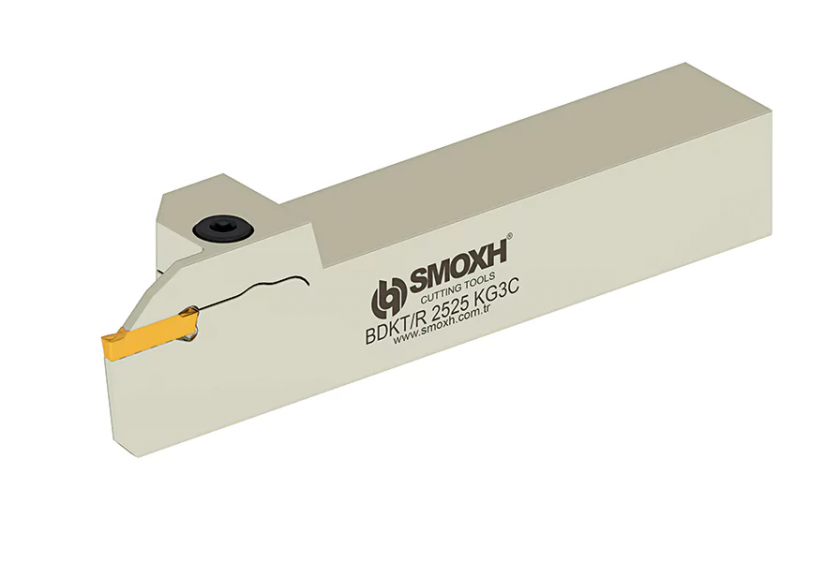

    External Diameter Grooving Tools - BDKT-R/L-KGM (KRLY)

    BDKT-R/L-KGM (KRLY)

    External Diameter Grooving Tools

    External Diameter Grooving Tools

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      BDKT-R/L-KGM (KRLY) Diamond

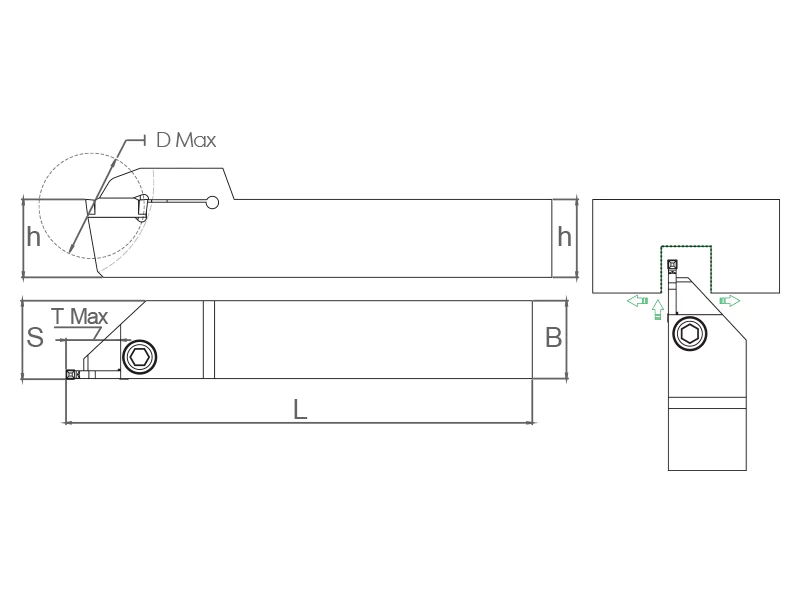

    Brand    		 Fig. h B L S t Max D Max Direction Weight
    (Kg)    		 External Diameter Grooving Tools
    SM24656 1212 BDKT/R KG2C-T15 KRLY - 12 12 100 12.3 15 34 Sağ 0.14 KGM.. 2C 8681408024656
    SM24649 1212 BDKT/L KG2C-T15 KRLY - 12 12 100 12.3 15 34 Sol 0.14 KGM.. 2C 8681408024649
    SM25011 1616 BDKT/R KG2C-T18 KRLY - 16 16 125 16.3 18 40 Sağ 0.31 KGM.. 2C 8681408025011
    SM25059 1616 BDKT/L KG2C-T18 KRLY - 16 16 125 16.3 18 40 Sol 0.31 KGM.. 2C 8681408025059
    SM25004 2020 BDKT/R KG2C-T18 KRLY - 20 20 125 20.2 18 40 Sağ 0.42 KGM.. 2C 8681408025004
    SM25042 2020 BDKT/L KG2C-T18 KRLY - 20 20 125 20.2 18 40 Sol 0.42 KGM.. 2C 8681408025042
    SM24403 2525 BDKT/R KG2C-T18 KRLY - 25 25 150 25.2 18 46 Sağ 0.73 KGM.. 2C 8681408024403
    SM25097 2525 BDKT/L KG2C-T18 KRLY - 25 25 150 25.2 18 46 Sol 0.73 KGM.. 2C 8681408025097
    SM24991 2020 BDKT/R KG3C-T20 KRLY - 20 20 125 25.2 20 44 Sağ 0.42 KGM.. 3C 8681408024991
    SM25035 2020 BDKT/L KG3C-T20 KRLY - 20 20 125 25.2 20 44 Sol 0.42 KGM.. 3C 8681408025035
    SM24410 2525 BDKT/R KG3C-T22 KRLY - 25 25 150 25.2 22 50 Sağ 0.73 KGM.. 3C 8681408024410
    SM25080 2525 BDKT/L KG3C-T22 KRLY - 25 25 150 25.2 22 50 Sol 0.73 KGM.. 3C 8681408025080
    SM24984 2020 BDKT/R KG4C-T20 KRLY - 20 20 125 20.2 20 44 Sağ 0.42 KGM.. 4C 8681408024984
    SM25028 2020 BDKT/L KG4C-T20 KRLY - 20 20 125 20.2 20 44 Sol 0.42 KGM.. 4C 8681408025028
    SM24427 2525 BDKT/R KG4C-T22 KRLY - 25 25 150 25.2 22 50 Sağ 0.73 KGM.. 4C 8681408024427
    SM25073 2525 BDKT/L KG4C-T22 KRLY - 25 25 150 25.2 22 50 Sol 0.73 KGM.. 4C 8681408025073
    SM24434 2525 BDKT/R KG5C-T25 KRLY - 25 25 150 25.2 25 54 Sağ 0.73 KGM.. 5C 8681408024434
    SM25066 2525 BDKT/L KG5C-T25 KRLY - 25 25 150 25.2 25 54 Sol 0.73 KGM.. 5C 8681408025066
    SM24632 2525 BDKT/R KG6C-T25 KRLY - 25 25 150 25.2 25 54 Sağ 0.73 KGM.. 6C 8681408024632
    SM25103 2525 BDKT/L KG6C-T25 KRLY - 25 25 150 25.2 25 54 Sol 0.73 KGM.. 6C 8681408025103
