Smoxh Cutting Tools

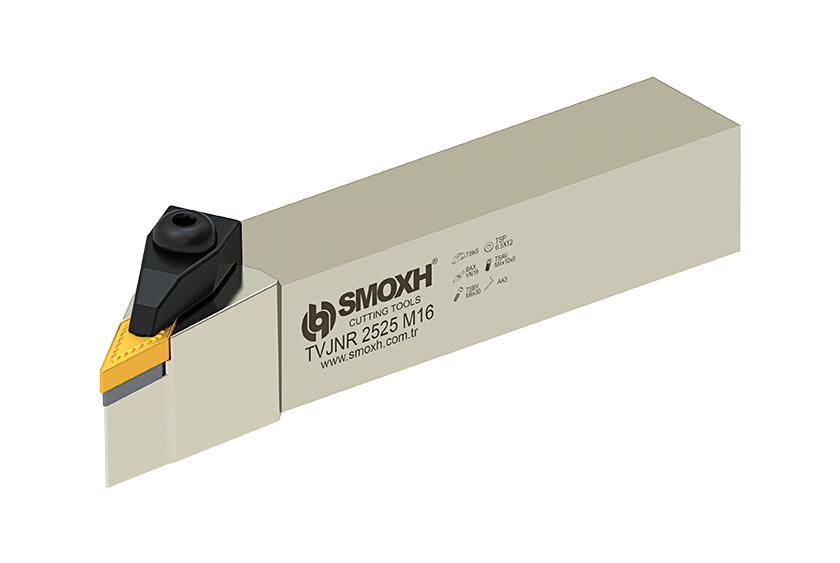

T System External Diameter Turning Tool - TVJNR/L (93)

TVJNR/L (93)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

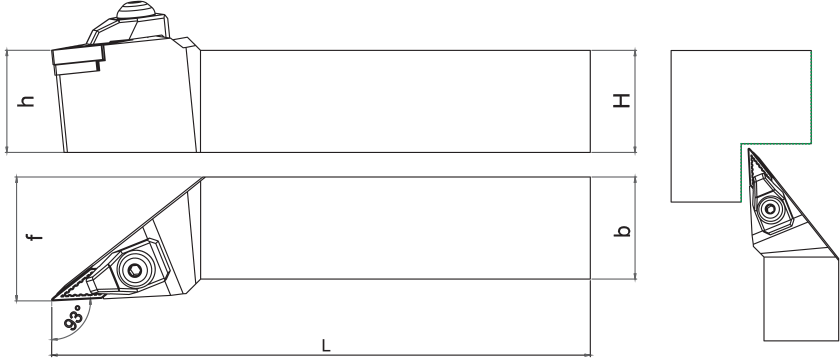

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TVJNR/L (93) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM01015 TVJNR 2020 K16 ISO 93° R 20 20 125 26 0.46 VNM.1604.. 8681408001015
SM01039 TVJNR 2525 M16 ISO 93° R 25 25 150 32 0.79 VNM.1604.. 8681408001039
SM01060 TVJNR 3232 P16 ISO 93° R 32 32 170 38 1.38 VNM.1604.. 8681408001060
SM32514 TVJNR 4040 S16 ISO 93° R 40 40 250 47 3.12 VNM.1604.. 8681408032514
SM01084 TVJNL 2020 K16 ISO 93° L 20 20 125 26 0.46 VNM.1604.. 8681408001084
SM01046 TVJNL 2525 M16 ISO 93° L 25 25 150 32 0.79 VNM.1604.. 8681408001046
SM01077 TVJNL 3232 P16 ISO 93° L 32 32 170 38 1.38 VNM.1604.. 8681408001077
SM32521 TVJNL 4040 S16 ISO 93° L 40 40 250 47 3.12 VNM.1604.. 8681408032521
