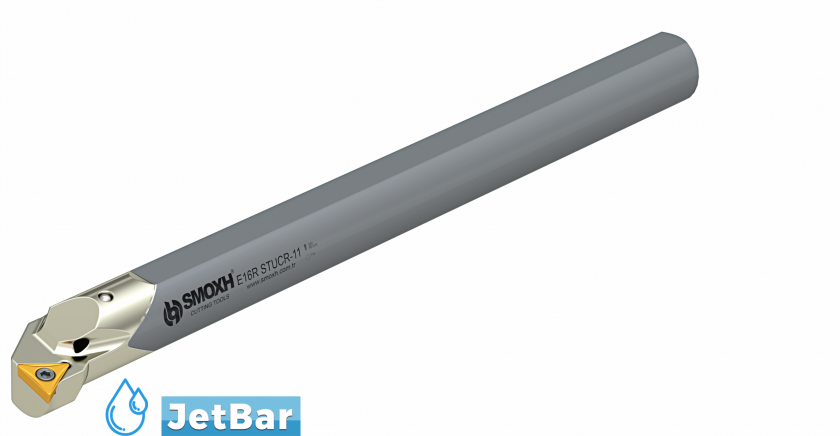

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions									Master Insert	Barcode

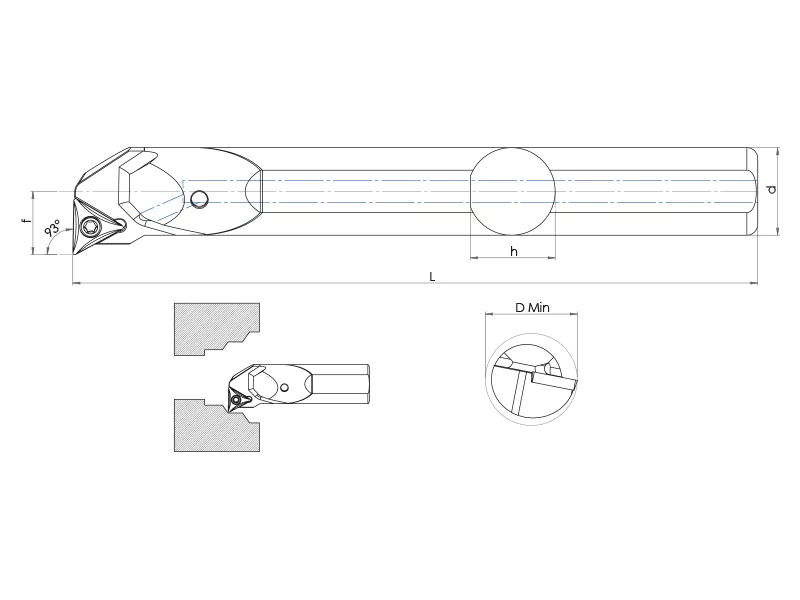

	E-STUCR/L (93)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM60234	E10M STUCR-09	ISO	10	9.5	150	8	-	≥13	Sağ	93°	TCM.0902..	8681408060234
SM60272	E10M STUCL-09	ISO	10	9.5	150	8	-	≥13	Sol	93°	TCM.0902..	8681408060272
SM60241	E12Q STUCR-09	ISO	12	11	180	10	-	≥16	Sağ	93°	TCM.0902..	8681408060241
SM60289	E12Q STUCL-09	ISO	12	11	180	10	-	≥16	Sol	93°	TCM.0902..	8681408060289
SM60258	E12Q STUCR-11	ISO	12	11	180	10	-	≥21	Sağ	93°	TCM.1102..	8681408060258
SM60296	E12Q STUCL-11	ISO	12	11	180	10	-	≥21	Sol	93°	TCM.1102..	8681408060296
SM60265	E16R STUCR-11	ISO	16	15	200	13	-	≥25	Sağ	93°	TCM.1102..	8681408060265
SM60302	E16R STUCL-11	ISO	16	15	200	13	-	≥25	Sol	93°	TCM.1102..	8681408060302

S System Internal Diameter Turning Tools - E-STUCR/L (93)
