Smoxh Cutting Tools

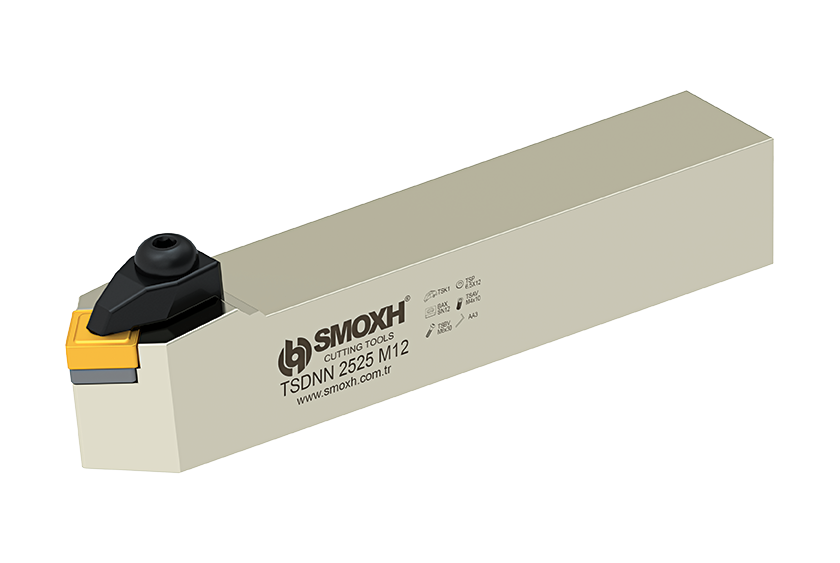

T System External Diameter Turning Tool - TSDNN (45)

TSDNN (45)

T System External Diameter Turning Tool

Technical Specifications

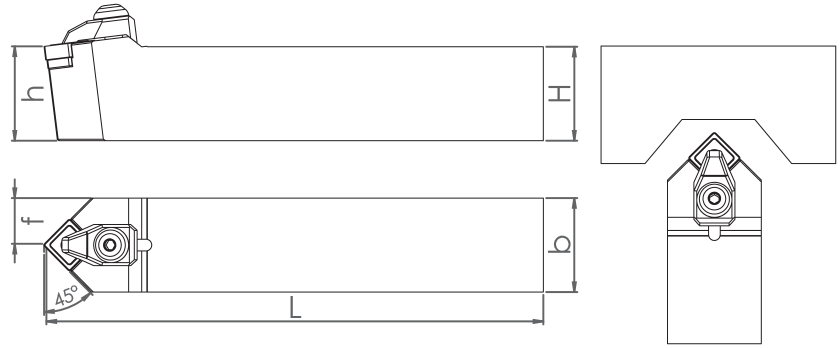

Ordering Code Item Designation Dimensions Master Insert Barcode
  TSDNN (45) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00568 TSDNN 2020 K12 ISO 45° N 20 20 125 10 0.46 SNM.1204.. 8681408000568
SM00599 TSDNN 2525 M12 ISO 45° N 25 25 150 12.5 0.79 SNM.1204.. 8681408000599
SM00629 TSDNN 3232 P12 ISO 45° N 32 32 170 16 1.38 SNM.1204.. 8681408000629
SM00742 TSDNN 2525 M15 ISO 45° N 25 25 150 12.5 0.79 SNM.1506.. 8681408000742
SM00773 TSDNN 3232 P15 ISO 45° N 32 32 170 16 1.38 SNM.1506.. 8681408000773
SM00728 TSDNN 4040 S15 ISO 45° N 40 40 250 20 3.12 SNM.1506.. 8681408000728

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

✅ Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

✅ Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

✅ Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

✅ Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

✅ Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

✅ Negative Rake Angle Design
Ensures durability under high cutting forces.
