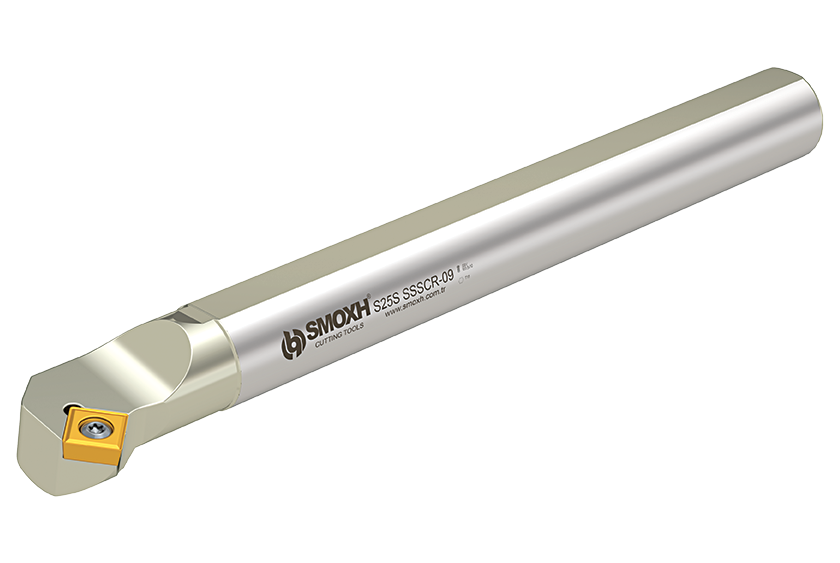

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

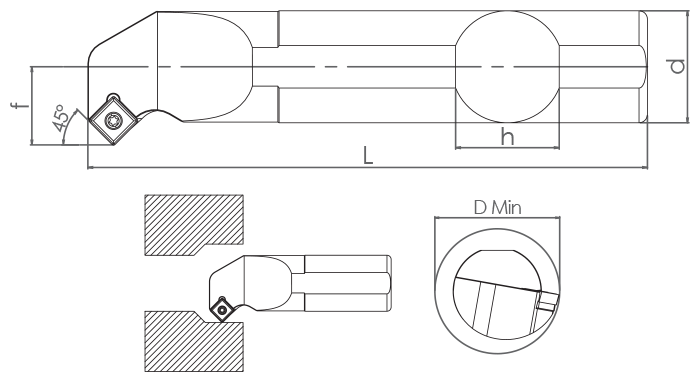

	SSSCR/L (45)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM07512	S16P SSSCR-09	ISO	16	15	170	13	-	≥21	Sağ	45°	0.28	SCM. 09T3..	8681408007512
SM07543	S16P SSSCL-09	ISO	16	15	170	13	-	≥21	Sol	45°	0.28	SCM. 09T3..	8681408007543
SM07529	S20R SSSCR-09	ISO	20	18	200	15	-	≥25	Sağ	45°	0.49	SCM. 09T3..	8681408007529
SM07550	S20R SSSCL-09	ISO	20	18	200	15	-	≥25	Sol	45°	0.49	SCM. 09T3..	8681408007550
SM07536	S25S SSSCR-09	ISO	25	23	250	19.5	-	≥32	Sağ	45°	0.94	SCM. 09T3..	8681408007536
SM07574	S25S SSSCL-09	ISO	25	23	250	19.5	-	≥32	Sol	45°	0.94	SCM. 09T3..	8681408007574
SM49512	S25S SSSCR-12	ISO	25	23	250	19.5	-	≥32	Sağ	45°	0.94	SCM. 1204..	8681408049512
SM49529	S25S SSSCL-12	ISO	25	23	250	19.5	-	≥32	Sol	45°	0.94	SCM. 1204..	8681408049529
SM07604	S32T SSSCR-12	ISO	32	30	300	22	-	≥40	Sağ	45°	1.79	SCM. 1204..	8681408007604
SM07581	S32T SSSCL-12	ISO	32	30	300	22	-	≥40	Sol	45°	1.79	SCM. 1204..	8681408007581
SM07611	S40U SSSCR-12	ISO	40	37	350	27	-	≥50	Sağ	45°	3.25	SCM. 1204..	8681408007611
SM07598	S40U SSSCL-12	ISO	40	37	350	27	-	≥50	Sol	45°	3.25	SCM. 1204..	8681408007598

S System Internal Diameter Turning Tools - SSSCR/L (45)
