S System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode
	E-SCLCR/L (95)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM60074	E08K SCLCR-06	ISO	8	7.5	125	6	11	≥13	Sağ	95°	CCM. 0602..	8681408060074
SM60135	E08K SCLCL-06	ISO	8	7.5	125	6	11	≥13	Sol	95°	CCM. 0602..	8681408060135
SM60081	E10M SCLCR-06	ISO	10	9.5	150	8	13	≥16	Sağ	95°	CCM. 0602..	8681408060081
SM60142	E10M SCLCL-06	ISO	10	9.5	150	8	13	≥16	Sol	95°	CCM. 0602..	8681408060142
SM60098	E12Q SCLCR-06	ISO	12	11	180	10	16	≥21	Sağ	95°	CCM. 0602..	8681408060098
SM60159	E12Q SCLCL-06	ISO	12	11	180	10	16	≥21	Sol	95°	CCM. 0602..	8681408060159
SM60104	E12Q SCLCR-09	ISO	12	11	180	10	16	≥25	Sağ	95°	CCM. 09T3..	8681408060104
SM60166	E12Q SCLCL-09	ISO	12	11	180	10	16	≥25	Sol	95°	CCM. 09T3..	8681408060166
SM60111	E16R SCLCR-09	ISO	16	15	200	13	21	≥21	Sağ	95°	CCM. 09T3..	8681408060111
SM60173	E16R SCLCL-09	ISO	16	15	200	13	21	≥21	Sol	95°	CCM. 09T3..	8681408060173
SM60128	E20S SCLCR-09	ISO	20	19	250	15	25	≥25	Sağ	95°	CCM. 09T3..	8681408060128
SM60180	E20S SCLCL-09	ISO	20	19	250	15	25	≥25	Sol	95°	CCM. 09T3..	8681408060180

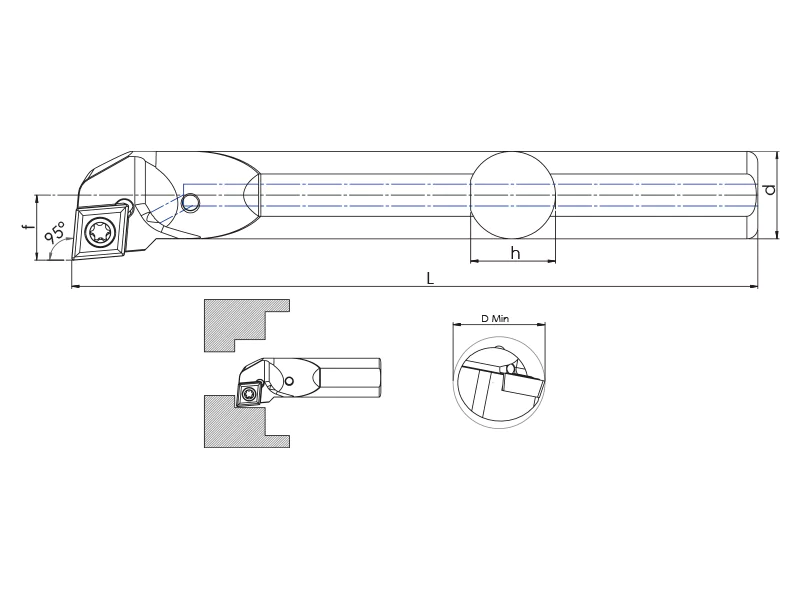

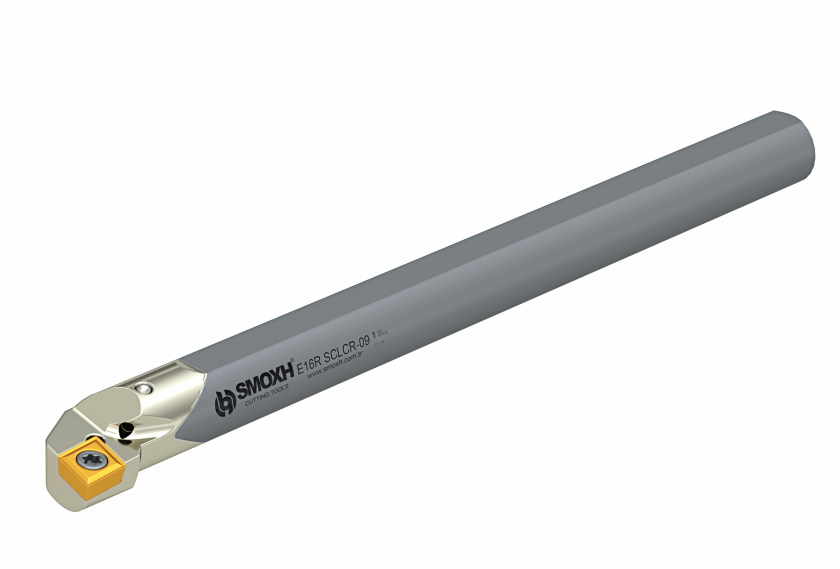

S System Internal Diameter Turning Tools - E-SCLCR/L (95)
