S System Internal Diameter Turning Tools

Ordering Code	Item Designation										Master Insert	Barcode

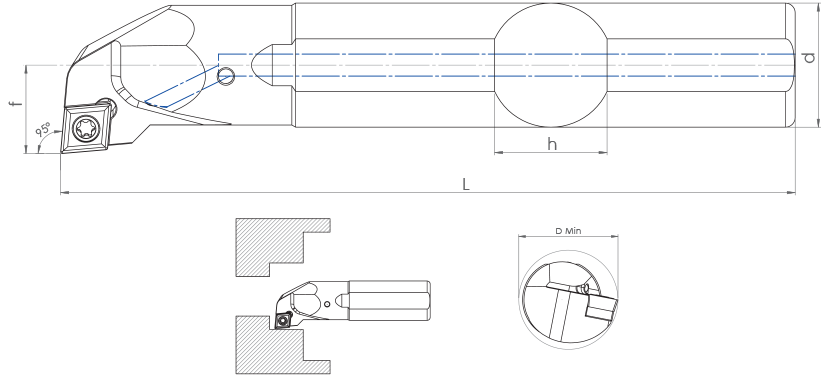

	A-SCLCR/L (95)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle
SM36376	A08H SCLCR-06	ISO	8	7	100	7	-	≥11	Sağ	95°	CCM. 0602..	8681408036376
SM36383	A08H SCLCL-06	ISO	8	7	100	7	-	≥11	Sol	95°	CCM. 0602..	8681408036383
SM36390	A10H SCLCR-06	ISO	10	9	100	8	-	≥13	Sağ	95°	CCM. 0602..	8681408036390
SM36406	A10H SCLCL-06	ISO	10	9	100	8	-	≥13	Sol	95°	CCM. 0602..	8681408036406
SM36413	A12H SCLCR-06	ISO	12	11	100	10	-	≥16	Sağ	95°	CCM. 0602..	8681408036413
SM36420	A12H SCLCL-06	ISO	12	11	100	10	-	≥16	Sol	95°	CCM. 0602..	8681408036420
SM36437	A16M SCLCR-09	ISO	16	15	150	13	-	≥21	Sağ	95°	CCM. 09T3..	8681408036437
SM36444	A16M SCLCL-09	ISO	16	15	150	13	-	≥21	Sol	95°	CCM. 09T3..	8681408036444
SM36451	A20P SCLCR-09	ISO	20	19	170	15	-	≥25	Sağ	95°	CCM. 09T3..	8681408036451
SM36468	A20P SCLCL-09	ISO	20	19	170	15	-	≥25	Sol	95°	CCM. 09T3..	8681408036468

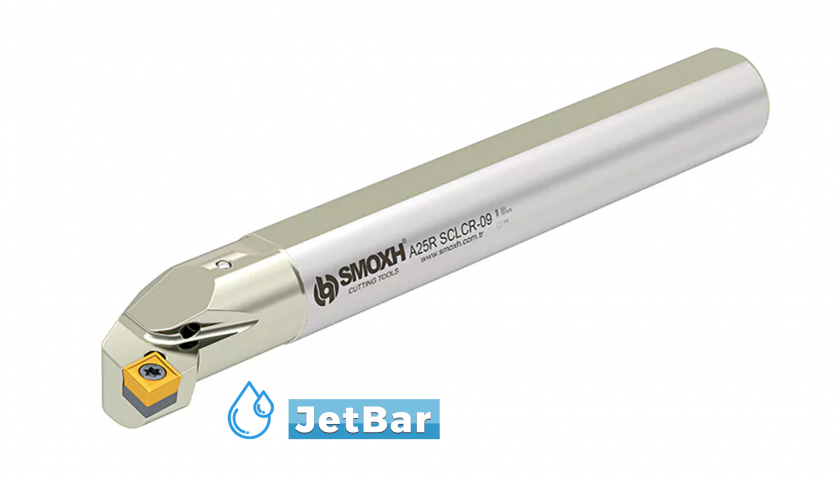

SM36475	A25R SCLCR-09	ISO	25	23	200	19.5	-	≥32	Sağ	95°	CCM. 09T3..	8681408036475
SM36482	A25R SCLCL-09	ISO	25	23	200	19.5	-	≥32	Sol	95°	CCM. 09T3..	8681408036482
SM36499	A32S SCLCR-09	ISO	32	30	250	24	-	≥40	Sağ	95°	CCM. 09T3..	8681408036499
SM36505	A32S SCLCL-09	ISO	32	30	250	24	-	≥40	Sol	95°	CCM. 09T3..	8681408036505

S System Internal Diameter Turning Tools - A-SCLCR/L (95)
