S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

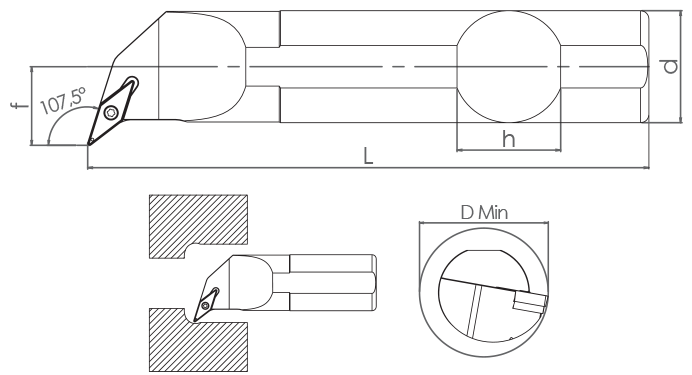

	SVQCR/L (107.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM08649	S16P SVQCR-11	ISO	16	15	170	13	-	≥21	Sağ	107.5°	0.28	VCM. 1103..	8681408008649
SM08694	S16P SVQCL-11	ISO	16	15	170	13	-	≥21	Sol	107.5°	0.28	VCM. 1103..	8681408008694
SM08670	S20R SVQCR-11	ISO	20	18	200	15	-	≥25	Sağ	107.5°	0.49	VCM. 1103..	8681408008670
SM08700	S20R SVQCL-11	ISO	20	18	200	15	-	≥25	Sol	107.5°	0.49	VCM. 1103..	8681408008700
SM08779	S25S SVQCR-16	ISO	25	23	250	19.5	-	≥32	Sağ	107.5°	0.94	VCM. 1604..	8681408008779
SM08786	S25S SVQCL-16	ISO	25	23	250	19.5	-	≥32	Sol	107.5°	0.94	VCM. 1604..	8681408008786
SM49475	S25S SVQCR-16-S	ISO	25	23	250	19.5	-	≥32	Sağ	107.5°	0.94	VCM. 1604..	8681408049475
SM49482	S25S SVQCL-16-S	ISO	25	23	250	19.5	-	≥32	Sol	107.5°	0.94	VCM. 1604..	8681408049482
SM08793	S32T SVQCR-16	ISO	32	30	300	24	-	≥40	Sağ	107.5°	1.79	VCM. 1604..	8681408008793
SM08809	S32T SVQCL-16	ISO	32	30	300	24	-	≥40	Sol	107.5°	1.79	VCM. 1604..	8681408008809
SM08816	S40U SVQCR-16	ISO	40	37	350	30	-	≥50	Sağ	107.5°	3.25	VCM. 1604..	8681408008816
SM08823	S40U SVQCL-16	ISO	40	37	350	30	-	≥50	Sol	107.5°	3.25	VCM. 1604..	8681408008823

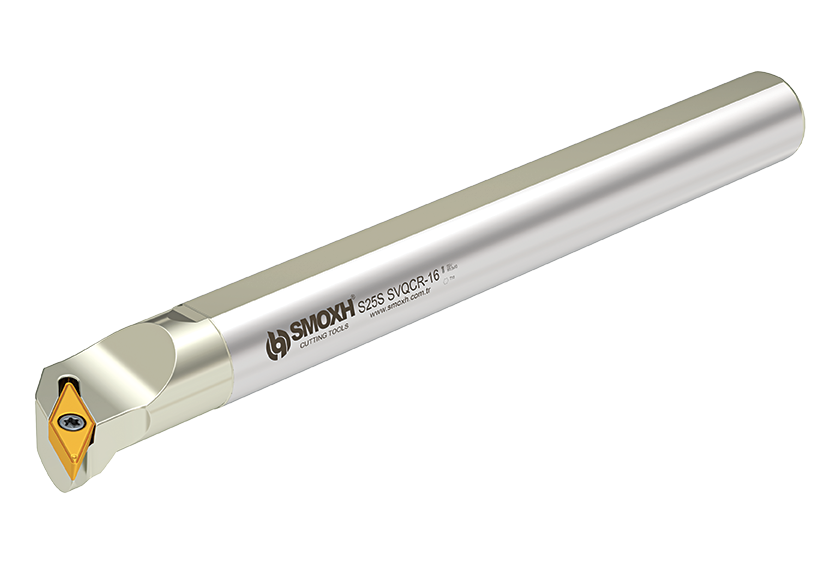

S System Internal Diameter Turning Tools - SVQCR/L (107.5)
