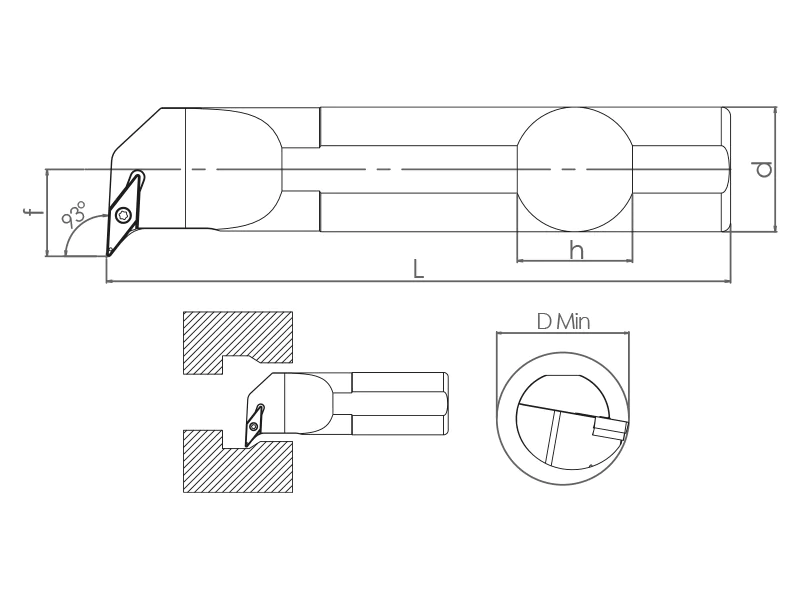

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode
	SVUCR/L (93)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM08373	S16P SVUCR-11	ISO	16	15	170	13	-	≥21	Sağ	93°	0.28	VCM. 1103..	8681408008373
SM08632	S16P SVUCL-11	ISO	16	15	170	13	-	≥21	Sol	93°	0.28	VCM. 1103..	8681408008632
SM08656	S20R SVUCR-11	ISO	20	18	200	15	-	≥25	Sağ	93°	0.49	VCM. 1103..	8681408008656
SM08663	S20R SVUCL-11	ISO	20	18	200	15	-	≥25	Sol	93°	0.49	VCM. 1103..	8681408008663
SM08717	S25S SVUCR-16	ISO	25	23	250	19.5	-	≥32	Sağ	93°	0.94	VCM. 1604..	8681408008717
SM08724	S25S SVUCL-16	ISO	25	23	250	19.5	-	≥32	Sol	93°	0.94	VCM. 1604..	8681408008724
SM39988	S25S SVUCR-16-S	ISO	25	23	250	19.5	-	≥32	Sağ	93°	0.94	VCM. 1604..	8681408039988
SM52017	S25S SVUCL-16-S	ISO	25	23	250	19.5	-	≥32	Sol	93°	0.94	VCM. 1604..	8681408052017

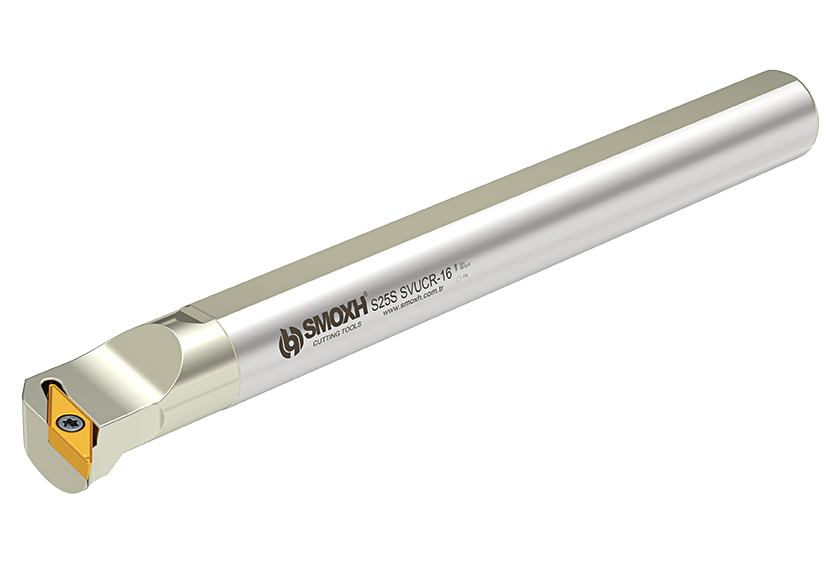

SM08731	S32T SVUCR-16	ISO	32	30	300	24	-	≥40	Sağ	93°	1.79	VCM. 1604..	8681408008731
SM08748	S32T SVUCL-16	ISO	32	30	300	24	-	≥40	Sol	93°	1.79	VCM. 1604..	8681408008748
SM08755	S40U SVUCR-16	ISO	40	37	350	30	-	≥50	Sağ	93°	3.25	VCM. 1604..	8681408008755
SM08762	S40U SVUCL-16	ISO	40	37	350	30	-	≥50	Sol	93°	3.25	VCM. 1604..	8681408008762

S System Internal Diameter Turning Tools - SVUCR/L (93)
