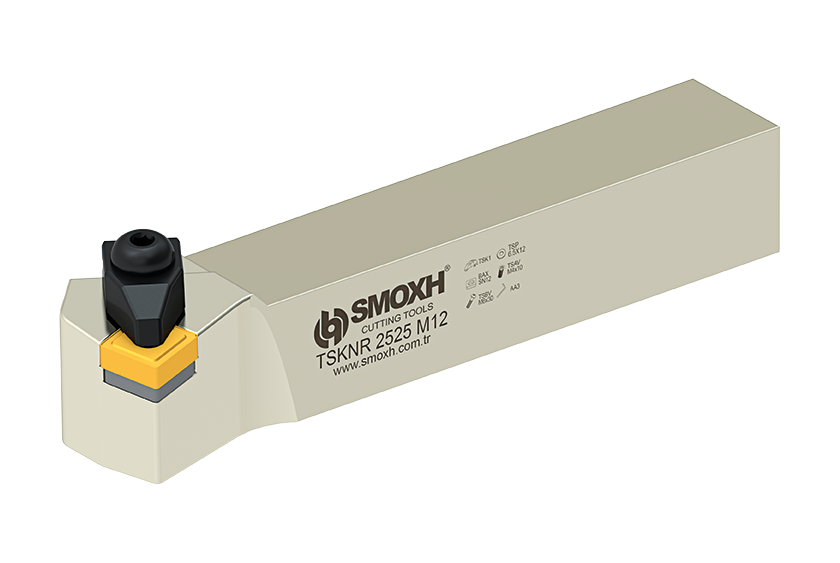

T System External Diameter Turning Tool - TSKNR/L (75)

TSKNR/L (75)

T System External Diameter Turning Tool

Product Description

Internal Coolant Turning Tools: Advantages

Internal coolant turning tools optimize the machining process by delivering coolant directly to the cutting edge.

Extends Tool Life
Improved cooling reduces wear, resulting in lower tool costs.

Improves Cutting Quality
By controlling heat, smoother surface finishes are achieved.

Increases Efficiency
Enhances chip evacuation, allowing for higher cutting speeds and reduced machining time.

Offers Environmental and Economic Benefits
Lower coolant consumption reduces waste and operational costs.

Suitable for Roughing and Semi-Finishing
Provides convenience in various machining operations.

Negative Rake Angle Design
Ensures durability under high cutting forces.

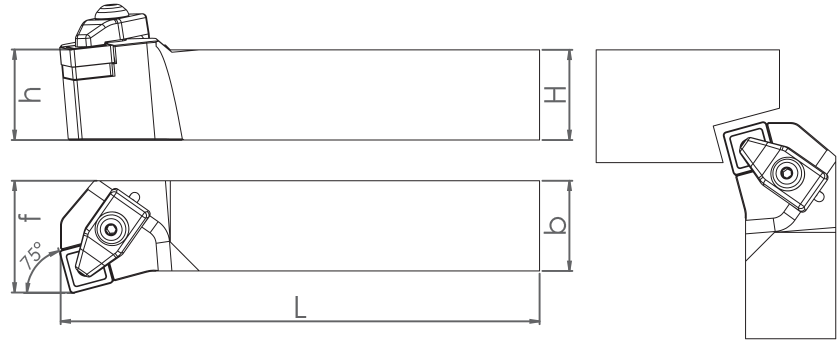

Technical Specifications

Ordering Code Item Designation Dimensions Master Insert Barcode
  TSKNR/L (75) Insert
Brand
Approach
Angle
Direction h=H b L f Weight
(Kg)
T System External Diameter Turning Tool
SM00636 TSKNR 2020 K12 ISO 75° R 20 20 125 26 0.46 SNM.1204.. 8681408000636
SM00643 TSKNL 2020 K12 ISO 75° L 20 20 125 26 0.46 SNM.1204.. 8681408000643
SM00650 TSKNR 2525 M12 ISO 75° R 25 25 150 32 0.79 SNM.1204.. 8681408000650
SM00667 TSKNL 2525 M12 ISO 75° L 25 25 150 32 0.79 SNM.1204.. 8681408000667
SM00674 TSKNR 3232 P12 ISO 75° R 32 32 170 38 1.38 SNM.1204.. 8681408000674
SM00681 TSKNL 3232 P12 ISO 75° L 32 32 170 38 1.38 SNM.1204.. 8681408000681
SM00803 TSKNR 2525 M15 ISO 75° R 25 25 150 32 0.79 SNM.1506.. 8681408000803
SM00810 TSKNL 2525 M15 ISO 75° L 25 25 150 32 0.79 SNM.1506.. 8681408000810
SM00780 TSKNR 3232 P15 ISO 75° R 32 32 170 38 1.38 SNM.1506.. 8681408000780
SM00698 TSKNL 3232 P15 ISO 75° L 32 32 170 38 1.38 SNM.1506.. 8681408000698
