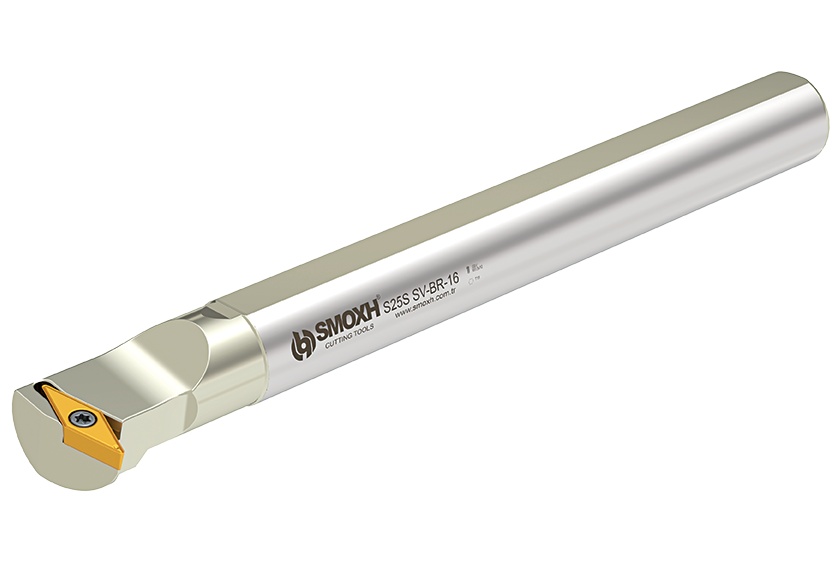

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

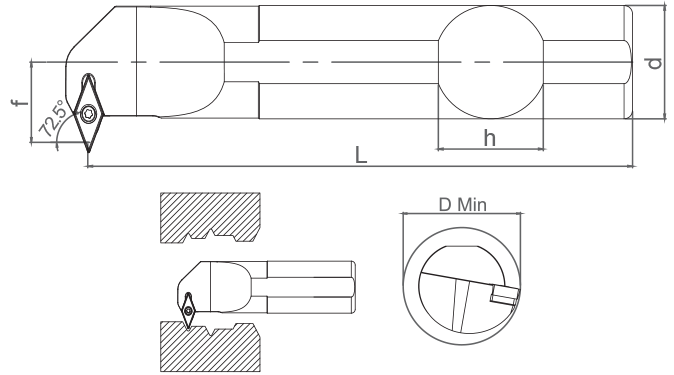

	SV-BR/L (72.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM34709	S25S SV-BR-16	ISO	25	23	250	19.5	-	≥32	Sağ	72.5°	0.94	VBM. 1604..	8681408034709
SM34716	S25S SV-BL-16	ISO	25	23	250	19.5	-	≥32	Sol	72.5°	0.94	VBM. 1604..	8681408034716
SM34723	S32T SV-BR-16	ISO	32	30	300	24	-	≥40	Sağ	72.5°	1.79	VBM. 1604..	8681408034723
SM34730	S32T SV-BL-16	ISO	32	30	300	24	-	≥40	Sol	72.5°	1.79	VBM. 1604..	8681408034730

S System Internal Diameter Turning Tools - SV-BR/L (72.5)
