S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

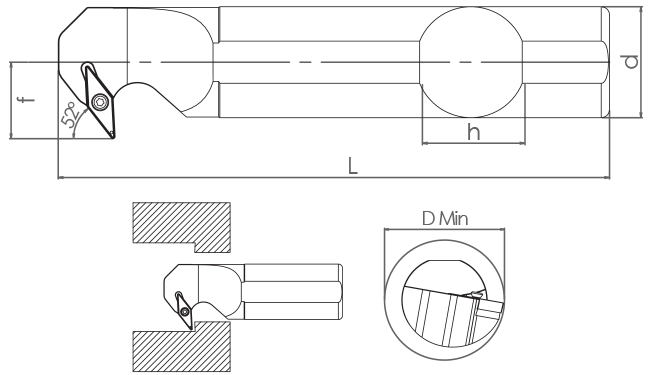

	SVXBR/L (52)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM08281	S16P SVXBR-11	ISO	16	15	170	13	-	≥21	Sağ	52°	0.28	VBM. 1103..	8681408008281
SM08335	S16P SVXBL-11	ISO	16	15	170	13	-	≥21	Sol	52°	0.28	VBM. 1103..	8681408008335
SM08311	S20R SVXBR-11	ISO	20	18	200	15	-	≥25	Sağ	52°	0.49	VBM. 1103..	8681408008311
SM08359	S20R SVXBL-11	ISO	20	18	200	15	-	≥25	Sol	52°	0.49	VBM. 1103..	8681408008359
SM08427	S25S SVXBR-16	ISO	25	23	250	19.5	-	≥32	Sağ	52°	0.94	VBM. 1604..	8681408008427
SM08489	S25S SVXBL-16	ISO	25	23	250	19.5	-	≥32	Sol	52°	0.94	VBM. 1604..	8681408008489
SM39964	S25S SVXBR-16-S	ISO	25	23	250	19.5	-	≥32	Sağ	52°	0.94	VBM. 1604..	8681408039964
SM39957	S25S SVXBL-16-S	ISO	25	23	250	19.5	-	≥32	Sol	52°	0.94	VBM. 1604..	8681408039957
SM08496	S32T SVXBR-16	ISO	32	30	300	24	-	≥40	Sağ	52°	1.79	VBM. 1604..	8681408008496
SM08557	S32T SVXBL-16	ISO	32	30	300	24	-	≥40	Sol	52°	1.79	VBM. 1604..	8681408008557
SM08526	S40U SVXBR-16	ISO	40	37	350	30	-	≥50	Sağ	52°	3.25	VBM. 1604..	8681408008526
SM08588	S40U SVXBL-16	ISO	40	37	350	30	-	≥50	Sol	52°	3.25	VBM. 1604..	8681408008588

S System Internal Diameter Turning Tools - SVXBR/L (52)
