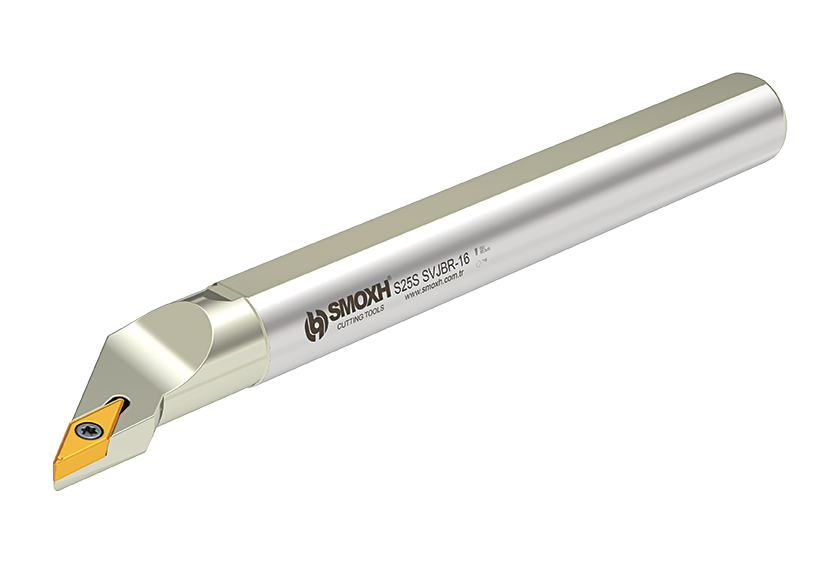

    S System Internal Diameter Turning Tools - SVJBR/L (93)

    SVJBR/L (93)

    S System Internal Diameter Turning Tools

    S System Internal Diameter Turning Tools

    Technical Specifications

    Ordering Code Item Designation Dimensions Master Insert Barcode
      SVJBR/L (93) Diamond

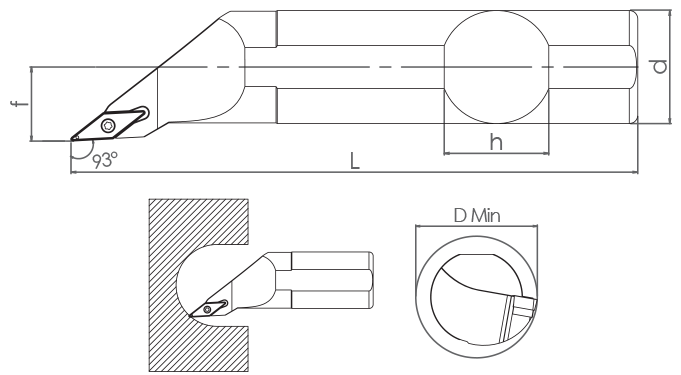

    Brand    		 d h L f L1 D Min Direction Approach
    Angle    		 Weight
    (Kg)    		 S System Internal Diameter Turning Tools
    SM08304 S16P SVQBR-11 ISO 16 15 170 13 - ≥21 Sağ 93° 0.28 VBM. 1103.. 8681408008304
    SM08366 S16P SVQBL-11 ISO 16 15 170 13 - ≥21 Sol 93° 0.28 VBM. 1103.. 8681408008366
    SM08274 S20R SVQBR-11 ISO 20 18 200 15 - ≥25 Sağ 93° 0.49 VBM. 1103.. 8681408008274
    SM08380 S20R SVQBL-11 ISO 20 18 200 15 - ≥25 Sol 93° 0.49 VBM. 1103.. 8681408008380
    SM08403 S25S SVQBR-16 ISO 25 23 250 19.5 - ≥32 Sağ 93° 0.94 VBM. 1604.. 8681408008403
    SM08434 S25S SVQBL-16 ISO 25 23 250 19.5 - ≥32 Sol 93° 0.94 VBM. 1604.. 8681408008434
    SM39926 S25S SVQBR-16-S ISO 25 23 250 19.5 - ≥32 Sağ 93° 0.94 VBM. 1604.. 8681408039926
    SM52055 S25S SVQBL-16-S ISO 25 23 250 19.5 - ≥32 Sol 93° 0.94 VBM. 1604.. 8681408052055
    SM08465 S32T SVQBR-16 ISO 32 30 300 24 - ≥40 Sağ 93° 1.79 VBM. 1604.. 8681408008465
    SM08458 S32T SVQBL-16 ISO 32 30 300 24 - ≥40 Sol 93° 1.79 VBM. 1604.. 8681408008458
    SM08595 S40U SVQBR-16 ISO 40 37 350 30 - ≥50 Sağ 93° 3.25 VBM. 1604.. 8681408008595
    SM08601 S40U SVQBL-16 ISO 40 37 350 30 - ≥50 Sol 93° 3.25 VBM. 1604.. 8681408008601
    SM08533 S25S SVJBR-16 ISO 25 23 250 19.5 - ≥32 Sağ 93° 0.94 VBM. 1604.. 8681408008533
    SM08540 S25S SVJBL-16 ISO 25 23 250 19.5 - ≥32 Sol 93° 0.94 VBM. 1604.. 8681408008540
    SM49505 S25S SVJBR-16-S ISO 25 23 250 19.5 - ≥32 Sağ 93° 0.94 VBM. 1604.. 8681408049505
    SM49499 S25S SVJBL-16-S ISO 25 23 250 19.5 - ≥32 Sol 93° 0.94 VBM. 1604.. 8681408049499
    SM08564 S32T SVJBR-16 ISO 32 30 300 24 - ≥40 Sağ 93° 1.79 VBM. 1604.. 8681408008564
    SM08571 S32T SVJBL-16 ISO 32 30 300 24 - ≥40 Sol 93° 1.79 VBM. 1604.. 8681408008571
    SM08618 S40U SVJBR-16 ISO 40 37 350 30 - ≥50 Sağ 93° 3.25 VBM. 1604.. 8681408008618
    SM08625 S40U SVJBL-16 ISO 40 37 350 30 - ≥50 Sol 93° 3.25 VBM. 1604.. 8681408008625
