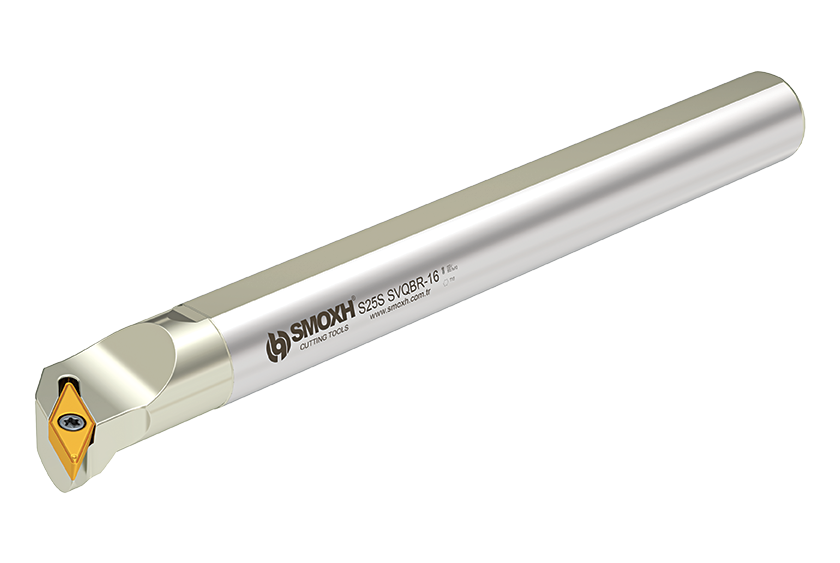

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

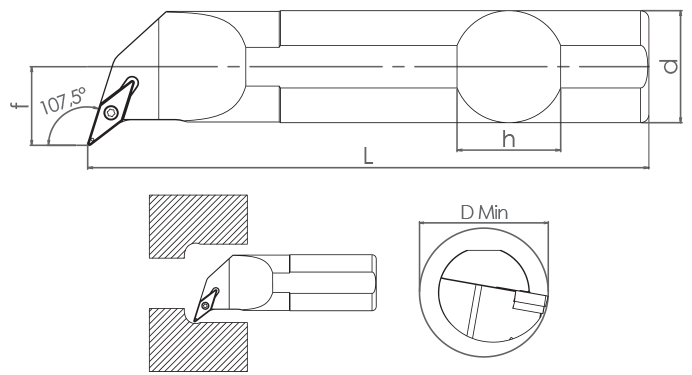

	SVQBR/L (107.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM08304	S16P SVQBR-11	ISO	16	15	170	13	-	≥21	Sağ	107.5°	0.28	VBM. 1103..	8681408008304
SM08366	S16P SVQBL-11	ISO	16	15	170	13	-	≥21	Sol	107.5°	0.28	VBM. 1103..	8681408008366
SM08274	S20R SVQBR-11	ISO	20	18	200	15	-	≥25	Sağ	107.5°	0.49	VBM. 1103..	8681408008274
SM08380	S20R SVQBL-11	ISO	20	18	200	15	-	≥25	Sol	107.5°	0.49	VBM. 1103..	8681408008380
SM08403	S25S SVQBR-16	ISO	25	23	250	19.5	-	≥32	Sağ	107.5°	0.94	VBM. 1604..	8681408008403
SM08434	S25S SVQBL-16	ISO	25	23	250	19.5	-	≥32	Sol	107.5°	0.94	VBM. 1604..	8681408008434
SM39926	S25S SVQBR-16-S	ISO	25	23	250	19.5	-	≥32	Sağ	107.5°	0.94	VBM. 1604..	8681408039926
SM52055	S25S SVQBL-16-S	ISO	25	23	250	19.5	-	≥32	Sol	107.5°	0.94	VBM. 1604..	8681408052055
SM08465	S32T SVQBR-16	ISO	32	30	300	24	-	≥40	Sağ	107.5°	1.79	VBM. 1604..	8681408008465
SM08458	S32T SVQBL-16	ISO	32	30	300	24	-	≥40	Sol	107.5°	1.79	VBM. 1604..	8681408008458
SM08595	S40U SVQBR-16	ISO	40	37	350	30	-	≥50	Sağ	107.5°	3.25	VBM. 1604..	8681408008595
SM08601	S40U SVQBL-16	ISO	40	37	350	30	-	≥50	Sol	107.5°	3.25	VBM. 1604..	8681408008601

S System Internal Diameter Turning Tools - SVQBR/L (107.5)
