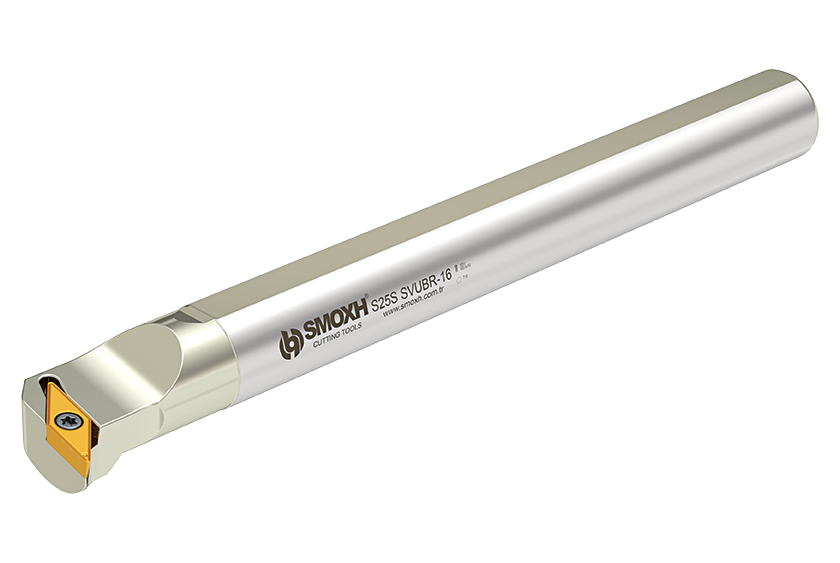

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

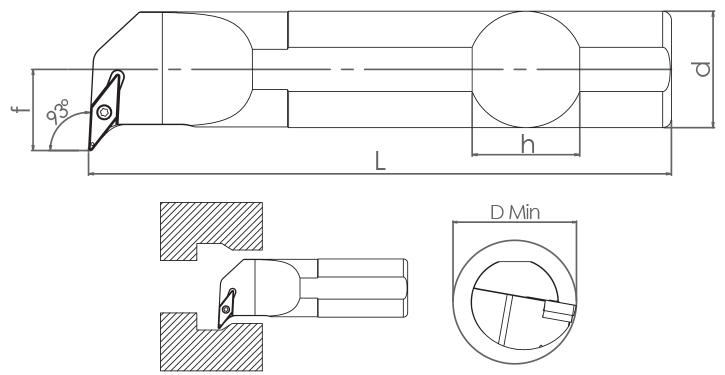

	SVUBR/L (93)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM08298	S16P SVUBR-11	ISO	16	15	170	13	-	≥21	Sağ	93°	0.28	VBM. 1103..	8681408008298
SM08328	S16P SVUBL-11	ISO	16	15	170	13	-	≥21	Sol	93°	0.28	VBM. 1103..	8681408008328
SM08267	S20R SVUBR-11	ISO	20	18	200	15	-	≥25	Sağ	93°	0.49	VBM. 1103..	8681408008267
SM08342	S20R SVUBL-11	ISO	20	18	200	15	-	≥25	Sol	93°	0.49	VBM. 1103..	8681408008342
SM08397	S25S SVUBR-16	ISO	25	23	250	19.5	-	≥32	Sağ	93°	0.94	VBM. 1604..	8681408008397
SM08441	S25S SVUBL-16	ISO	25	23	250	19.5	-	≥32	Sol	93°	0.94	VBM. 1604..	8681408008441
SM39933	S25S SVUBR-16-S	ISO	25	23	250	19.5	-	≥32	Sağ	93°	0.94	VBM. 1604..	8681408039933
SM39971	S25S SVUBL-16-S	ISO	25	23	250	19.5	-	≥32	Sol	93°	0.94	VBM. 1604..	8681408039971
SM08410	S32T SVUBR-16	ISO	32	30	300	24	-	≥40	Sağ	93°	1.79	VBM. 1604..	8681408008410
SM08472	S32T SVUBL-16	ISO	32	30	300	24	-	≥40	Sol	93°	1.79	VBM. 1604..	8681408008472
SM08502	S40U SVUBR-16	ISO	40	37	350	30	-	≥50	Sağ	93°	3.25	VBM. 1604..	8681408008502
SM08519	S40U SVUBL-16	ISO	40	37	350	30	-	≥50	Sol	93°	3.25	VBM. 1604..	8681408008519

S System Internal Diameter Turning Tools - SVUBR/L (93)
