S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

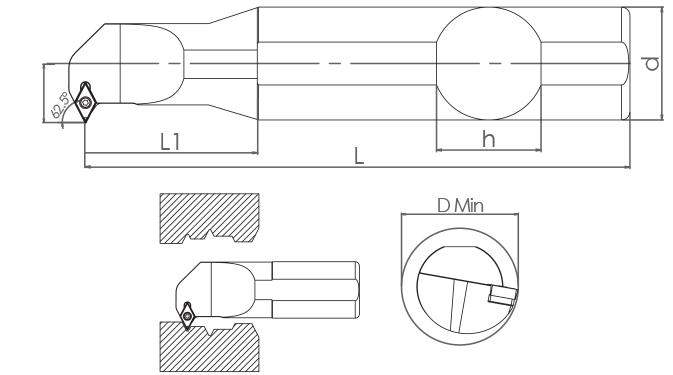

	SD-CR/L (62.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Weight (Kg)	Approach Angle
SM42780	S10K SD-CR-07	ISO	10	9	125	8	-	≥14	Sağ	0.1	62.5°	DCM. 0702..	8681408042780
SM42797	S10K SD-CL-07	ISO	10	9	125	8	-	≥14	Sol	0.1	62.5°	DCM. 0702..	8681408042797
SM06812	S12K SD-CR-07	ISO	12	11	125	11	-	≥17	Sağ	0.13	62.5°	DCM. 0702..	8681408006812
SM06782	S12K SD-CL-07	ISO	12	11	125	11	-	≥17	Sol	0.13	62.5°	DCM. 0702..	8681408006782
SM06881	S16x12M SD-CR-07	ISO	16	15	150	11	35	≥17	Sağ	0.25	62.5°	DCM. 0702..	8681408006881
SM07000	S16x12M SD-CL-07	ISO	16	15	150	11	35	≥17	Sol	0.25	62.5°	DCM. 0702..	8681408007000
SM07024	S16P SD-CR-11	ISO	16	15	170	13	-	≥22	Sağ	0.28	62.5°	DCM. 11T3..	8681408007024
SM07062	S16P SD-CL-11	ISO	16	15	170	13	-	≥22	Sol	0.28	62.5°	DCM. 11T3..	8681408007062
SM07079	S20R SD-CR-11	ISO	20	18	200	15	-	≥25	Sağ	0.49	62.5°	DCM. 11T3..	8681408007079
SM07123	S20R SD-CL-11	ISO	20	18	200	15	-	≥25	Sol	0.49	62.5°	DCM. 11T3..	8681408007123
SM07154	S25S SD-CR-11	ISO	25	23	250	19.5	-	≥32	Sağ	0.94	62.5°	DCM. 11T3..	8681408007154
SM07185	S25S SD-CL-11	ISO	25	23	250	19.5	-	≥32	Sol	0.94	62.5°	DCM. 11T3..	8681408007185

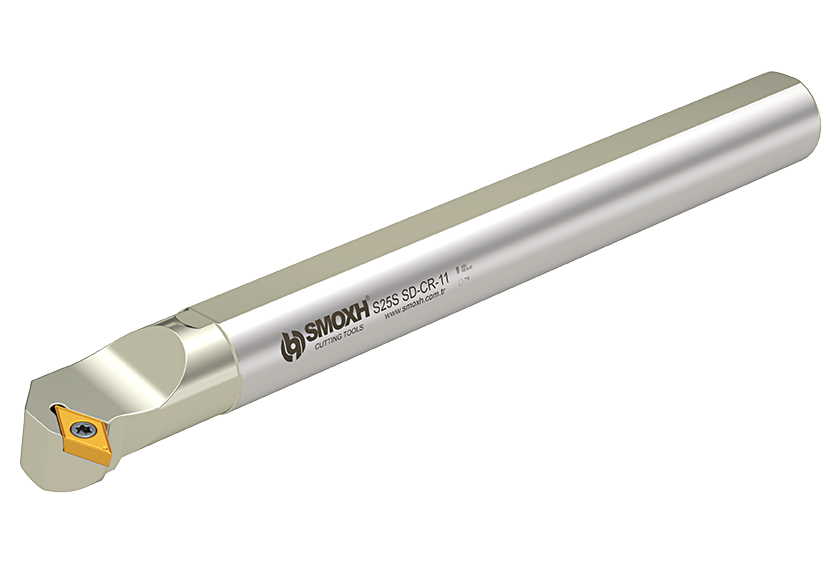

SM07215	S32T SD-CR-11	ISO	32	30	300	24	-	≥40	Sağ	1.79	62.5°	DCM. 11T3..	8681408007215
SM07222	S32T SD-CL-11	ISO	32	30	300	24	-	≥40	Sol	1.79	62.5°	DCM. 11T3..	8681408007222
SM07451	S40U SD-CR-11	ISO	40	37	350	30	-	≥50	Sağ	3.25	62.5°	DCM. 11T3..	8681408007451
SM07468	S40U SD-CL-11	ISO	40	37	350	30	-	≥50	Sol	3.25	62.5°	DCM. 11T3..	8681408007468

S System Internal Diameter Turning Tools - SD-CR/L (62.5)
