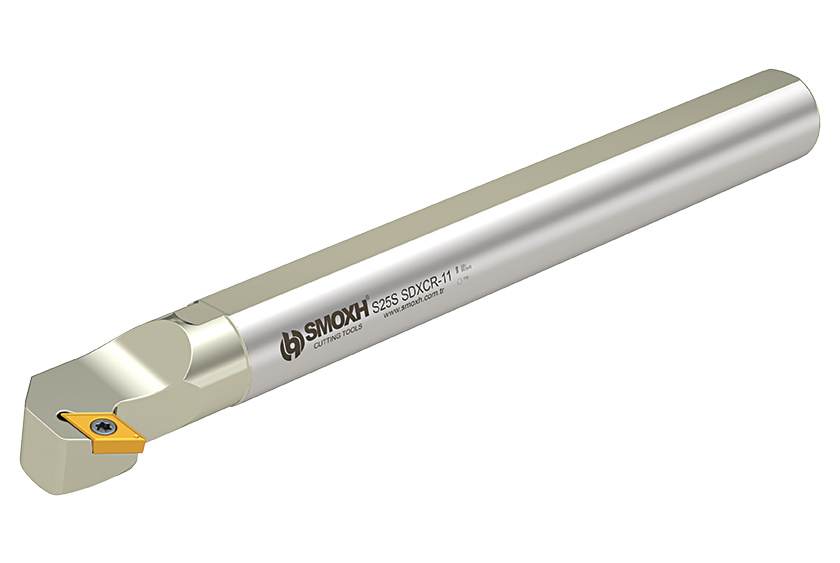

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

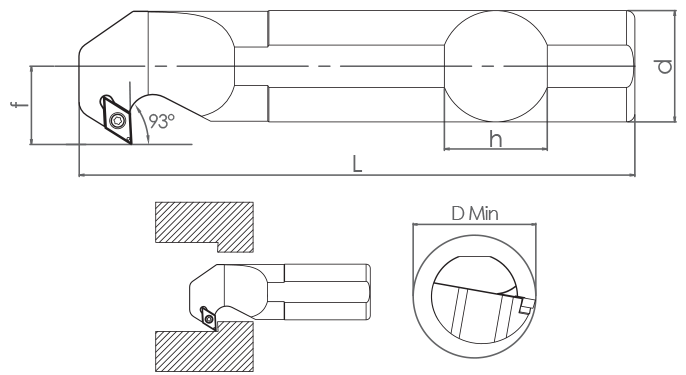

	SDXCR/L (93)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM06768	S12K SDXCR-07	ISO	12	11	125	11	-	≥17	Sağ	93°	0.13	DCM. 0702..	8681408006768
SM06997	S12K SDXCL-07	ISO	12	11	125	11	-	≥17	Sol	93°	0.13	DCM. 0702..	8681408006997
SM07048	S16P SDXCR-11	ISO	16	15	170	13	-	≥21	Sağ	93°	0.28	DCM. 11T3..	8681408007048
SM07307	S16P SDXCL-11	ISO	16	15	170	13	-	≥21	Sol	93°	0.28	DCM. 11T3..	8681408007307
SM07109	S20R SDXCR-11	ISO	20	18	200	15	-	≥25	Sağ	93°	0.49	DCM. 11T3..	8681408007109
SM07321	S20R SDXCL-11	ISO	20	18	200	15	-	≥25	Sol	93°	0.49	DCM. 11T3..	8681408007321
SM07260	S25S SDXCR-11	ISO	25	23	250	19.5	-	≥32	Sağ	93°	0.94	DCM. 11T3..	8681408007260
SM07420	S25S SDXCL-11	ISO	25	23	250	19.5	-	≥32	Sol	93°	0.94	DCM. 11T3..	8681408007420
SM07284	S32T SDXCR-11	ISO	32	30	300	24	-	≥40	Sağ	93°	1.79	DCM. 11T3..	8681408007284
SM07444	S32T SDXCL-11	ISO	32	30	300	24	-	≥40	Sol	93°	1.79	DCM. 11T3..	8681408007444
SM07499	S40U SDXCR-11	ISO	40	37	350	30	-	≥50	Sağ	93°	3.25	DCM. 11T3..	8681408007499
SM07505	S40U SDXCL-11	ISO	40	37	350	30	-	≥50	Sol	93°	3.25	DCM. 11T3..	8681408007505

S System Internal Diameter Turning Tools - SDXCR/L (93)
