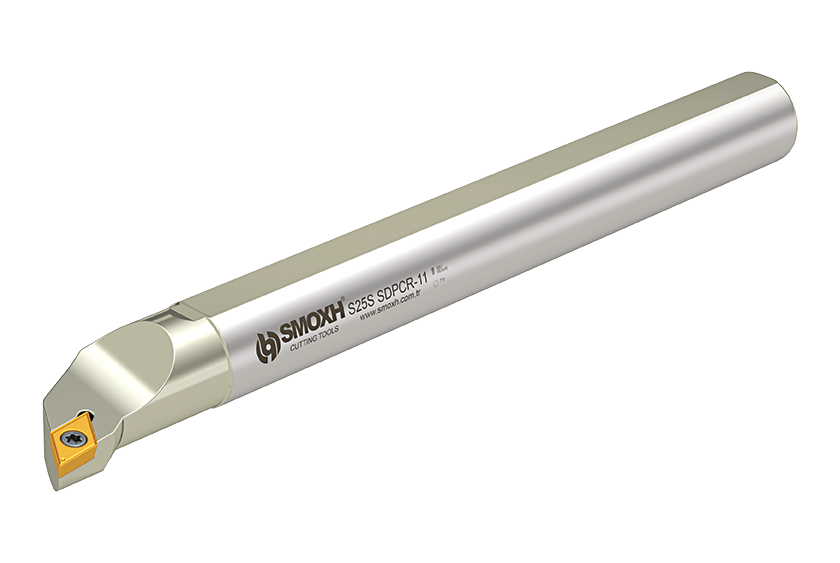

S System Internal Diameter Turning Tools

Ordering Code	Item Designation	Dimensions										Master Insert	Barcode

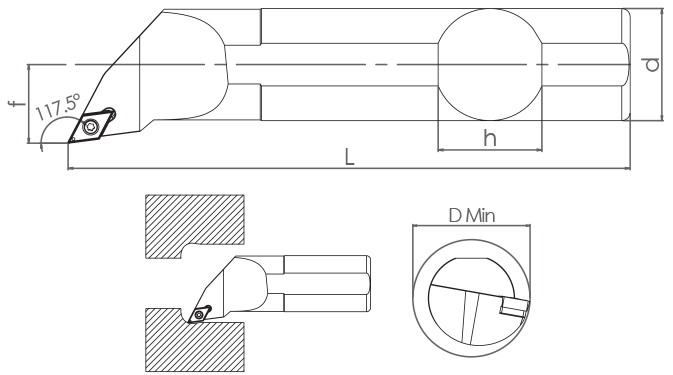

	SDPCR/L (117.5)	Diamond Brand	d	h	L	f	L1	D Min	Direction	Approach Angle	Weight (Kg)
SM06829	S10K SDPCR-07	ISO	10	9	125	8	-	≥13	Sağ	117.5°	0.1	DCM. 0702..	8681408006829
SM06973	S10K SDPCL-07	ISO	10	9	125	8	-	≥13	Sol	117.5°	0.1	DCM. 0702..	8681408006973
SM06843	S12K SDPCR-07	ISO	12	11	125	10	-	≥16	Sağ	117.5°	0.13	DCM. 0702..	8681408006843
SM06980	S12K SDPCL-07	ISO	12	11	125	10	-	≥16	Sol	117.5°	0.13	DCM. 0702..	8681408006980
SM07314	S16P SDPCR-11	ISO	16	15	170	13	-	≥21	Sağ	117.5°	0.28	DCM. 11T3..	8681408007314
SM07390	S16P SDPCL-11	ISO	16	15	170	13	-	≥21	Sol	117.5°	0.28	DCM. 11T3..	8681408007390
SM07338	S20R SDPCR-11	ISO	20	18	200	15	-	≥25	Sağ	117.5°	0.49	DCM. 11T3..	8681408007338
SM07406	S20R SDPCL-11	ISO	20	18	200	15	-	≥25	Sol	117.5°	0.49	DCM. 11T3..	8681408007406
SM07345	S25S SDPCR-11	ISO	25	23	250	19.5	-	≥32	Sağ	117.5°	0.94	DCM. 11T3..	8681408007345
SM07413	S25S SDPCL-11	ISO	25	23	250	19.5	-	≥32	Sol	117.5°	0.94	DCM. 11T3..	8681408007413
SM52086	S25S SDPCR-11-S	ISO	25	23	250	19.5	-	≥32	Sağ	117.5°	0.94	DCM. 11T3..	8681408052086
SM52093	S25S SDPCL-11-S	ISO	25	23	250	19.5	-	≥32	Sol	117.5°	0.94	DCM. 11T3..	8681408052093
SM07277	S32T SDPCR-11	ISO	32	30	300	24	-	≥40	Sağ	117.5°	1.79	DCM. 11T3..	8681408007277
SM07437	S32T SDPCL-11	ISO	32	30	300	24	-	≥40	Sol	117.5°	1.79	DCM. 11T3..	8681408007437
SM07475	S40U SDPCR-11	ISO	40	37	350	30	-	≥50	Sağ	117.5°	3.25	DCM. 11T3..	8681408007475
SM07482	S40U SDPCL-11	ISO	40	37	350	30	-	≥50	Sol	117.5°	3.25	DCM. 11T3..	8681408007482

S System Internal Diameter Turning Tools - SDPCR/L (117.5)
