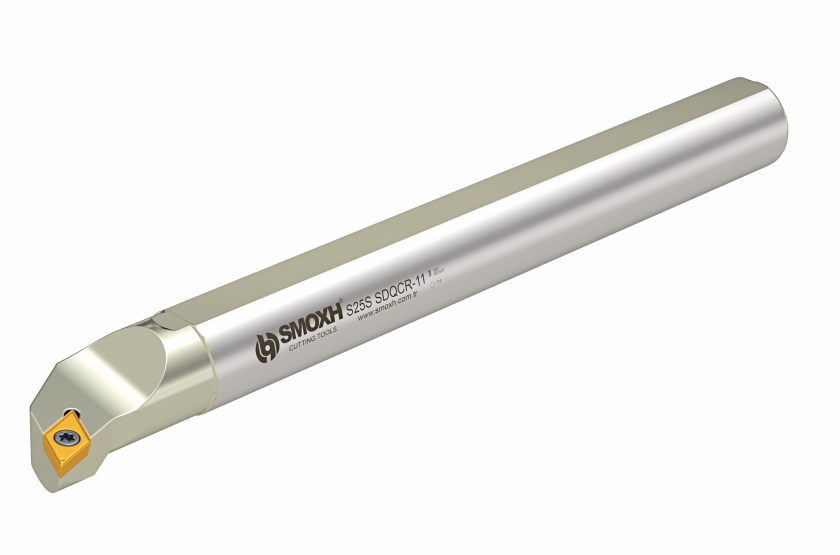

S System Internal Diameter Turning Tools - SDQCR/L (107.5)
Home
Products
Internal Diameter Turning Tools
S System Internal Diameter Turning Tools
S System Internal Diameter Turning Tools
SDQCR/L (107.5)
S System Internal Diameter Turning Tools
Technical
Specifications
Ordering Code
Item Designation

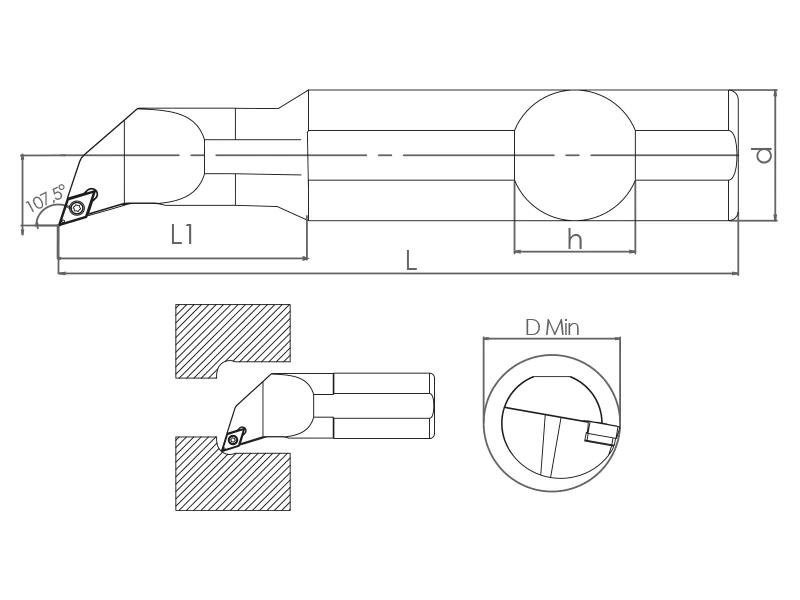

Dimensions
Master Insert
Barcode
SDQCR/L (107.5)
DiamondBrand
d
h
L
f
L1
D Min
Direction
ApproachAngle
Weight(Kg)
SM06720
S10K SDQCR-07
ISO
10
9
125
8
-
≥13
Sağ
107.5°
0.1
DCM. 0702..
8681408006720
SM06737
S10K SDQCL-07
ISO
10
9
125
8
-
≥13
Sol
107.5°
0.1
DCM. 0702..
8681408006737
SM06751
S12K SDQCR-07
ISO
12
11
125
10
-
≥16
Sağ
107.5°
0.13
DCM. 0702..
8681408006751
SM06799
S12K SDQCL-07
ISO
12
11
125
10
-
≥16
Sol
107.5°
0.13
DCM. 0702..
8681408006799
SM06867
S16x10M SDQCR-07
ISO
16
15
150
8
35
≥13
Sağ
107.5°
0.23
DCM. 0702..
8681408006867
SM06942
S16x10M SDQCL-07
ISO
16
15
150
8
35
≥13
Sol
107.5°
0.23
DCM. 0702..
8681408006942
SM06898
S16x12M SDQCR-07
ISO
16
15
150
10
35
≥16
Sağ
107.5°
0.25
DCM. 0702..
8681408006898
SM06966
S16x12M SDQCL-07
ISO
16
15
150
10
35
≥16
Sol
107.5°
0.25
DCM. 0702..
8681408006966
SM06911
S16P SDQCR-07
ISO
16
15
170
13
-
≥21
Sağ
107.5°
0.28
DCM. 0702..
8681408006911
SM06928
S16P SDQCL-07
ISO
16
15
170
13
-
≥21
Sol
107.5°
0.28
DCM. 0702..
8681408006928
SM49437
S20R SDQCR-07
ISO
20
18
200
15
-
≥25
Sağ
107.5°
0.49
DCM. 0702..
8681408049437
SM49444
S20R SDQCL-07
ISO
20
18
200
15
-
≥25
Sol
107.5°
0.49
DCM. 0702..
8681408049444
SM07031
S16P SDQCR-11
ISO
16
15
170
13
-
≥21
Sağ
107.5°
0.28
DCM. 11T3..
8681408007031
SM07291
S16P SDQCL-11
ISO
16
15
170
13
-
≥21
Sol
107.5°
0.28
DCM. 11T3..
8681408007291
SM07093
S20R SDQCR-11
ISO
20
18
200
15
-
≥25
Sağ
107.5°
0.49
DCM. 11T3..
8681408007093
SM07130
S20R SDQCL-11
ISO
20
18
200
15
-
≥25
Sol
107.5°
0.49
DCM. 11T3..
8681408007130
SM07161
S25S SDQCR-11
ISO
25
23
250
19.5
-
≥32
Sağ
107.5°
0.94
DCM. 11T3..
8681408007161
SM07192
S25S SDQCL-11
ISO
25
23
250
19.5
-
≥32
Sol
107.5°
0.94
DCM. 11T3..
8681408007192
SM39421
S25S SDQCR-11-S
ISO
25
23
250
19.5
-
≥32
Sağ
107.5°
0.94
DCM. 11T3..
8681408039421
SM39414
S25S SDQCL-11-S
ISO
25
23
250
19.5
-
≥32
Sol
107.5°
0.94
DCM. 11T3..
8681408039414
SM07239
S32T SDQCR-11
ISO
32
30
300
24
-
≥40
Sağ
107.5°
1.79
DCM. 11T3..
8681408007239
SM07246
S32T SDQCL-11
ISO
32
30
300
24
-
≥40
Sol
107.5°
1.79
DCM. 11T3..
8681408007246
SM07376
S40U SDQCR-11
ISO
40
37
350
30
-
≥50
Sağ
107.5°
3.25
DCM. 11T3..
8681408007376
SM07383
S40U SDQCL-11
ISO
40
37
350
30
-
≥50
Sol
107.5°
3.25
DCM. 11T3..
8681408007383
